Sony HT-NT5 Startup Manual

4-585-894-14(1)

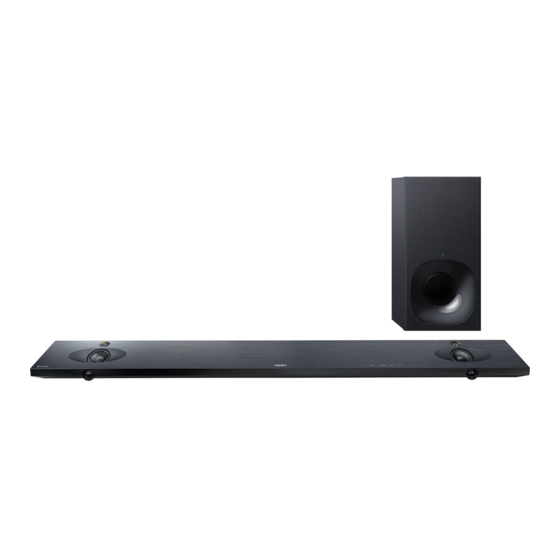

Sound Bar
Startup Guide
Operating Instructions
Refer to the Operating Instructions (separate
document) for the network settings, the NFC
function, and other functions.
HT-NT5
1
Locating the installation position
Subwoofer
Note
• Do not place magnetic cards on the system or near the system.
• Do not place metal objects other than a TV around the system. Wireless functions may become unstable.
Supplied accessories
Remote control (1) R03 (size AAA) batteries (2)
Wall mounting brackets (2) Grille frame (1)
Screws (2)
Grille frame support hook (2)
Operating Instructions (1) Startup guide (this document) (1)
About the operation method of the system
Connect this system and the TV with the HDMI cable (supplied) to display the operation screen of
the system on the TV.
To mount the Bar Speaker on a wall
Refer to "Mounting the Unit on a Wall" in the Operating Instructions (separate document).
Bar Speaker
To attach the grille frame
Refer to "Attaching the Grille Frame" in the Operating Instructions (separate document).
2
Connecting with a TV and other devices
HDMI cable (4K 60p 18Gbps
compatible) (1)
Blu-ray Disc™ player, cable
box or satellite box, etc.
: Video signals
: Audio signals

Connect devices such as a Blu-ray Disc player, cable box, or satellite box to any of the HDMI IN jacks (HDMI1/2/3) on the Bar Speaker.
When devices such as a Blu-ray Disc player, cable box, or satellite box are currently connected to a TV, disconnect them from the TV and then connect them to the Bar Speaker to reproduce
the high quality surround sound of Dolby TrueHD, DTS-HD, DTS.
To enjoy images in 4K/60p, usage of the Premium High Speed HDMI cable(s) with Ethernet is recommended. For details, refer to "Supported Input Video Formats" in the Operating
Instructions (separate document).
 Connect a TV to the HDMI OUT jack on the Bar Speaker. If the TV is not compatible with ARC, also connect the TV to the TV IN OPTICAL jack on the Bar Speaker.
Tip
• The Standby Through function allows you to output HDMI signals to the TV even when the system is in standby mode.
Set the settings as follows; Press HOME -
• To enjoy copy right-protected 4K content, refer to "Connection for Viewing Copyright-protected 4K Content" in the Operating Instructions (separate document).
Note
• Make sure that the cables are firmly inserted.
3
Setting up the remote control
Is the HDMI IN jack on your TV labeled "ARC" ?
YES
HDMI cable Optical digital cable
(supplied) (not supplied)
HDMI cable
(not supplied)
Blu-ray Disc player, cable
box or satellite box, etc.
: Video signals
: Audio signals
[Setup] - [System Settings] - [HDMI Settings] - [Standby Through], then select [Auto] or [On].
NO
HDMI cable
(supplied)
HDMI cable
(not supplied)
Continued on back page
