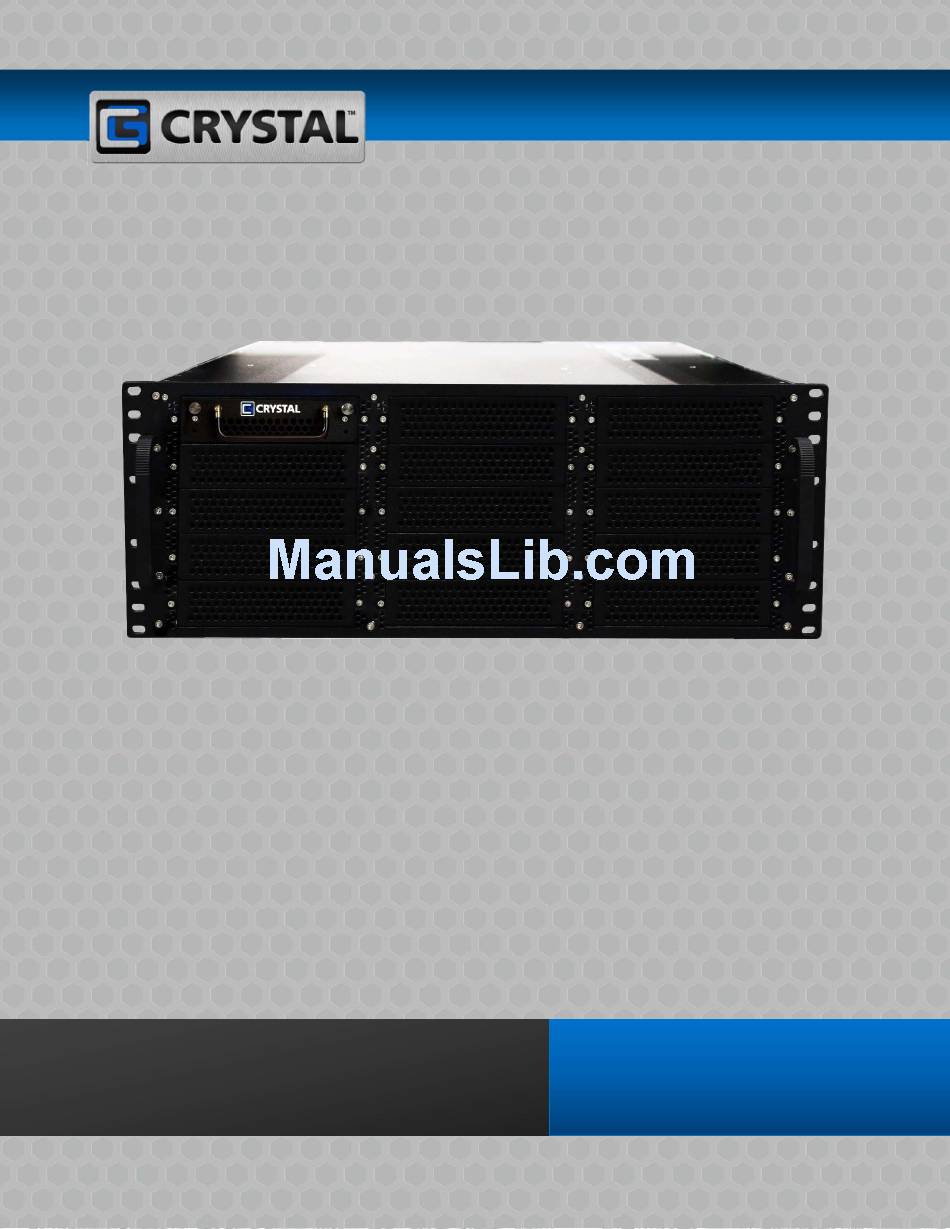

- Page 1 RS4715/RS4715L24 Rugged Server User Guide (X8) The most trusted provider for operational, deployable, and high reliability computing applications. CRYSTAL GROUP INC. ISO 9001:2008 & AS9100C:2009 CERTIFIED QMS ©2015 BY CRYSTAL GROUP INC. ALL RIGHTS RESERVED. DOC-00229 REV. C...
-
Page 3: Table Of Contents
Rack Mounting Precautions ........................10 Installing the Product in an Equipment Rack ..................11 D. Operating the Product ......................15 Connecting to a Power Source ........................ 15 Powering the Server On .......................... 15 RS4715/RS4715L24 (X8) User Guide Page of 28... - Page 4 Expansion/Riser Card Removal and Replacement .................. 19 Hard Drive Removal and Replacement ....................21 Memory Removal and Replacement ....................... 22 F. Troubleshooting ........................24 Available Warranty ........................25 Legal Information .......................... 26 Disclaimers ............................ 27 Certifications and Licenses......................27 RS4715/RS4715L24 (X8) User Guide Page of 28...
-
Page 5: We Thank You
RS4715/RS4715L24 (X8) We Thank You! From all of us at Crystal Group Inc., THANK YOU for your purchase of the RS4715/RS4715L24. Our customers are the lifeline that keeps Crystal going. That is why it is extremely important to us that our customers are 100% satisfied with their product choice. -
Page 6: Safety
A note indicates important information that helps make better use of the equipment. WARNING A warning indicates a potential for property damage, personal injury, or death. CAUTION Caution indicates potential damage to hardware or loss of data if instructions are not followed. RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 7: Handling Precautions
The following applies to any battery that might be on any board installed in the RS4715/RS4715L24 equipment: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the m RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 8: Contact Information
After hours messaging service is available with a less than 30-minutes response time. Within the United States: 800-378-1636 International Number: 1+319-378-1636 Email Address: support@crystalrugged.com Request a Form Under Tech Support: http://www.crystalrugged.com For Up-to-the-minute Crystal Products Information: http://www.crystalrugged.com RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 9: Product Information
RS4715/RS4715L24 (X8) B. Product Information Overview The Crystal RS4715/RS4715L24 is a compact four rack unit (R/U) computer in a 7 4U) high by 17.75 wide 15) and (RS4715L24) deep chassis that is designed for use rack mount enclosure (see section... - Page 10 Fixed Mount, front and rear Option 3 Jonathon Rails Power Supply Options RS4715 Option 1 (standard) 120/240VAC w/PFC 600W Option 2 120/240VAC 1+1 W/PFC RS4715L24 Option 1 120/240 VAC 1+1 w/PFC 1200W Option 2 585W, 18-36VDC RS4715/RS4715L24 (X8) User Guide Page of 28...
- Page 11 For a complete list of Military Standards visit the Crystal Group website at: http://www.crystalrugged.com Commercial Standards Commercial standards are based on the National Electric Code (NFPA70- National Fire Protection Association). Please visit the following link to learn more about the National Electric Code standards: http://www.nfpa.org RS4715/RS4715L24 (X8) User Guide Page of 28...
-
Page 12: Installing The Product
RS4715/RS4715L24 (X8) C. Installing the Product Grounding AC Version - to ensure a good earth ground, the RS4715/RS4715L24 should be used with a UL-listed three-conductor power cord connected to a three-conductor grounded power source. DC Version - input installations - use only approved copper connectors. -
Page 13: Installing The Product In An Equipment Rack
Fixed Mounting Brackets Parts List ITEM DESCRIPTION MOUNTING EAR, EXTENDED SLOT SCREW, 8-32 X 0.375", 82D PHL FH, SS SCREW, PHIL TRUSS HEAD 10-32 X 0.75" SCREW, PHIL TRUSS HEAD 10- Figure 1. Fixed Mounting Brackets RS4715/RS4715L24 (X8) User Guide Page of 28... - Page 14 FRONT MOUNTING EAR, SLIDE REAR MOUNTING EAR, SLIDE GUIDEBAR, T-SLOT SLIDE SCREW, PHIL TRUSS HEAD 10- SCREW, PHIL TRUSS HEAD 10- SCREW, 8- Figure 2. Crystal Slides Not all chassis support Crystal Slides RS4715/RS4715L24 (X8) User Guide Page of 28...
- Page 15 (s 6, 7 in Figure 3). 9. To secure the server when transporting or when extension of server is not necessary, screw two 10- Figure 3). RS4715/RS4715L24 (X8) User Guide Page of 28...
- Page 16 SCREW ACCESS HOLE (1 ON EACH RAIL) LOCK MECHANISM (1 ON EACH RAIL) LOCK MECHANISM (2 ON EACH RAIL) FOUR HOLES (2 ROWS OF 2- 4 ON EACH RAIL) Figure 3. Jonathan Rails RS4715/RS4715L24 (X8) User Guide Page of 28...
-
Page 17: Operating The Product
RS4715/RS4715L24 (X8) D. Operating the Product If the RS4715/RS4715L24 is part of a rack configuration, refer to the rack guide for more information on connecting to a power source. Connecting to a Power Source Please see Section C - Installing the Product on page 10 for more information. -
Page 18: Maintaining The Product
6. Chassis Access Removing the Cover 1. Make sure the RS4715/RS4715L24 is powered off and the unit is disconnected from the power source. 2. Remove the screws connecting the top cover to the chassis using a Phillips screw driver. -
Page 19: Chassis Views
RS4715/RS4715L24 (X8) Chassis Views: Figure 4. Front View RS4715/RS4715L24 Figure 5. Rear View RS4715/RS4715L24 The images above may not depict the product received. RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 20: Input/Output (I/O) Ports
COM Port 1 (Turquoise) VGA (Blue) Gigabit LAN 1 Gigabit LAN 2 For detailed information about the X8 motherboard option included in the product, please review the motherboard guide at the following link: X8DTL-3F X8DTH-6F RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 21: Expansion/Riser Card Removal And Replacement
Removing and Replacing the Plug-in Expansion/Riser Card Disconnect power source to prevent injury. Installing a plug-in expansion/riser card requires opening the RS4715/RS4715L24 cover, removing the card cage, inserting the card into the motherboard, replacing the card cage, and disconnecting and reconnecting the appropriate connectors. - Page 22 RS4715/RS4715L24 (X8) 9. Replace chassis cover. CARD CAGE CARD CAGE EXPANSION CARD SLOTS RETENTION BAR SCREW Figure 7. Expansion/Riser Card Installation The image above may not depict the product received. RS4715/RS4715L24 (X8) User Guide Page of 28...
-
Page 23: Hard Drive Removal And Replacement
7. Tighten thumbscrews to secure the drive. 8. Reapply power to the server, rebuilding any RAID arrays as necessary. THUMBSCREW Figure 8. Drive Removal and Replacement The image above may not depict the product received. RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 24: Memory Removal And Replacement
5. Press the DIMM into its slot evenly on both ends until it clicks into place. The DIMM release levers will snap into place. 6. The DIMM is properly seated when the release levers have fully engaged. RS4715/RS4715L24 (X8) User Guide Page of 28... - Page 25 RS4715/RS4715L24 (X8) Figure 9. Installing DIMM RS4715/RS4715L24 (X8) User Guide Page of 28...
-
Page 26: Troubleshooting
6. Before calling, please have the following information available to help expedite assistance: 1. Unit serial number 2. Brief description of the problem 3. Brief explanation of the steps already taken to isolate and resolve the problem RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 27: Available Warranty
LIABILITY, ANY DELAY IN MANUFACTURE OR DELIVERY OF EQUIPMENT OR PRODUCT, OR FOR ANY FAILURE OF SELLER TO COMPLY WITH THIS AGREEMENT SHALL BE THE REPAIR OR REPLACEMENT OF THE PRODUCTS AS PROVIDED RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 28: Legal Information
Crystal and the Crystal Logo are trademarks of Crystal Group Inc. or its affiliates in the U.S. and other countries. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Crystal and any other company. RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 29: Disclaimers
CERTIFICATION OR LICENSE SYMBOLS THAT APPLY. IF THERE ARE ANY QUESTIONS ABOUT THE LICENSES AND/OR CERTIFICATIONS THAT CRYSTAL OBTAINS, PLEASE CONTACT A CRYSTAL REPRESENTATIVE AT ONE OF THE OPTIONS LISTED ON THE CONTACT INFORMATION SECTION LOCATED ON PAGE 6. THANK YOU FOR YOUR BUSINESS. RS4715/RS4715L24 (X8) User Guide Page of 28... -
Page 30: Rs4715/Rs4715L24 (X8) User Guide Page Of
RS4715/RS4715L24 (X8) THIS PAGE IS INTENTIONALLY LEFT BLANK. RS4715/RS4715L24 (X8) User Guide Page of 28...
