ST50 PLUS RADAR Operation and Installation Handbook
Instructions
2.3.1.1 Console Mounting
The procedure below can be used to console mount the ST50 Display.
Refer to the console mounting figure to see how the various hardware
items are arranged during assembly.

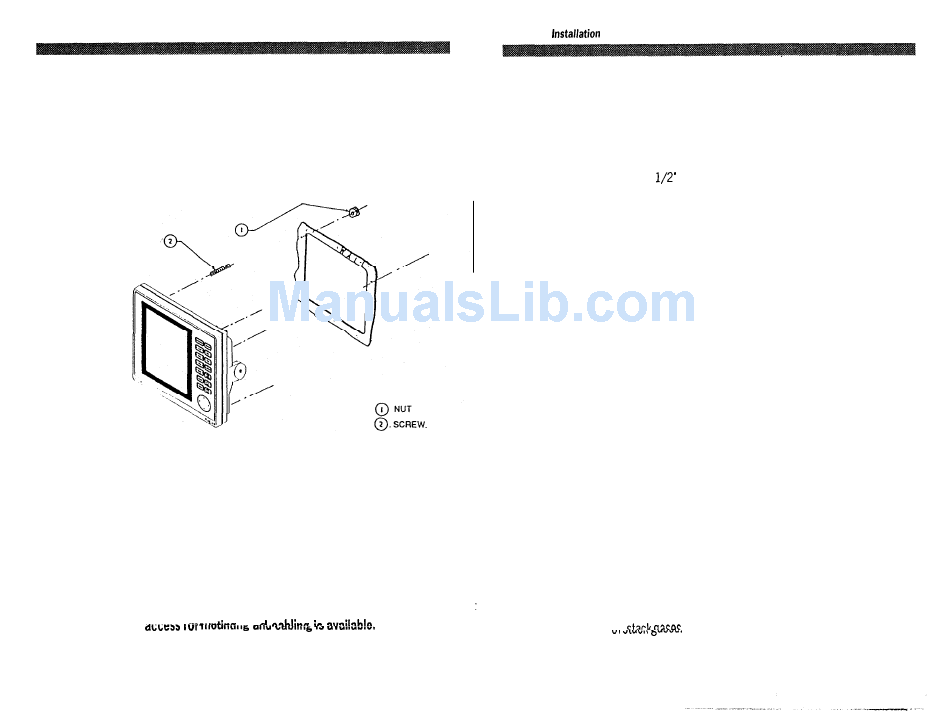

Fig. 2-4 Console Mounting the Display
1.
Select the location for the unit. A clear, flat area of at least 8" wide
by 9" high having at least 6" of clearance depth behind the panel
is required.
Caution
Make sure there are no hidden electrical wires or other items
behind the desired location before proceeding. Checkthatfree
------ C-r -a..-a:..~ . . . . A n.lh,:n,, ic ~\,a;lsJk(P
Section 2. lnstaflation
2. Unpack the template mounting kit and also confirm that all
hardware is present.
3.
Using the instruction template supplied with the kit, trace out the
appropriate screw hole locations for flush mounting including the
display unit opening.
4.
Drill a l/2' pilot hole in each opposing corners of the cut-out area.
5.
Using an appropriate saw, cut the outside edge of the
6.
Remove the yoke knobs, from the display cabinet. Check that the
unit will fit into the cut-out area.
7.
Complete the installation of the DC power cabling, antenna cable,
data input, ground, and any other accessory cables, into the
console.
8.
Slide the unit into the cutout of the panel. A suitable sealant may
be used between the trim ring and console to prevent moisture
entry.
9. Use the hardware supplied in the kit to secure the unit to the
console. Tighten the hardware as necessary. Connect all cables
to the unit rear panel.

2.3.2 Radome Antenna Mounting

Selecting the best location for the Scanner Unit requires careful
consideration. On many small vessels, the unit can be installed on a
mast platform, on an arch, or on bridge structure. Since radar
basically operates at line-of-sight, the unit should be mounted as high
as possible on the vessel to obtain the best long range performance.
The scanning beam should not be obstructed by surrounding large
objects. Try to locate the radome unit where other large structures or
equipment such as searchlights, horns, or masts are not in the same
horizontal plane, otherwise, blind areas and false targets can appear
on the radar screen.
Installation near the top of exhaust stacks must be avoided as damage
to the radome could result excessive heat and the corrosive effects
n f Ct3f-k cl2crx
2 - 7
line.
cut-out
