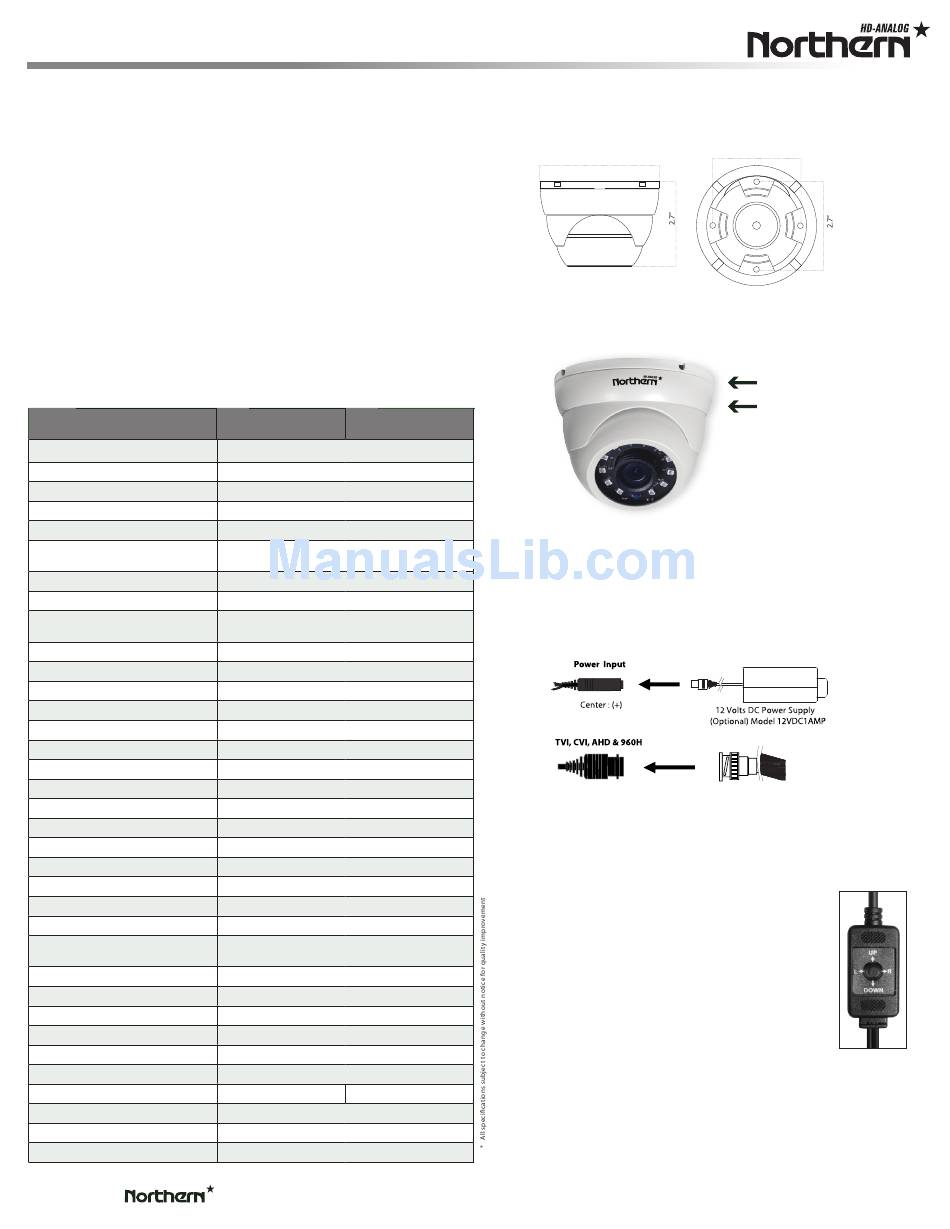

Northern HDDWMIR User Manual

HDDWMIR / HDDWMIRW
3.6mm, 60' IR Range

PRODUCT FEATURES

•
1/3" Sony CMOS Sensor
•
Multi Format (TVI, CVI, AHD, 960H)
•
3.6mm Fixed Focal Lens
•
Mechanical IR Cut Filter
•
Cable & UTC OSD Control
•
Digital Wide Dynamic Range - 3D DNR
•
60' IR Range / 12 IR LED's
•
Sense-up / Northern Lights Technology
•
12 Volt DC Power / IP66 Weatherproof

SPECIFICATIONS

Model No.
Image Sensor
Total Pixels
Active Pixels
Resolution
Scanning System
OSD (On Screen Display)
Digital WDR (Wide Dynamic Range)
DNR (Digital Noise Reduction)
Video Output
Lens Type - True Day Night
Sense-up
Shutter Speed
IR Cut Filter
Minimum Illumination
IR LED Count / Range
S/N Ratio
Automatic Gain Control
Sync System
Gamma Characteristics
White Balance
Back Light Compensation
HBLC (High Back Light Compensation)
Day/Night
Mirror
Languages
Brightness
Motion Detection
Privacy Mask
Power Input
Power Requirement
Overall Camera Dimensions
Housing / Color
Weight
Operating Temperature
Weatherproof Rating
4-in-1, Full HD 1080p Outdoor IR Eyeball Camera
HDDWMIR HDDWMIRW
1/3" Sony CMOS Sensor
1984 x 1225
1920 x 1080
1920 x 1080 (1080p)
Progressive Scan
Dual OSD Access: Cable Mounted Joystick Controlled /
UTC Controlled (coaxial control)
Auto / Off / On - 0 ~ 8 Adjustable
2D & 3D, Low, Middle, High, Off
Dual Pigtail HD-TVI Main Output (yellow) /
960H Secondary Output (black)
3.6mm Fixed Focal Lens
Off / x2 ~ x30
Auto, FLK, 1/30 ~ 1/50,000, x2 ~ x30
Built in Mechanical
0.0 Lux IR LED On
12 IR LED's / 60' Range / 850nM
More than 50dB
0 ~100 Adjustable
Internal
y = 0.45 typ.
ATW / AWC->Set / Indoor / Outdoor / Manual
Off / BLC / HSBLC
On / Off
EXT / Auto / Color / B/W
Mirror / V-Flip / Rotate / Off
English, French, Spanish, German, Italian
(see OSD Menu for more)
0 ~100 Adjustable
On/Off (4 Zone Selectable)
On/Off (4 Zone Selectable)
12VDC Only
120mA / 450mA IR LED ON
3.7" x 2.6" (95mm x 65mm)
Aluminum - Gray Aluminum - White
.75 Lb.
-14°F ~ 122°F
IP66
3625 Cincinnati Avenue, Rocklin, CA 95765
CAMERA DIMENSIONS / LINE ART
3.7"
CAMERA COMPONENT DESCRIPTIONS
CAMERA CABLE CONNECTION
Insert power lead into power connector (insure proper
voltage is supplied and observe polarity).
Insert video lead into BNC connector (push, then twist to
lock BNC connector in place).
Use In-Line OSD control to select format:
960H Mode : Push OSD LEFT for 5 seconds
AHD Mode : Push OSD RIGHT for 5 seconds
CVI Mode : Push OSD UP for 5 seconds
TVI Mode : Push OSD DOWN for 5 seconds
OSD CONTROL
Press the Joystick button on the
cable mounted OSD control to
access the OSD menu.

PACKAGE CONTENTS

(1) Camera
(1) Mounting Hardware Packet
(1) User Manual
♦ ♦
855-388-7422 www.northernvideo.com
2.7"
Mounting Base
Locking Collar
In-Line
Cable Mounted
OSD Control
Rev. 022217
