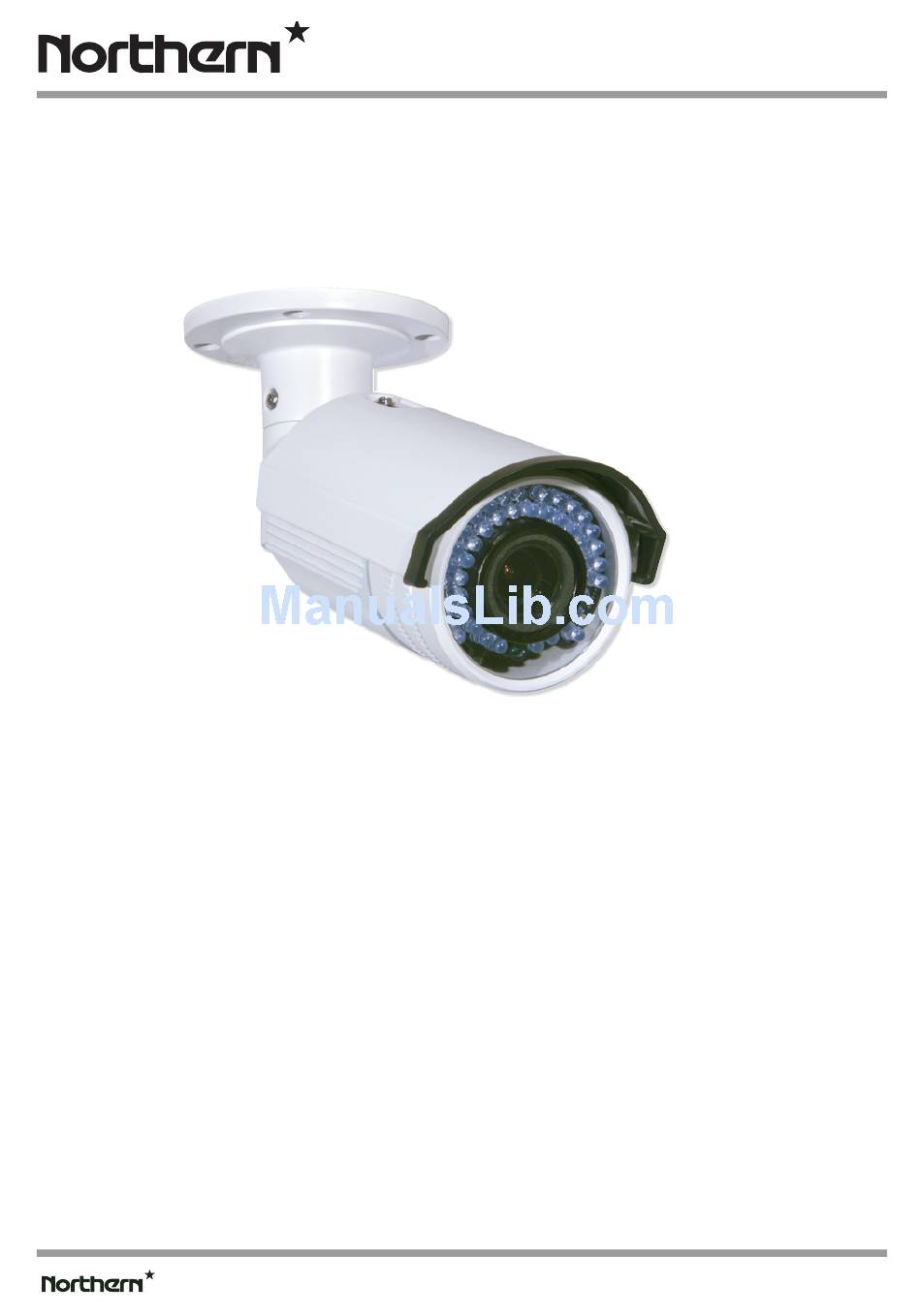

- Page 1 IP3VFB 3.0 Megapixel IP Outdoor IR Bullet Camera Installation & Quick Setup Guide ♦ ♦ 3625 Cincinnati Avenue, Rocklin, CA 95765 855-388-7422 www.northernvideo.com Rev. 020415...
- Page 2 Installation & Quick Setup Guide Network Bullet Camera· Quick Operation Guide Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact us. About This Document This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
-
Page 3: Fcc Information
Installation & Quick Setup Guide Network Bullet Camera·Quick Operation Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 4 Installation & Quick Setup Guide Network Bullet Camera·Quick Operation Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
-
Page 5: Safety Instruction
Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. - Page 6 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide • Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. • Please make sure that the plug is firmly connected to the power socket.
- Page 7 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide • Do not install the camera in areas outside of the normal operating range of -30°C ~ +60°C and do not expose it to high electromagnetic radiation. • To avoid heat accumulation, good ventilation is required for operating environment.
-
Page 8: Table Of Contents
Installation & Quick Setup Guide Table of Contents 1 Appearance Description ................8 2 Installation......................10 2.1 SD Card Installation..............11 2.2 Mounting..................13 2.2.1 Wall Mounting..............13 2.2.2 Wall Mounting with a Junction Box......15 2.2.3 Wall Mounting with a Gang Box ....... 17 2.3 View Angle Adjusting .............. -
Page 9: Appearance Description
Installation & Quick Setup Guide 1 Appearance Description The overview of the network bullet camera is shown below. Figure 1-1 Overview Table 1-1 Description Description Sun Shield Front Cover Zoom and Focus Lever... - Page 10 Installation & Quick Setup Guide Description IR LED Lens Air Vent Video Output Interface Integrated Bracket Reset Button SD Card Slot Power Interface Network Interface • Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
-
Page 11: Installation
Network Bullet Camera·Quick Opera on Guide Installation & Quick Setup Guide 2 Installation Before you start: • Make sure the device in the package is in good condi on and all the assembly parts are included. • Make sure all the related equipment is powered off during the installa on. -
Page 12: Sd Card Installation
Installation & Quick Setup Guide • Make sure that there are no reflective surfaces too close to the camera lens. The IR light from the camera may reflect back into the lens causing reflection. • The foam ring around the lens must be seated flush against the inner surface of the glass to isolate the lens from the IR LEDS. - Page 13 Installation & Quick Setup Guide 4. Insert the SD card to the SD card slot. 5. Rotate the front cover clockwise back to the camera and install the sun shield according to the arrow direction as shown in Figure 2-2(right). Figure 2-2 Install the SD Card 6.
-
Page 14: Mounting
Installation & Quick Setup Guide Rotating Label Figure 2-3 Assemble the Camera For water-proof, please align the rotating label on the front cover with that on the camera when you rotate the front cover clockwise. Refer to Figure 2-3(right). 2.2 Mounting This camera is equipped with a bracket on the bottom. - Page 15 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide 2. Drill screw holes in the wall according to the number one holes of the drill template. Refer to the Figure 2-4. Ceiling Mounting 1:Screw Hole for 2:Screw Hole for Bracket Mounting Base Figure 2-4 Drilling Holes in the Wall...
-
Page 16: Wall Mounting With A Junction Box
Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Figure 2-5 Secure the Camera 2.2.2 Wall Mounting with the included Junction Box... - Page 17 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Steps: 1. Attach the drill template (supplied) to the wall where the camera is to be mounted. 2. Drill holes in the wall according to the number two holes of the drill template.
-
Page 18: Wall Mounting With A Gang Box
Installation & Quick Setup Guide Junction Box Safety Rope Figure 2-6 Secure the Camera 2.2.3 Wall Mounting with a Gang Box Before you start: For mounting with a gang box, you have to purchase a gang box. Steps: 1. Secure the camera attachment to a gang box with screws. 2. -
Page 19: View Angle Adjusting
Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Gang Box Camera Attachment Figure 2-7 Secure the Camera 2.3 View Angle Adjusting Purpose: 3-axis (pan/tilt/rotation) adjusting allows adjustment for optimum camera rotation and placement. You can use this function to get the angle of view that you want. -
Page 20: Zoom And Focus Adjusting
Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide 1. Loosen the lock screw-2. 2. Adjust the tilting position of the camera. The adjusting range is from 0 degrees to 90 degrees. 3. Tighten the lock screw-2. Rotation Adjustment Steps: 1. - Page 21 Installation & Quick Setup Guide Steps: 1. Disassemble the camera. Refer to section 2.1. 2. View the camera image using the monitor. 3. Loosen the zoom lever and move the lever between T(Tele) and W(Wide) to obtain the appropriate angle of view. 4.
-
Page 22: Setting The Network Camera Over The Lan
Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide 3 Setting the Network Camera over the Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. - Page 23 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Use client software and to list the online devices. Please refer to the user manual of client software for detailed information. 2. Change the IP address and subnet mask to the same subnet as of your PC.
- Page 24 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Figure 3-2 Search Online Devices Device can be searched and displayed in the list in 15 seconds after it goes online; it will be removed from the list in 45 seconds after it goes offline. Search online devices manually: You can also click to refresh the online device...
- Page 25 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.
- Page 26 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Figure 3-4 Modify Network Parameters 3. Enter the IP address of network camera in the address field of the web browser to view the live video. The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.
-
Page 27: Accessing Via Web Browser
Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 6.0 and above version, Apple Safari... - Page 28 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of the plug-in.
- Page 29 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in(1)
- Page 30 Network Bullet Camera·Quick Operation Guide Installation & Quick Setup Guide Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For detailed instructions of further configuration, please refer to the user manual of network camera.
