- Page 1 English Operating manual Thermocouple thermometers HD2108.1 – HD2108.2 HD2128.1 – HD2128.2 Companies / Brands of GHM www.deltaohm.com Keep for future reference.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................3 KEYBOARD AND MENU DESCRIPTION ......................8 THE PROBES ................................14 ..........................14 EMPERATURE MEASUREMENT Calibration of the temperature probe on line with the instrument ................14 WARNINGS AND OPERATING INSTRUCTIONS ....................16 INSTRUMENT SIGNALS AND FAULTS ......................17 LOW BATTERY WARNING AND BATTERY REPLACEMENT ...............19 INSTRUMENT STORAGE .............................20 SERIAL INTERFACE AND USB ...........................21 STORING AND TRANSFERRING DATA TO A PERSONAL COMPUTER ............23... -
Page 3: Introduction

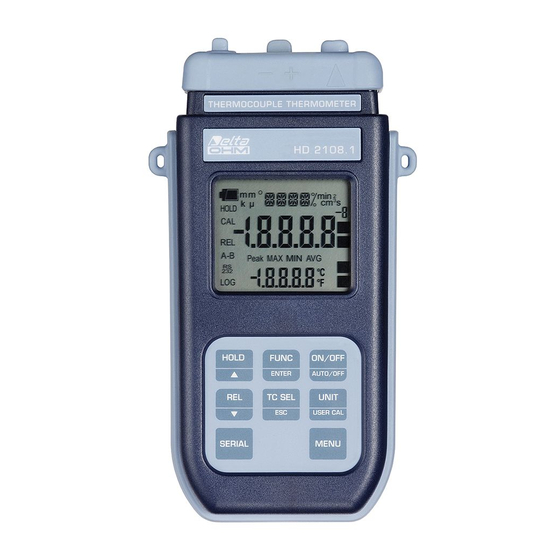

INTRODUCTION The HD2108.1 and HD2108.2 with one input and the HD2128.1 and HD2128.2 with two inputs are portable instruments with a large LCD display. They measure the temperature using immersion, penetration or air contact probes. The sensor may be a thermocouple of type K, J, T, N, R, S, B or The HD2108.2 and HD2128.2 instruments are dataloggers. - Page 4 HD2108.1 and HD2108.2 Thermocouple Thermometers with one input - 4 - HD2108/HD2128 V2.3...
- Page 5 9. SERIAL key (for HD2108.1) or SERIAL/ERASE LOG (for HD2108.2): starts and ends data transfer to the serial/USB communication port. In the menu, clears the data contained in the instrument's memory.
- Page 6 HD2128.1 and HD2128.2 Thermocouple Thermometers with two inputs - 6 - HD2108/HD2128 V2.3...
- Page 7 HD2128.1 and HD2128.2 1. Input for 2 thermocouples, standard mignon connectors (the upper one is input "A", the lower one input "B"). 2. External auxiliary power supply connector input. 3. Battery symbol: displays the battery charge level. 4. Function indicators. 5.
-
Page 8: Keyboard And Menu Description
KEYBOARD AND MENU DESCRIPTION Foreword In some versions, the instrument keyboard is composed of single-function keys and double-function keys such as the ON-OFF/Auto-OFF. In the double-keys, the function in the upper part is the “main function”, while the one in the bottom part is the “secondary function”. - Page 9 MAX, MIN or AVG values for both inputs. In the models with one input, the HD2108.1 and HD2108.2, the display shows the current temperature in the main line and the maximum, minimum or average temperature in the secondary line.
- Page 10 Calibration of the probe and selection of the type of calibration Simultaneous pressure on the UNIT/UserCal and FUNC/Enter keys starts the calibration procedure of the temperature probe connected to the instrument. Please see the paragraph dedicated to calibration on page 14. To select the type of calibration (USER=user or FACT= factory) press the UNIT/UserCal and FUNC/Enter keys together, then use the arrows to select the desired item, and confirm using ENTER.
- Page 11 MENU Key The first menu item is accessed by initially pressing on the MENU key (A-B/Menu + FUNC/Enter in the HD2128.2 model); press ENTER to go to the following items. To modify the item displayed, use the arrow keys ( ).
- Page 12 8) MIN (minutes): to set the current minutes. In order to correctly synchronize the minute, it is possible to reset the seconds by pressing the UNIT key. Use the arrows to set the minutes, press the UNIT key to confirm: this synchronizes the time to the second. Press ENTER to go onto the next item.
- Page 13 SERIAL key - only HD2108.1 and HD2128.1 SERIAL/EraseLOG key - only HD2108.2 and HD2128.2 In measurement mode, this function starts and stops the data transfer to the RS232C serial output. According to the settings entered in the Print and log interval menu item, a single sample can be printed if Print and log interval=0 or a continuous indefinite printing of the measured data can be set up if Print and log interval=1…3600.
-
Page 14: The Probes
THE PROBES The instrument works with thermocouple probes of type K, J, T, N, R, S, B or E. The selection is done using the TC SEL key. The contacts of the thermocouple probe connector are polarized. They must be inserted on the standard mignon socket located on the instrument in the correct direction. - Page 15 the input: it is therefore implied that the USER calibration should only be used with a precise probe: the one used during calibration and no other probe. To pass from the user to the factory calibration and back again, press the UNIT/UserCal and FUNC/ENTER keys together, then use the arrows to select the type of calibration, and confirm using ENTER.
-
Page 16: Warnings And Operating Instructions
WARNINGS AND OPERATING INSTRUCTIONS 1. Do not expose the probes to gases or liquids that could corrode the material of the probe. Clean the probe carefully after each measurement. 2. Do not bend the probe connectors or force them upward or downward. 3. -
Page 17: Instrument Signals And Faults
INSTRUMENT SIGNALS AND FAULTS The following table lists all error indications and information displayed by the instrument and supplied to the user in different operating situations: Display indications Explanation This message appears when a wrong function is called: for example, should the A-B key be pressed or the AVG function be enabled when one of the two probes is not connected. - Page 18 The following table reports the indications provided by the instrument as they appear on the display, together with their description. Display indications Explanation >>>_CAL_MODE >>> KEY_UNIT calibration mode >>> press UNIT to start a new user calibration FOR_NEW_USER CAL_ >>>_LOG_DUMP_or_ERAS transfer or erase data 1ST_MEAS UP DOWN correct the first point using the arrows...
-
Page 19: Low Battery Warning And Battery Replacement
LOW BATTERY WARNING AND BATTERY REPLACEMENT The battery symbol on the display constantly shows the battery charge status. To the extent that batteries have discharged, the symbol "empties". When the charge decreases still further it starts blinking… In this case, batteries should be replaced as soon as possible. If you continue to use it, the instrument can no longer ensure correct measurement. -
Page 20: Instrument Storage
ALFUNCTIONING UPON TURNING ON AFTER BATTERY REPLACEMENT After replacing the batteries, the instrument may not restart correctly; in this case, repeat the operation. After disconnecting the batteries, wait a few minutes in order to allow circuit condensers to discharge completely; then reinsert the batteries. ARNING ABOUT BATTERY USE •... -
Page 21: Serial Interface And Usb
SERIAL INTERFACE AND USB All instruments are fitted with an electrically isolated RS-232C serial interface; the HD2108.2 and HD2128.2 also have an USB 2.0 interface. The following serial cables can be used: • HD2110CSNM: serial connection cable with 8-pole MiniDin connector on one end and 9-pole Sub D connector on the other end;... - Page 22 Command Response Description Model HD2128 -2 Instrument model M=Thermometer 2TC Type K Model description SN=12345678 Instrument serial number Firm.Ver.=01-00 Firmware version Firm.Date=2004/06/15 Firmware date cal 0000/00/00 00:00:00 Calibration date and time Probe=Tc K Type of probe set Probe SN=11119999 Probe serial number Probe cal.=2004/01/12 Probe calibration date User ID=0000000000000000...
-
Page 23: Storing And Transferring Data To A Personal Computer
STORING AND TRANSFERRING DATA TO A PERSONAL COMPUTER The HD2108.1 and HD2108.2, HD2128.1 and HD2128.2 can be connected to a personal computer via an RS232C serial port or USB 2.0 port, and exchange data and information through the DeltaLog9 software running in a Windows operating environment. All models can send in real time input measured values directly to a PC, through the PRINT function;... -
Page 24: The Print Function
• The direct connection between instrument and printer via a USB connector does not work. • Some keys are disabled during logging. The following keys work: ON/OFF, HOLD, FUNC (Max-Min-Avg) and SERIAL. • Pressing the HOLD, REL and FUNC keys has no effect on the logged data if these keys are pressed after starting the recording, otherwise the following is valid. -
Page 25: Connection To A Pc
SERIAL PORT OF THE INSTRUMENT 1. The measurement instrument must be switched off. 2. Using the Delta Ohm HD2110CSNM or C.206 cable, connect the measuring instrument to the first free RS232C (COM) or USB serial port of the PC. 3. Turn on the instrument and set the baud rate to 38400 (MENU >> ENTER until the Baud Rate parameter >>... -
Page 26: Notes About Working And Operative Safety
NOTES ABOUT WORKING AND OPERATIVE SAFETY Authorized use The technical specifications as given in chapter "TECHNICAL CHARACTERISTICS" must be observed. Only the operation and running of the measuring instrument according to the instructions given in this operating manual is authorized. Any other use is considered unauthorized. General safety instructions This measuring system is constructed and tested in compliance with the EN 61010-1:2010 safety regulations for electronic measuring instruments. -
Page 27: Instrument Technical Characteristics
INSTRUMENT TECHNICAL CHARACTERISTICS Instrument Dimensions (Length x Width x Height) 185x90x40mm Weight 470g (complete with batteries) Materials ABS, rubber Display 2x4½ characters plus symbols Visible area: 52x42mm Operating conditions Working temperature -5…50°C Storing temperature -25…65°C Working relative humidity 0…90%RH without condensation Protection degree IP66 Measuring units... - Page 28 USB interface - model HD2108.2 and HD2128.2 Type 1.1 - 2.0 electrically isolated Connections Input for probes 2-pole female polarized standard mignon connector RS232 serial interface 8-pole MiniDin connector USB interface (only HD2108.2 and HD2128.2) Mini-USB type B connector Mains adapter (cod. SWD10) 2-pole connector (positive at centre) Measurement of temperature by Instrument TC measurement range: K...
- Page 29 TOLERANCE CLASSES OF THERMOCOUPLES Tolerances according to IEC 60584-2 standard. The values refer to thermocouples with reference junction at 0 °C. Tolerance class 1 Tolerance class 2 Tolerance class 3 Temperature Temperature Temperature Type of Tolerance Tolerance Tolerance range range range thermocouple (°C)
-
Page 30: Order Codes
ORDER CODES HD2108.1 The kit is composed of the instrument HD2108.1 with one input, 4 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. The probes and the cables must be ordered separately. HD2108.2 The kit is composed of the HD2108.2 with one input, datalogger, 4 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. - Page 32 All DELTA OHM instruments are subject to accurate testing, and are guaranteed for 24 months from the date of purchase. DELTA OHM will repair or replace free of charge the parts that, within the warranty period, shall be deemed non efficient according to its own judgement. Complete replacement is excluded and no damage claims are accepted.
- Page 33 GHM GROUP – Delta OHM | Delta Ohm S.r.l. a socio unico Via Marconi 5 | 35030 Caselle di Selvazzano | Padova | ITALY Phone +39 049 8977150 | Fax +39 049 635596 www.deltaohm.com | info@deltaohm.com The quality level of our instruments is the result of the constant development of the product. This may produce some differences between the information written in this manual and the instrument you have purchased.
- Page 34 GHM GROUP – Delta OHM | Delta Ohm S.r.l. a socio unico Via Marconi 5 | 35030 Caselle di Selvazzano | Padova | ITALY Phone +39 049 8977150 | Fax +39 049 635596 www.deltaohm.com | info@deltaohm.com V2.3 28/08/2017...
