IBM UPS5000 HV Uninterruptible Power Supply for
IBM System x
Product Guide
The IBM UPS5000 HV is a 5 KVA rack-mountable uninterruptible power supply (UPS) that utilizes
advanced backup power technology to ensure maximum protection of equipment and data and increase
availability. High power efficiency is delivered through the capability of automatically switching the UPS to
the efficiency mode appropriate for required power protection. Support for different line cords lets
multinational customers implement this single model UPS5000 HV in multiple geographies.

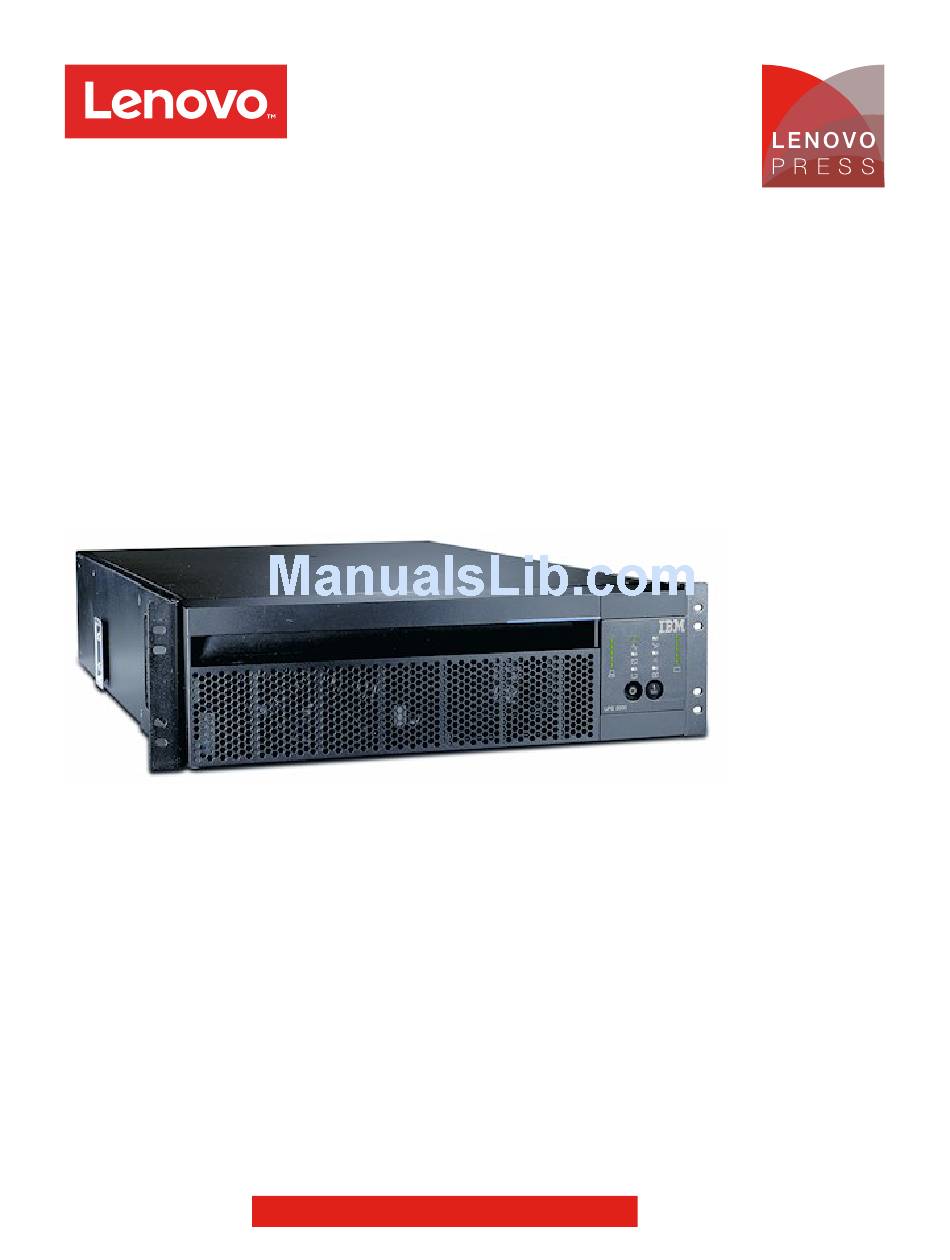

The IBM UPS5000 HV uninterruptible power supply is shown in Figure 1.
Figure 1. IBM UPS5000 HV uninterruptible power supply for IBM System x
Did you know?
The UPS5000 HV packs 4500W of power into a space-efficient 3U form. This provides maximum power
density, thereby leaving more space for other computer hardware in rack and BladeCenter server
environments.
Double Conversion UPS technology provides maximum protection from potential power input problems.
This leads to higher availability and fewer problems that threaten data and equipment.
Click here to check for updates
IBM UPS5000 HV Uninterruptible Power Supply for IBM System x
1

Advertisement

   Related Manuals for Lenovo IBM UPS5000

   Summary of Contents for Lenovo IBM UPS5000

  • Page 1

    IBM System x Product Guide The IBM UPS5000 HV is a 5 KVA rack-mountable uninterruptible power supply (UPS) that utilizes advanced backup power technology to ensure maximum protection of equipment and data and increase availability. High power efficiency is delivered through the capability of automatically switching the UPS to the efficiency mode appropriate for required power protection.

  • Page 2

    40K9617 6505 IBM DPI Korean Line Cord 40K9618 6506 The uninterruptible power supply designated by part number IBM UPS5000 HV includes the following items: One IBM UPS5000 HV with network management card Accesory kit, containing the following items: Front bezel...

  • Page 3

    Figure 2 shows three of the four available line cords as listed in Table 1. Figure 2. Line cords (l-r): Australian/NZ Line Cord, Korean Line Cord, 30a Line Cord (NEMA L6-30P) Features IBM UPS5000 HV Uninterruptible Power Supply for IBM System x...

  • Page 4: Physical Specifications

    Features The IBM UPS5000 HV uninterruptible power supply includes the following features and capabilities: High efficiency 5KVA (4.5 kW) UPS for increased rack power density. Occupies only 3U of vertical rack space. Eight C13 and two C19 receptacles with 20A circuit breaker protection.

  • Page 5: Front Panel Controls

    Warranty The IBM UPS5000 HV uninterruptible power supply has a three-year limited warranty. Supported rack installation The IBM UPS5000 HV uninterruptible power supply requires 3 U of rack space in one of the following rack cabinets: IBM 42U Enterprise rack...

  • Page 6: Rear Panel

    9. Power on / Test button 10. Battery charge level / Diagnostic utility voltage indicator Rear panel Figure 4 shows the rear panel of the UPS 5000VA HV uninterruptible power supply. IBM UPS5000 HV Uninterruptible Power Supply for IBM System x...

  • Page 7

    13. USB connector (reserved for future use) 14. Console connector 15. Connectors for optional Online Battery Packs for extended run time (remove the metal cover first) 16. Input fuse 17. Input power connector IBM UPS5000 HV Uninterruptible Power Supply for IBM System x...

  • Page 8

    Figure 8 shows the UPS connected to two 3U Online Battery Packs. The units are connected together using the battery connectors shown in Figure 7 plus a green/yellow ground wire. IBM UPS5000 HV Uninterruptible Power Supply for IBM System x...

  • Page 9

    Figure 8. IBM UPS5000 HV uninterruptible power supply with two 3U Online Battery Packs Battery run times and recharge times Table 2 lists the approximate run times for the uninterruptible power supply when operating on battery power. The run times vary depending on the load attached to the UPS. The table also lists the run times when one, two, three, or four 3U Online Battery Packs (OBP) are attached.

  • Page 10

    0:05 0:20 0:38 0:54 1:15 Table 3 lists the number of hours needed to recharge the IBM UPS5000 HV uninterruptible power supply and optional Online Battery Packs. Table 3. Recharge times UPS5000 battery With 1 OBP With 2 OBPs With 3 OBPs...

  • Page 11

    Related publications For more information refer to these documents: IBM UPS5000 HV Uninterruptible Power Supply Operation and Setup Guide http://www.ibm.com/support IBM 3U Extend Run Battery Pack Operation and Setup Guide ftp://ftp.software.ibm.com/systems/support/system_x_pdf/25r5637a.pdf IBM System x Configuration and Options Guide http://www.ibm.com/support/docview.wss?uid=psg1SCOD-3ZVQ5W Related product families...

  • Page 12

    Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. Any performance data contained herein was determined in a controlled environment.

  • Page 13

    Trademarks Lenovo, the Lenovo logo, and For Those Who Do are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at http://www3.lenovo.com/us/en/legal/copytrade/. The following terms are trademarks of Lenovo in the United States, other countries, or both: BladeCenter®...
