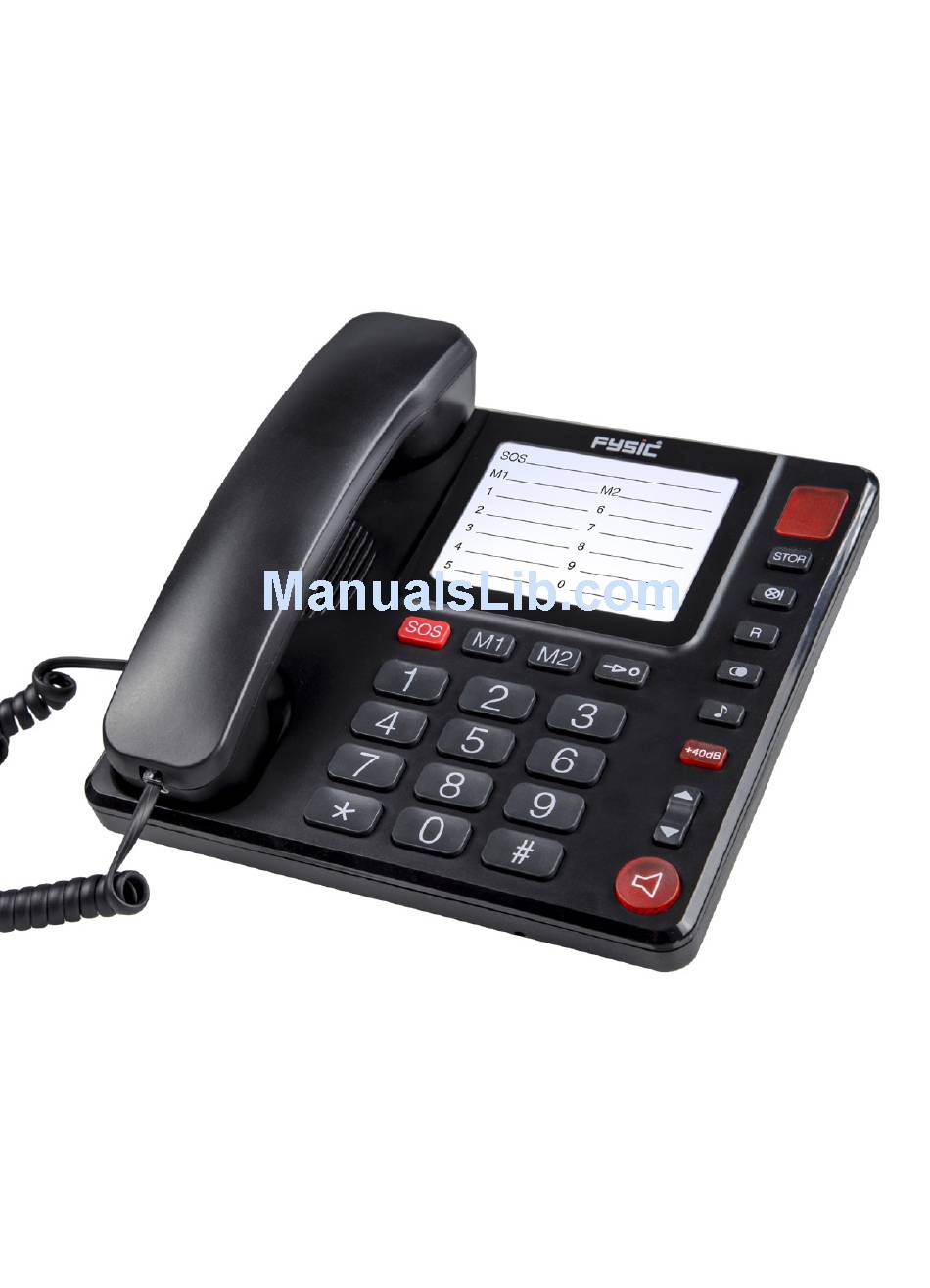

- Page 1 USER’S MANUAL FX-3920...
-
Page 2: Table Of Contents
CONTENTS DECLARATION OF CONFORMITY ..4 NETWORK COMPATIBILITY ....4 MAINTENANCE ........5 INSTALLATION Table stand ..........6 Wall-mounting ........... 7 Receiver ............ 8 Telephone ..........8 USING THE TELEPHONE Incoming calls ........... 9 Answering calls ......... 9 Ending calls ..........10 Dialling numbers ........ - Page 3 NUMBER MEMORY Introduction ..........15 Programming ........... 15 Dialling ............ 17 Changing or erasing ........ 17 WARNINGS AND USER TIPS General ........... 18 Installation ..........18 Environment ..........19 PROOF OF WARRANTY ......20...
-
Page 4: Declaration Of Conformity
DECLARATION OF CONFORMITY The declaration of conformity is available on the website WWW.FYSIC.COM NETWORK COMPATIBILITY This telephone is designed for use on the ‘public switched telephone networks (analogue single line)’ of telephony and cable companies in all countries of the EU. -
Page 5: Maintenance
• Only clean the housing with a moist cloth, BE 03 238 5666 never use chemical cleaning agents. (Lokaal tarief) (Tarif local) • Never place the FX-3920 onto cellulose-treated DE 0180 503 0085 surfaces; the rubber feet could leave tracks. Lokale Festnetzkosten Hesdo, Australiëlaan 1 5232 BB, ‘s-Hertogenbosch... -
Page 6: Installation
INSTALLATION 4.1 Table stand: When using the telephone on a table or desk, you should first attach the table stand to the bottom of the telephone. 1. first, hook this side of the stand into the bottom of the telephone (see 1) 2. -
Page 7: Wall-Mounting
4.2 Wall-mounting: 1. in a vertical line, drill 2 holes at a distance of 8.4 cm from each other and insert plugs and screws; let the head of the screws protrude for 5 mm 2. slide the receiver clamp out of the telephone, turn it 180°... -
Page 8: Receiver
2. push in the plugs until they’re securely connected 4.4 Telephone: 1. plug the telephone wire into the bottom of the telephone 2. insert the telephone plug into a telephone wall socket The FX-3920 requires NO batteries... -
Page 9: Using The Telephone
USING THE TELEPHONE 5.1 Incoming calls: adjust the call volume using the call volume switch at the bottom of the telephone: : high call volume : low call volume : mute the call indicator with also light up when you receive an incoming call 5.2 Answering calls: pick up the receiver to have your conversation through the receiver... -
Page 10: Ending Calls
5.3 Ending calls: put the receiver back onto the cradle if using the receiver for the current call press the speaker button again to end the call if using the speaker for the current call 5.4 Dialling numbers: neem de hoorn op of schakel de luid- sprekerfunctie in enter the desired phone number the number will be dialled directly... -
Page 11: Dialling Memories Directly
press the button to redial the last dialled number 5.6 Dialling memories directly (*): pick up the receiver or turn on the speaker function press the SOS, M1 or M2 button this number will be dialled 5.7 Dialling 2-button memories: pick up the receiver or turn on the speaker function press the... -
Page 12: Call Volume And Tone
5.8 Call volume and tone: ATTENTION: EXCESSIVE VOLUMES CAN LEAD TO HEARING LOSS. IF MULTIPLE USERS ARE USING THE TELEPHONE, ALWAYS SET THE VOLUME TO NEUTRAL AFTER EACH CALL. volume press to increase the volume or press to decrease the volume, these volume buttons control the volume of both the receiver and the speaker... -
Page 13: Muting The Microphone
tone adjustment: press the button the increase the high tones attention: this function is only avail- able in combination with an activated amplifier and the receiver 5.9 Muting the microphone: press and hold this button during a call to turn off the microphone as soon as you release this button, the microphone will be switched on again... -
Page 14: R Button
5.11 R button: the R button (also called FLASH) is used to briefly interrupt the telephone connection; this brief interruption is used by some home or office switch- boards for call forwarding; public switchboards use this button for tele- com functions, such call waiting. The bottom of the tele- phone is provided with a small switch for setting the... -
Page 15: Number Memory
NUMBER MEMORY 6.1 Introduction: The FX-3920 offers a direct call memory for 3 tele- phone numbers and a 2-button numeric memory for 10 frequently used numbers. The maximum length of each memory is 16 digits. In addition to regular phone numbers, you can also program numbers of mobile phones. - Page 16 enter the number using the keypad press 1x the STOR button press one of the 3 direct memory buttons to store the number as a speed-dial number press one of the 10 numeric buttons to store the number as a 2-button memory call.
-
Page 17: Dialling
6.3 Dialling: pick up the receiver or switch on the speaker function press the SOS or M1 or M2 button press the button followed by the button under which the memory is saved the number will be dialled 6.4 Changing or erasing: You can change a number by programming the new number in the place of the old number. -
Page 18: Warnings And User Tips
WARNINGS AND USER TIPS 7.1 General: • Carefully read the user’s manual and follow all directions. • Always remove the telephone plug from the telephone wall socket before cleaning the de- vice. • Never install or use the telephone in wet or moist rooms or environments. -
Page 19: Environment
• Never touch non-insulated telephone wires un- less disconnected from the telephone network 7.3 Environment: The packaging of this telephone can be collected as old paper. However, we recommend you to save it, to adequately protect the phone during transport. When replacing this telephone, please return it to the supplier to ensure environment-friendly process- ing. -
Page 20: Proof Of Warranty
PROOF OF WARRANTY For the FYSIC FX-3920 telephone you have a warranty of 24 months from the date of purchase. During this period, we guarantee the free repair of defects caused by mate- rial and workmanship errors. All this subjected to the final assessment of the importer.
