Fysic FX-3950 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

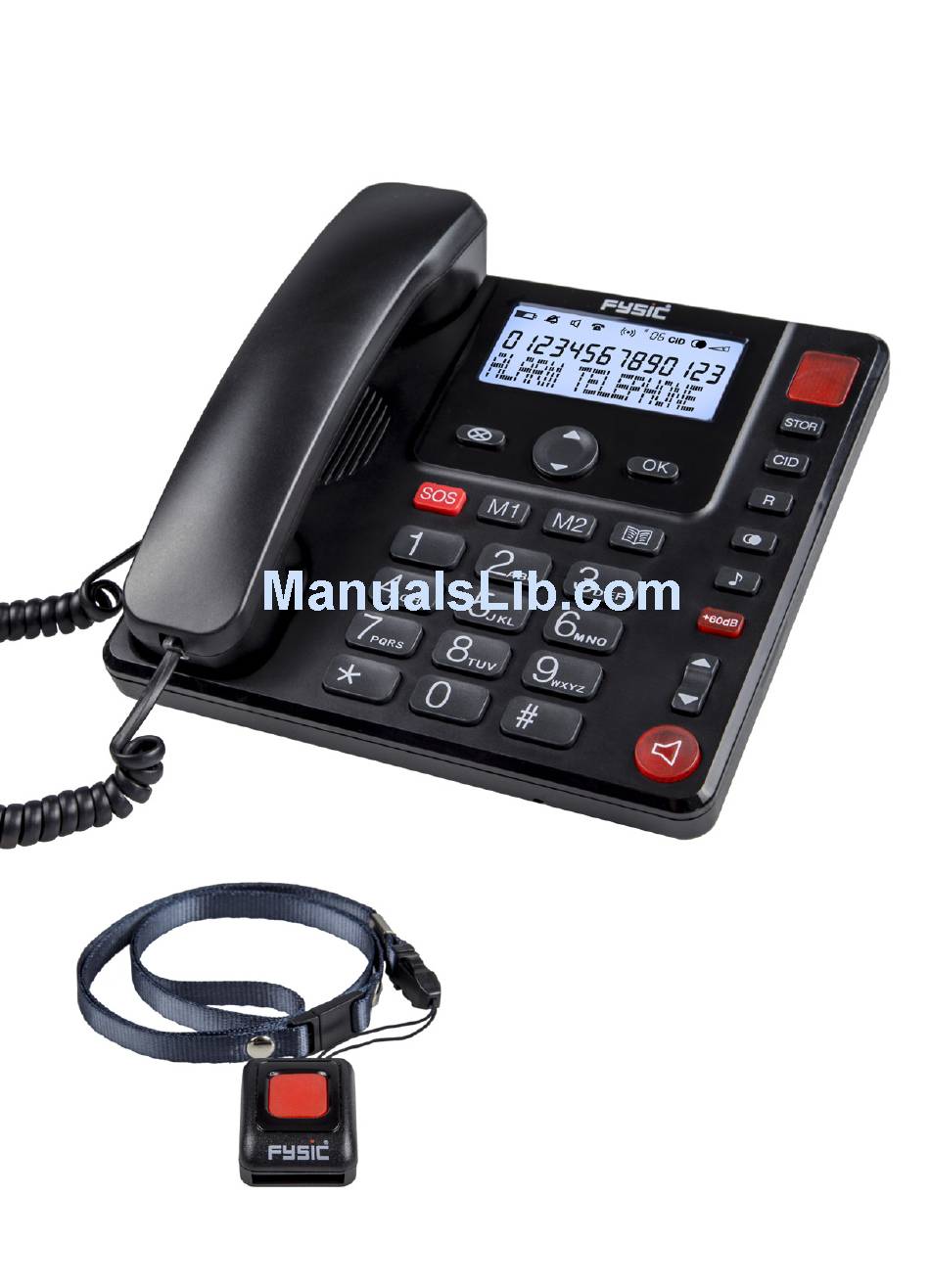

USER'S MANUAL
FX-3950

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-3950 and is the answer not in the manual?

Questions and answers

Related Manuals for Fysic FX-3950

Summary of Contents for Fysic FX-3950

  • Page 1 USER’S MANUAL FX-3950...

  • Page 2: Table Of Contents

    CONTENTS DECLARATION OF CONFORMITY ....4 NETWORK COMPATIBILITY ......4 MAINTENANCE ..........5 INSTALLATION Table stand ............5 Wall-mounting..........6 Batteries ............7 Power adaptor ..........8 Receiver ............9 ‘Vibrat.’ connection .......... 9 SETUP ............10 USING THE TELEPHONE Incoming calls ..........
  • Page 3 Caller-ID Introduction ............ 21 New call indication ......... 21 Checking the memory & calling back .... 22 Copying calls to the phonebook ....22 Deleting calls ..........23 Remarks & tips regarding Caller-ID ....24 NUMBER MEMORY Introduction ............ 26 Programming ..........

  • Page 4: Declaration Of Conformity

    DECLARATION OF CONFORMITY The declaration of conformity is available on the website WWW.FYSIC.COM NETWORK COMPATIBILITY This telephone is designed for use on the ‘public Service Help switched telephone networks (analogue single line)’ of telephony and cable companies in all WWW.FYSIC.COM countries of the EU.

  • Page 5: Maintenance

    MAINTENANCE • Only clean the housing with a moist cloth, never use chemical cleaning agents. • Never place the FX-3950 onto cellulose-treated surfaces; the rubber feet could leave tracks. INSTALLATION 4.1 Table stand: When using the telephone on a table or desk, you should first attach the table stand to the bottom of the telephone.

  • Page 6: Wall-Mounting

    2. now push the other side of the stand into the bottom until the 2 clips lock (see 2), if nec- essary depress these clips some- what (see 3) When you want to detach the stand again, press at 3 and remove in the direction of 4.

  • Page 7: Batteries

    2. slide the receiver clamp out of the telephone, turn it 180° and place it back onto the telephone; this clamp will hold the receiver in case of wall- mounting 3. hook the telephone with the screw holes over the screws and press it downward 4.

  • Page 8: Power Adaptor

    1. use a sharp object to remove the battery cover and open the compartment. 2. insert 4 AAA (pencil cells) according to the markings inside the battery compart- ment. 3. replace the battery cover and make sure it “clicks” onto the telephone. 4.4 Power adaptor: The power adaptor must be connected to be able to use the additional functions, such as hands-free...

  • Page 9: Receiver

    The bottom of the phone is provided with a ‘Vibrat.’ input for connecting a shaker that starts vibrating when receiving incoming calls. This shaker is not included, but can be obtained from the Fysic ser- vice department. See page 4 of this user’s manual for address information.

  • Page 10: Setup

    SETUP You can set the time and date as follows. TIME/DATE press 1x the button press the OK button to adjust the settings in the following order: the hours, press OK, the minutes, press OK, the date, press OK, the month, press OK briefly pick up the receiver and put it down again to save your settings Other settings:...
  • Page 11 LANGUAGE to set the display language SPOKEN NUMBERS to turn the spoken numbers function on or off RING MEL to set the ring tone, you can choose from 3 melodies RING VOL to set the ring tone volume, you can choose from 4 volume levels or turn the ring tone off CALL LIGHT...
  • Page 12 FLASH use this option to set the interruption time for the flash function; 100ms is the standard flash time, also the recommended time to set. See also paragraph 6.11. TONE/PULSE use this option to set the phone to pulse dialling or tone dialling; the en- tire public telephone network in the Benelux is suitable for tone dialling, the recommended choice...
  • Page 13 ALARM FUNC SILENC.URG AL.ANNOUNC NW.CALL.LED press OK when the choice appears in the display to adjust the setting or to enable or disable the function press OK briefly pick up the receiver and put it back down to save your setting PRE-DIAL NUMBER The ‘PRE-DIAL NUMBER’...

  • Page 14: Using The Telephone

    USING THE TELEPHONE 6.1 Incoming calls: see chapter 5 to set the ring tone and tone volume and to enable or disable the incoming call light pick up the receiver to have your conversation through the receiver or briefly press the speaker button or the alarm button to use the hands- free function for your call Pay attention, the power adaptor must be connect-...

  • Page 15: Dialling Numbers

    press the speaker button again to end the call if using the speaker for the current call 6.4 Dialling numbers: pick up the receiver or turn on the speaker function enter the desired phone number, the number will be dialled directly 6.5 Pre-dialling: enter the telephone number use the...

  • Page 16: Re-Dialling Last Number(S)

    6.6 Re-dialling last number(s): The FX-3950 memorizes the 15 last dialled num- bers. press the button, the last dialled number will appear in the display, the time when the number was dialled last is shown in the lower part of the...

  • Page 17: Dialling Phonebook Memories

    6.8 Dialling phonebook memories (*): briefly press the button until the symbol illuminates in the upper right corner of the display to search for the de- sired contact or use the ABC on the numeric buttons to directly select your contact pick up the receiver, turn on the speaker function or press the OK button to dial the selected number...
  • Page 18 Volume: press to increase the volume or press to decrease the volume, these volume buttons control the volume of both the receiver and the speaker Amplifier: press the +40dB button to switch on the amplifier, press again to turn off the amplifier, this function is only available in com- bination with the receiver...

  • Page 19: R Button

    tone adjustment: press the button the increase the high tones attention: this function is only avail- able in combination with an activated amplifier and the receiver 6.10 R button: the R button (also called FLASH) is used to briefly interrupt the telephone connection;...

  • Page 20: And # Buttons

    6.11 * and # buttons: are buttons mainly used for tele-banking: • press the button when requested to press the ASTERISK button • press the button when requested to press the POUND button...

  • Page 21: Caller-Id

    Caller-ID 7.1 Introduction: Provided this function is supported by your service provider, the number of the calling party will be shown in the display of the telephone. If this number, including the name, is programmed in the phonebook memory of the telephone, the display will not only show the number but also the name.

  • Page 22: Checking The Memory & Calling Back

    7.3 Checking the memory & calling back: make sure the word CID lights up in the upper left corner in the display (if necessary, press the button) to scroll the memory • in the lower part of the display, the time of the call will be shown •...

  • Page 23: Deleting Calls

    to scroll to the desired call press and hold the button for at 2 sec. least 2 seconds until the first digit of the number starts flashing, you can now edit the number if so desired press OK you can now add a name, for this see chapter 5 and select ‘SAVE NAME’.

  • Page 24: Remarks & Tips Regarding Caller-Id

    2 seconds to confirm deleting the call or calls Remarks & tips regarding Caller-ID: • the FX-3950 is suitable for both the DTMF system, offered by the Dutch KPN, as well as for the FSK system, offered by the Belgian Belg-acom and the Dutch and...
  • Page 25 • displaying the name: - the Dutch DTMF system doesn’t send names; the name will only appear in the display when it’s programmed in the phonebook memory of the telephone - however, the FSK system is capable of sending names (please ask your telephone service provider);...

  • Page 26: Number Memory

    NUMBER MEMORY 8.1 Introduction: The FX-3950 provides a phonebook with a capac- ity for 99 frequently used numbers. The maximum length of each memory is 22 digits and the name programmed for each memory number can contain up to 10 characters.

  • Page 27: Programming

    With each call, the telephone checks whether the number is programmed in its memory and will show the corresponding name in the display accordingly. The FX-3950 is also provided with 3 speed-dial memories, M1, M2 and M3, for telephone numbers only.
  • Page 28 phonebook memories: press the button to scroll to the ‘STORE NO.’ option press OK use the keypad to enter the phone number (*)(**) press OK use the keypad to enter the name (*) (***) press OK Name record ‘NAME REC’ will appear in the dis- play 2 sec.

  • Page 29: Changing / Correcting

    - you now have 5 seconds to speak the name into the microphone (or you can release the OK button when the recording takes less time) to verify the name, it will be played back once To add or change a name at a later time: See chapter 5 and select ‘NAME REC’.

  • Page 30: Deleting

    4. delete the old number with the button 5. now enter the correct number 6. briefly press the OK button 7. repeat these instructions for the name 8. briefly press the OK button the new data will overwrite the old data in the memory 8.4 Deleting: direct memories:...
  • Page 31 *: use the button to delete any mistakes while entering names or numbers **: if you want to add a dial pause to the number, e.g. because the phone is connected through a home or office switchboard and 0 must be pressed first to get an outside line, then press the but- ton at that position in the phone number;...

  • Page 32: Sos Function

    SOS FUNCTION KEEP IN MIND THAT THE SOS FUNCTION ONLY WORKS WHEN THE POWER ADAPTOR IS CONNECTED AND/OR WHEN FULL BATTER- IES ARE INSERTED! 9.1 Preparation: SOS function on/off: When not using the SOS function at all, you can turn this function off entirely via the setting ‘ALARM FUNC’...
  • Page 33 Registering/de-registering alarm buttons: You can register up to 5 alarm buttons on your FX- 3950. The alarm button supplied with the phone is already registered to your phone. You can register additional alarm buttons as follows: 1. press the button 2.
  • Page 34 SOS message: The SOS message is a message that is played in case of an emergency. You can either use the pre- programmed SOS message or record a personal SOS message: The pre-programmed SOS message is: “THIS IS AN EMERGENCY CALL, PRESS BUT- TON 5 TO CONFIRM”...
  • Page 35 SOS text will be played Silent alarm or loud alarm: Depending on your situation, you can set the FX-3950 to ‘silent alarm ON’ or ‘silent alarm OFF’. Carefully read the following descriptions and determine which type of alarm is most suitable for your current situation.

  • Page 36: Operation

    9.2 Operation: 1. in case of an emergency, press and hold the red SOS key on the phone or on the wireless alarm button for 2 seconds 2. the call indicator will start flashing and for 15 seconds the phone will emit alarm tones to alert people around you, provided the silent alarm option is set to ‘OFF’...
  • Page 37 4. if somebody does answer and presses the 5 button: • the SOS message stops and you have 3 min- utes to explain your situation to the person you’ve called through the speaker function • after 3 minutes, the SOS message will be played again;...

  • Page 38: Warnings And User Tips

    10. WARNINGS AND USER TIPS 10.1 General: • Carefully read the user’s manual and follow all directions. • Always remove the telephone plug from the telephone wall socket before cleaning the de- vice. • Never install or use the telephone in wet or moist rooms or environments.

  • Page 39: Environment

    • Never install telephone connecting terminals in wet or moist environments. • Never touch non-insulated telephone wires un- less disconnected from the telephone network 10.3 Environment: The packaging of this telephone can be collected as old paper. However, we rec- ommend you to save it, to adequately protect the phone during transport.

  • Page 40: Warranty

    11. WARRANTY For the FYSIC FX-3950 telephone you have a warranty of 24 months from the date of purchase. During this period, we guarantee the free repair of defects caused by material and workmanship errors. All this subjected to the final assessment of the importer.
