Installation
7. Set the termination switch (shown in
Illustration 3.7) on the fieldbus option to ON,
when the frequency converter is the last station
on the segment.
3
4
2
1
1 LCP
2 LCP cradle
®
3
VLT PROFIBUS DP MCA 101 option card
4 Connector plug

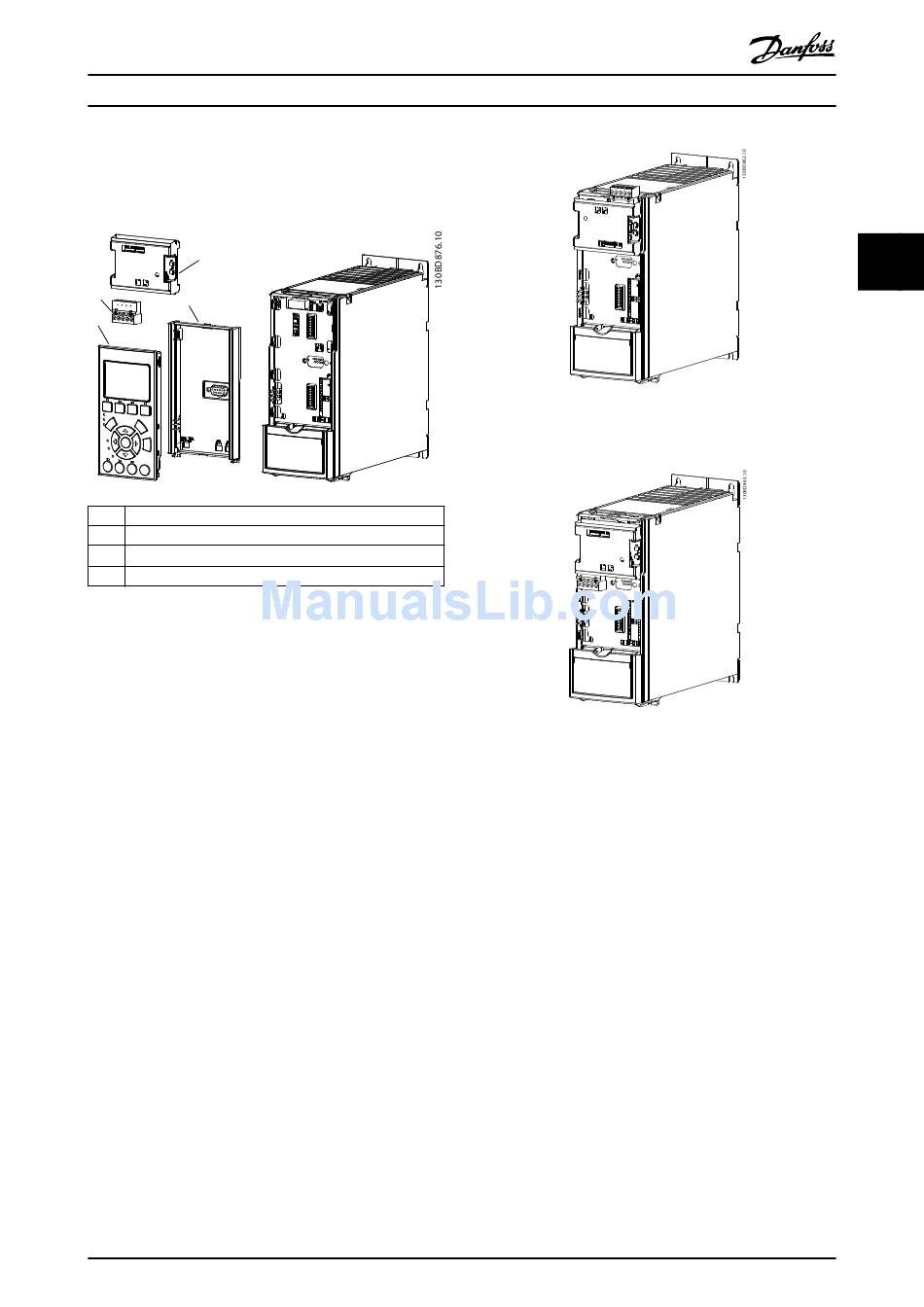

Illustration 3.2 Exploded View
MG33C602
Installation Guide
Illustration 3.3 Top Cable Entry: Option Mounted with
Connector Facing Up
Illustration 3.4 Bottom Cable Entry: Option Mounted with
Connector Facing Down
