Installation
Wiring procedure for enclosure sizes A4–A5, B1–B4, and
C1–C4
1. Push the cable through cable glands.
2. Mount the fieldbus connector on the fieldbus
option (terminals 62, 63, 66, and 67).
3 3
3. Prepare the fieldbus cable by stripping a section
of the cable insulation. Keep the unshielded wire
as short as possible. For cable specifications, refer
to chapter 3.7.2 Cable Specifications. For fieldbus
cable requirements, see chapter 3.7.3 Bus Segment
Requirements.
4. Connect the fieldbus cable wires to the terminals
according to the colour code of the wires, see
Illustration 3.10.
5. Fix the cable screen to the metal base plate using
cable clamp or cable tie, see Illustration 3.11.
6. Tighten cable glands securely.
Illustration 3.11 Wiring for Enclosure Sizes A4–A5, B1–B4, and
C1–C4
12
®
VLT PROFIBUS DP MCA 101
Wiring procedure for enclosure sizes D, E, and F
1.
2.
3.
4.
5.

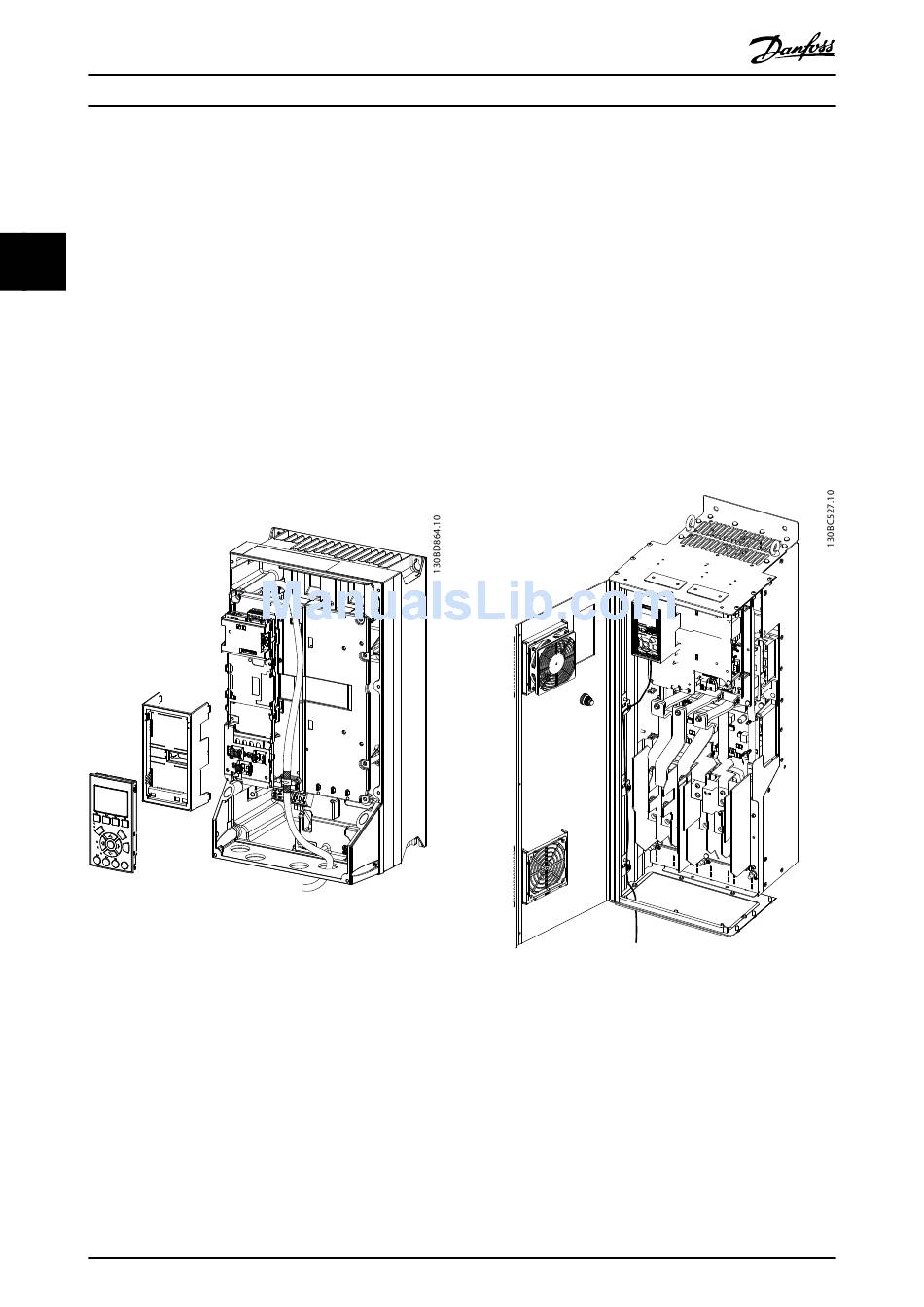

Illustration 3.12 Wiring for Enclosure Sizes D, E, and F
Danfoss A/S © 07/2015 All rights reserved.
Mount the fieldbus connector on the fieldbus
option (terminals 62, 63, 66, and 67).
Prepare the fieldbus cable by stripping a section
of the cable insulation. Keep unshielded wire as
short as possible. For cable specifications, refer to
chapter 3.7.2 Cable Specifications. For fieldbus
cable requirements, see chapter 3.7.3 Bus Segment
Requirements.
Connect the fieldbus cable wires to the terminals
according to the colour code of the wires, see
Illustration 3.10.
Fix the cable screen to the metal base plate using
cable clamp or cable tie, see Illustration 3.12.
Tie down the cable and route it with other
control wires inside the unit, see Illustration 3.12.
