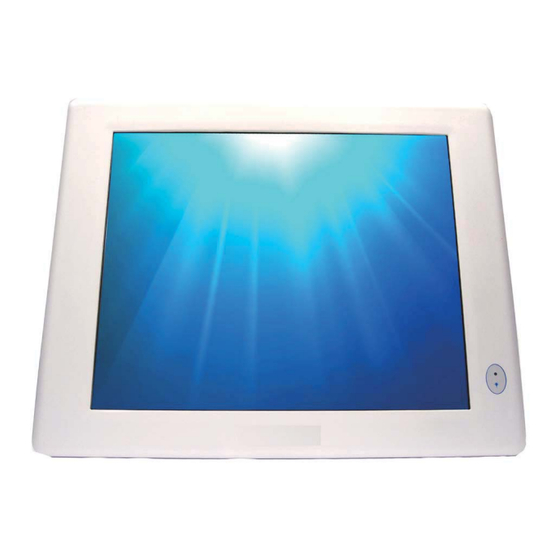

- Page 1 KPC-1561 ® 15” Fanless Industrial Panel PC with Dual Core Intel ® Atom™ Processor D2550 + Intel NM10 Express Chipset User’s Guide KPC-1561 User’s Manual...
-
Page 2: Table Of Contents
Panel Mounting................... 22 Chapter 3 AMI BIOS Setup..................24 Overview..................... 24 Main Menu ..................25 Advanced Menu.................. 26 Boot Menu ..................39 Security Menu..................40 Save & Exit Menu ................40 Chapter 4 Driver Installation .................. 42 KPC-1561 User’s Manual... -
Page 3: Figures & Tables
Figure 8 VESA Mounting Hole Locations ........... 21 Figure 9 Panel Mount Cut-out hole and maximum panel thickness ... 22 Figure 10 Panel Mounting ................23 Table 1 KPC-1561 product specifications ..........12 Table 2 BIOS Main Menu ................25 Table 3 Advanced Menu................26 Table 4 Advanced Menu –... -
Page 4: Kpc-1561 User's Manual
Figures & Tables Table 17 Advanced Menu –H/W Monitor............ 38 Table 18 Boot Menu ................... 39 Table 19 Security Menu ................40 Table 20 Save & Exit Menu ................ 40 KPC-1561 User’s Manual... -
Page 5: Safety Instructions
Turning off the system power switch does not remove power to components. When Working Inside a Computer Before taking covers off a computer, perform the following steps: Turn off the computer and any peripherals. KPC-1561 User’s Manual... -
Page 6: Preventing Electrostatic Discharge
ESD workstation or grounded. This will discharge any static electricity that may have built up in your body. When transporting a sensitive component, first place it in an antistatic container or packaging. KPC-1561 User’s Manual... -
Page 7: Instructions For Lithium Battery
Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e.g. to the collecting points for disposal of batteries) KPC-1561 User’s Manual... -
Page 8: Preface
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. KPC-1561 User’s Manual... -
Page 9: Maintaining Your Computer
Buildings in which climate is controlled usually maintain an acceptable level of humidity for system equipment. However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an KPC-1561 User’s Manual... - Page 10 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. KPC-1561 User’s Manual...
-
Page 11: Chapter 1 Introduction
Introduction Overview The KPC-1561 Fanless Panel PC is combining the latest Intel® Atom™ processor with the high integration of the Intel® NM10 Express chipset. Featured are DDR3 800/1066MHz SODIMM up to 4GB, includes a 2.5" SATA hard drive or a solid-state drive (SSD). -
Page 12: Product Specifications
OS Support Windows 7 Dimensions 410 mm x 315 mm x 82.46 mm (WxDxH) Environment Operation Temp: 0ºC 50ºC Storage Temp.: -20ºC 60ºC Humidity: 0% - 95% Certification CE, FCC Class A Table 1 KPC-1561 product specifications KPC-1561 User’s Manual... -
Page 13: System Tour
Power Input The supplied power adapter converts AC power to DC for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter. KPC-1561 User’s Manual... - Page 14 The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings. Line-IN (Blue) The Line-in jack is designed to take input from a higher-powered sound source. PCI Slot The PCI slot enables user to insert one add-on card for expansion. KPC-1561 User’s Manual...
-
Page 15: Mechanical Dimensions
Chapter 1 Mechanical Dimensions 409.99 x 315 x 82.46 mm (W x D x H) Figure 2 Mechanical Dimensions KPC-1561 User’s Manual... -
Page 16: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the VGA/ HDMI cable from your display to the VGA/ HDMI port. HDMI Figure 3 VGA/ HDMI KPC-1561 User’s Manual... -
Page 17: Figure 4 Connect Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your KPC-1561 does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. Figure 4 Connect USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. - Page 18 COM 3 COM 1 COM 2 COM 4 COM 6 COM 5 COM 1 , COM 2 Half Duplex Full Duplex Port RS-232 RS-422 RS-485 RS-485 DATA- DATA+ Half Duplex Full Duplex Port RS-232 RS-422 RS-485 RS-485 KPC-1561 User’s Manual...
-
Page 19: Figure 6 Com Ports
COM3 ~ COM6 Signal DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator Figure 6 COM ports KPC-1561 User’s Manual... -
Page 20: Figure 7 Turning On The System
Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of the KPC-1561 Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system... -
Page 21: Vesa Mounting
Use 4 screws with the appropriate length for your mounting bracket. Figure 8 VESA Mounting Hole Locations NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. The VESA mounting kit is optional. KPC-1561 User’s Manual... -
Page 22: Panel Mounting
The Panel PC can be panel mounted and comes with brackets and screws for this purpose. The required cutout for panel mounting and maximum panel thickness is shown below. Figure 9 Panel Mount Cut-out hole and maximum panel thickness KPC-1561 User’s Manual... -
Page 23: Figure 10 Panel Mounting
Chapter 2 Below are the demonstrations of how to do panel mounting. Step1 Tightening the screws as shown right. Step2 Done Figure 10 Panel Mounting KPC-1561 User’s Manual... -
Page 24: Chapter 3 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. KPC-1561 User’s Manual... -
Page 25: Main Menu
+- Change Opt. Frequency 1067 MHz (DDR3) F1: General Help System date [Thu 03/08/2012] F2: Previous Values System time [15:58:19] F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. KPC-1561 User’s Manual... -
Page 26: Advanced Menu
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled KPC-1561 User’s Manual... -
Page 27: Table 4 Advanced Menu – Display Configuration
Fixed Graphics Memory Size Options: 128MB, 256MB IGFX – Boot Type Options: VBIOS Default,HDMI Active LVDS Active LVDS LVDS 1 LVDS Panel Color Options: 24Bit LVDS Panel Type Options: 1024X768 24Bit 1CH LVDS 1 Backlight Control – Voltage 2.5V KPC-1561 User’s Manual... -
Page 28: Table 5 Advanced Menu –Power Management Configuration
Resume From S3 By PS/2 Mouse Options: Disabled, Enabled Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled EUP Power Saving Mode Options: Disabled, Enabled Watchdog Timer Configuration WDT Function [Disabled] Options: Disabled, Enabled KPC-1561 User’s Manual... -
Page 29: Table 6 Advanced Menu –Cpu Advanced Configuration
S a v e & E x i t [ AHCI ] Configure SATA as SATA Port 1 TOSHIBA MK8046 (80.0G) SATA Port 2 Not Present Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Configure SATA as Options: IDE, AHCI KPC-1561 User’s Manual... -
Page 30: Table 8 Advanced Menu –Pci Bus Driver Version V 2.05.02
64 PCI Bus Clocks 192 PCI Bus Clocks 96 PCI Bus Clocks 224 PCI Bus Clocks 128 PCI Bus Clocks 248 PCI Bus Clocks VGA Palette Snoop Options: Disabled, Enabled PERR# Generation Options: Disabled, Enabled SERR# Generation Options: Disabled, Enabled KPC-1561 User’s Manual... -
Page 31: Table 9 Advanced Menu –Usb Configuration
F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Legacy USB Support Options: Disabled, Enabled, Auto EHCI hand-off Options: Disabled, Enabled Mass Storage Device Options: Auto, Floppy, Forced FDD, Hard Disk, CD-ROM KPC-1561 User’s Manual... -
Page 32: Table 10 Advanced Menu – Super Io Configuration
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 KPC-1561 User’s Manual... -
Page 33: Table 12 Advanced Menu – Super Io Configuration – Serial Port
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 Serial Port 2 Type Options: RS232, RS422, RS485 KPC-1561 User’s Manual... -
Page 34: Configuration
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 IO=2F0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 IO=2E0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 KPC-1561 User’s Manual... -
Page 35: Table 14 Advanced Menu – Super Io Configuration – Serial Port
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 IO=2F0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 IO=2E0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 KPC-1561 User’s Manual... -
Page 36: Table 15 Advanced Menu – Super Io Configuration – Serial Port
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 IO=2F0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 IO=2E0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 KPC-1561 User’s Manual... -
Page 37: Table 16 Advanced Menu – Super Io Configuration – Serial Port
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 IO=2F0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 IO=2E0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 KPC-1561 User’s Manual... -
Page 38: Table 17 Advanced Menu –H/W Monitor
+- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80 ºC , 85 ºC, 90 ºC KPC-1561 User’s Manual... -
Page 39: Boot Menu
F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off Boot Option #1 Options: UEFI, SATA PM: Disabled KPC-1561 User’s Manual... -
Page 40: Security Menu
Discard Changes and Reset Enter: Select +- Change Opt. Save Options F1: General Help Save Changes F2: Previous Values Discard Changes F3: Optimized Defaults F4 Save & Exit Restore Defaults ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. KPC-1561 User’s Manual... - Page 41 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. KPC-1561 User’s Manual...
-
Page 42: Chapter 4 Driver Installation
You can download the drivers for the KPC-1561 from our website and install as instructed there. For other operating systems, please contact us.
