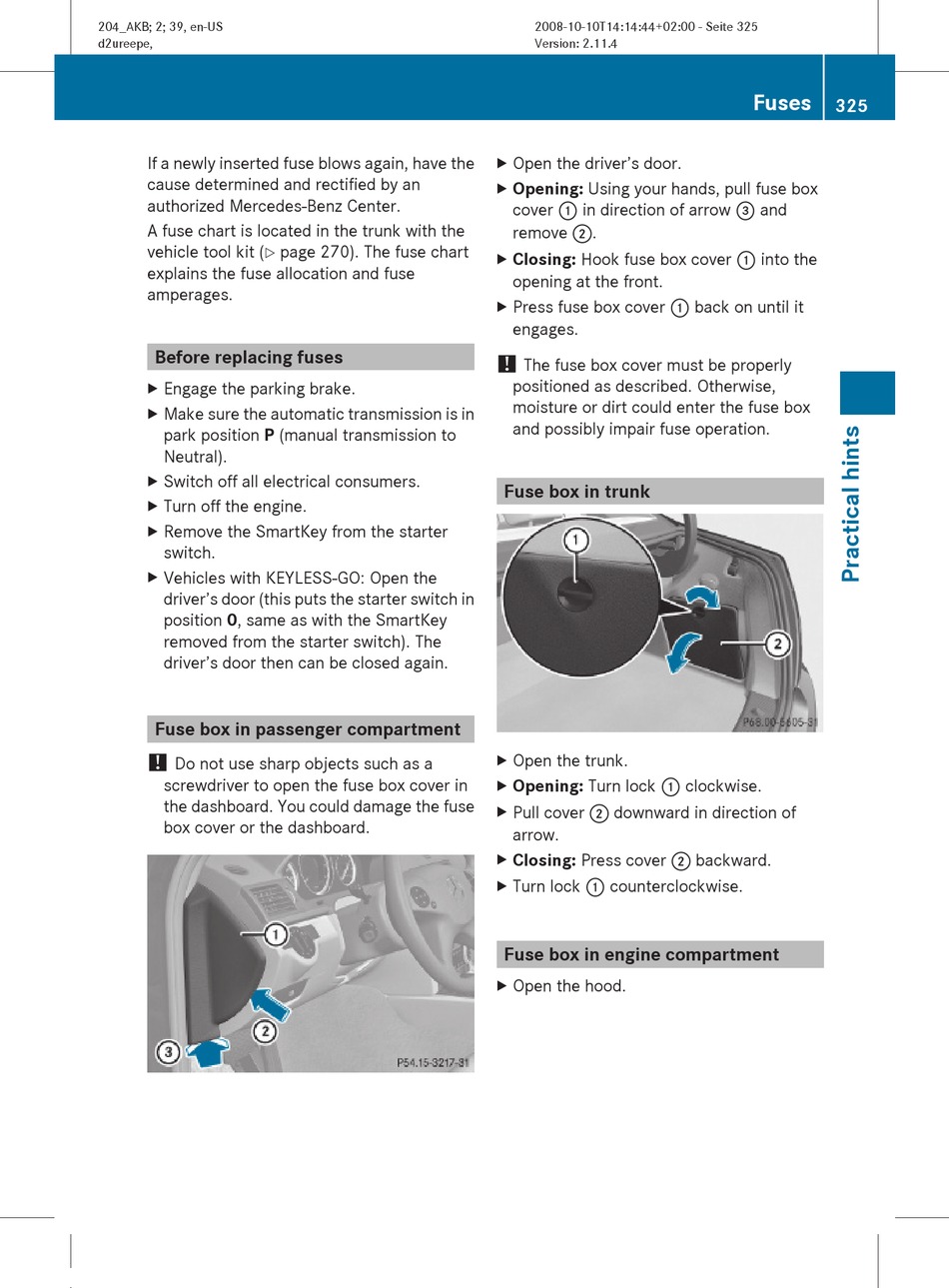

Mercedes-Benz C-Class Operator's Manual page 327

204_AKB; 2; 39, en-US
d2ureepe,
If a newly inserted fuse blows again, have the
cause determined and rectified by an
authorized Mercedes-Benz Center.
A fuse chart is located in the trunk with the
vehicle tool kit ( Y
explains the fuse allocation and fuse
amperages.
Before replacing fuses
X
Engage the parking brake.
X
Make sure the automatic transmission is in
park position P (manual transmission to
Neutral).
X
Switch off all electrical consumers.
X
Turn off the engine.
X
Remove the SmartKey from the starter
switch.
X
Vehicles with KEYLESS-GO: Open the
driver's door (this puts the starter switch in
position 0, same as with the SmartKey
removed from the starter switch). The
driver's door then can be closed again.
Fuse box in passenger compartment
! Do not use sharp objects such as a
screwdriver to open the fuse box cover in
the dashboard. You could damage the fuse
box cover or the dashboard.
page 270). The fuse chart
2008-10-10T14:14:44+02:00 - Seite 325
Version: 2.11.4
X
Open the driver's door.
X
Opening: Using your hands, pull fuse box
cover : in direction of arrow = and
remove ;.
X
Closing: Hook fuse box cover : into the
opening at the front.
X
Press fuse box cover : back on until it
engages.
! The fuse box cover must be properly
positioned as described. Otherwise,
moisture or dirt could enter the fuse box
and possibly impair fuse operation.
Fuse box in trunk
X
Open the trunk.
X
Opening: Turn lock : clockwise.
X
Pull cover ; downward in direction of
arrow.
X
Closing: Press cover ; backward.
X
Turn lock : counterclockwise.
Fuse box in engine compartment
X
Open the hood.
Fuses
325
