204_AKB; 2; 39, en-US
d2ureepe,

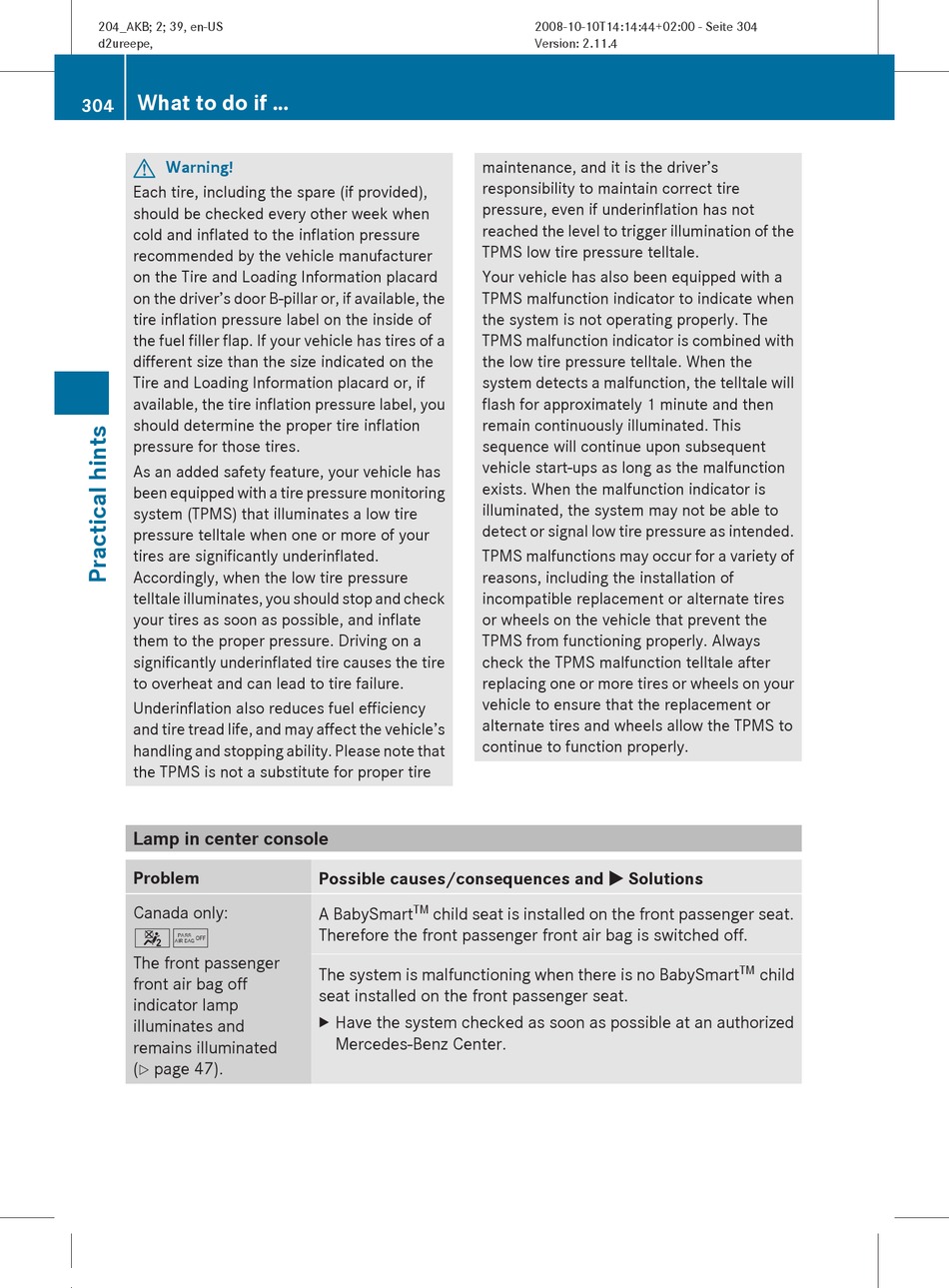

What to do if ...
304
G
Warning!
Each tire, including the spare (if provided),
should be checked every other week when
cold and inflated to the inflation pressure
recommended by the vehicle manufacturer
on the Tire and Loading Information placard
on the driver's door B-pillar or, if available, the
tire inflation pressure label on the inside of
the fuel filler flap. If your vehicle has tires of a
different size than the size indicated on the
Tire and Loading Information placard or, if
available, the tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires are significantly underinflated.
Accordingly, when the low tire pressure
telltale illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly underinflated tire causes the tire
to overheat and can lead to tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle's
handling and stopping ability. Please note that
the TPMS is not a substitute for proper tire
Lamp in center console
Problem
Canada only:
45
The front passenger
front air bag off
indicator lamp
illuminates and
remains illuminated
(
Y
page 47).
maintenance, and it is the driver's
responsibility to maintain correct tire
pressure, even if underinflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The
TPMS malfunction indicator is combined with
the low tire pressure telltale. When the
system detects a malfunction, the telltale will
flash for approximately 1 minute and then
remain continuously illuminated. This
sequence will continue upon subsequent
vehicle start-ups as long as the malfunction
exists. When the malfunction indicator is
illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of
incompatible replacement or alternate tires
or wheels on the vehicle that prevent the
TPMS from functioning properly. Always
check the TPMS malfunction telltale after
replacing one or more tires or wheels on your
vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS to
continue to function properly.
Possible causes/consequences and X Solutions
TM
A BabySmart
child seat is installed on the front passenger seat.
Therefore the front passenger front air bag is switched off.
The system is malfunctioning when there is no BabySmart
seat installed on the front passenger seat.
X
Have the system checked as soon as possible at an authorized
Mercedes-Benz Center.
2008-10-10T14:14:44+02:00 - Seite 304
Version: 2.11.4
TM
child
