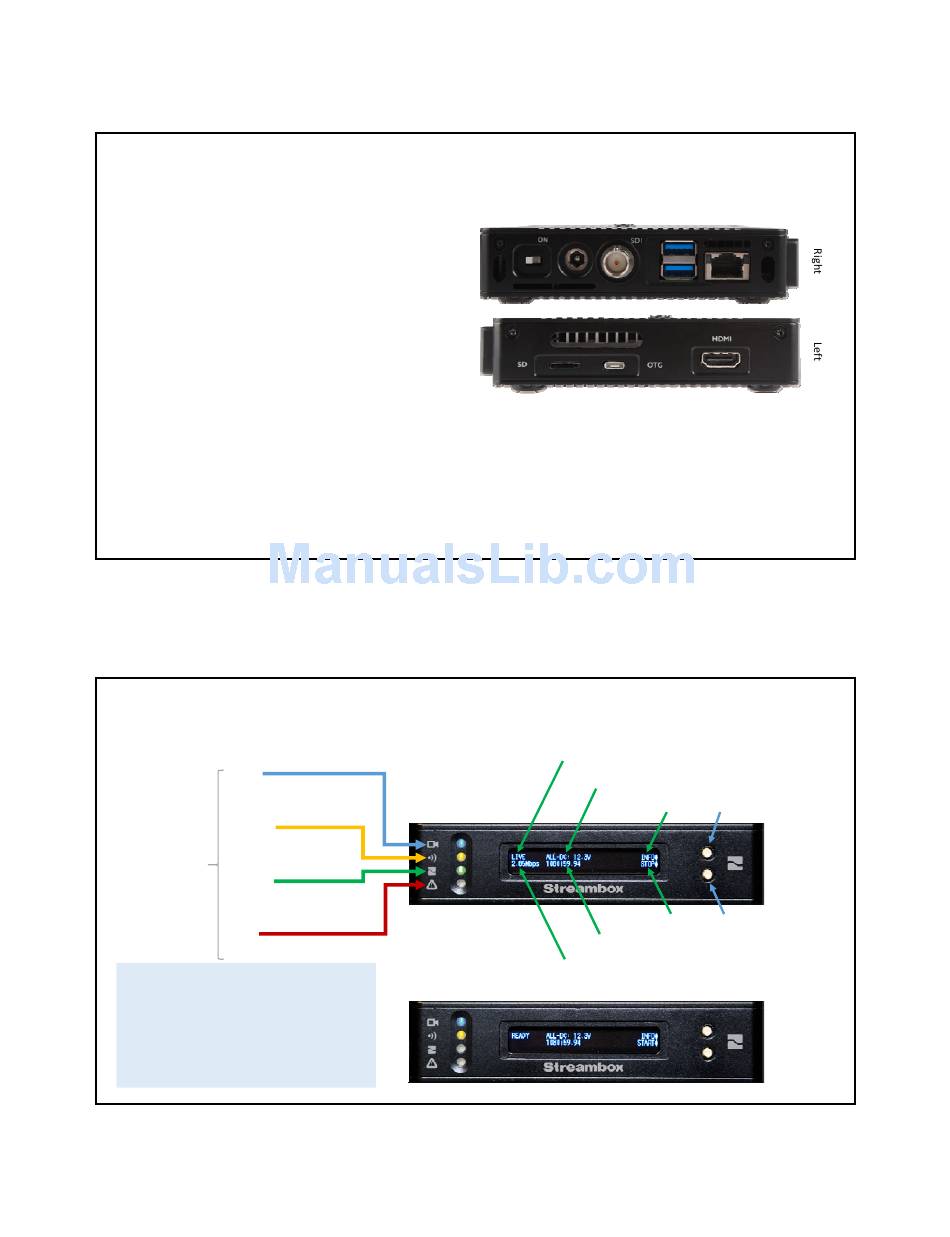

Making the Right Connections
• Connect the power source
• Connect a video source via SDI in
or HDMI in
• Connect LAN with IP service*
• Turn power switch on
• Unit will start streaming automatically with a good video source and Internet
connection – the Green "streaming" LED will flash
• If either video source or Internet connection is insufficient the Red alert LED
will flash with a text explanation on the LCD screen
*Use LAN connection for setup. Subsequent use will support either LAN, WiFi, and WWAN (mobile modems),
or ALL bonded together.
Figure 1. Initial, Home Screen
Blue
Video Connected
Yellow
Internet Connected
Status Icons &
LED Beacons
Green
Live Streaming (flashes)
Red
Alert (flashes)
Actions**
INFO: 2 sec press → Custom Preset
INFO: Single press → Network IP's
(Fig. 4)
STOP: Single press → Stop streaming
START: Single press → Start streaming
START: 2 sec press → ABN Preset
(Fig. 3)
**
State changes require active video and network connections
Streaming Video
Ready to Stream Video
(Fig. 3)
(see Fig. 1, next page)
Indicates Live Streaming
Power Voltage
Action of Top Button*
Action of Bottom Button*
Video Format
* Micro is position responsive so
Streaming Bitrate
the Top Button is always the button
on the top (Fig. 2)
|
SIDE
|
