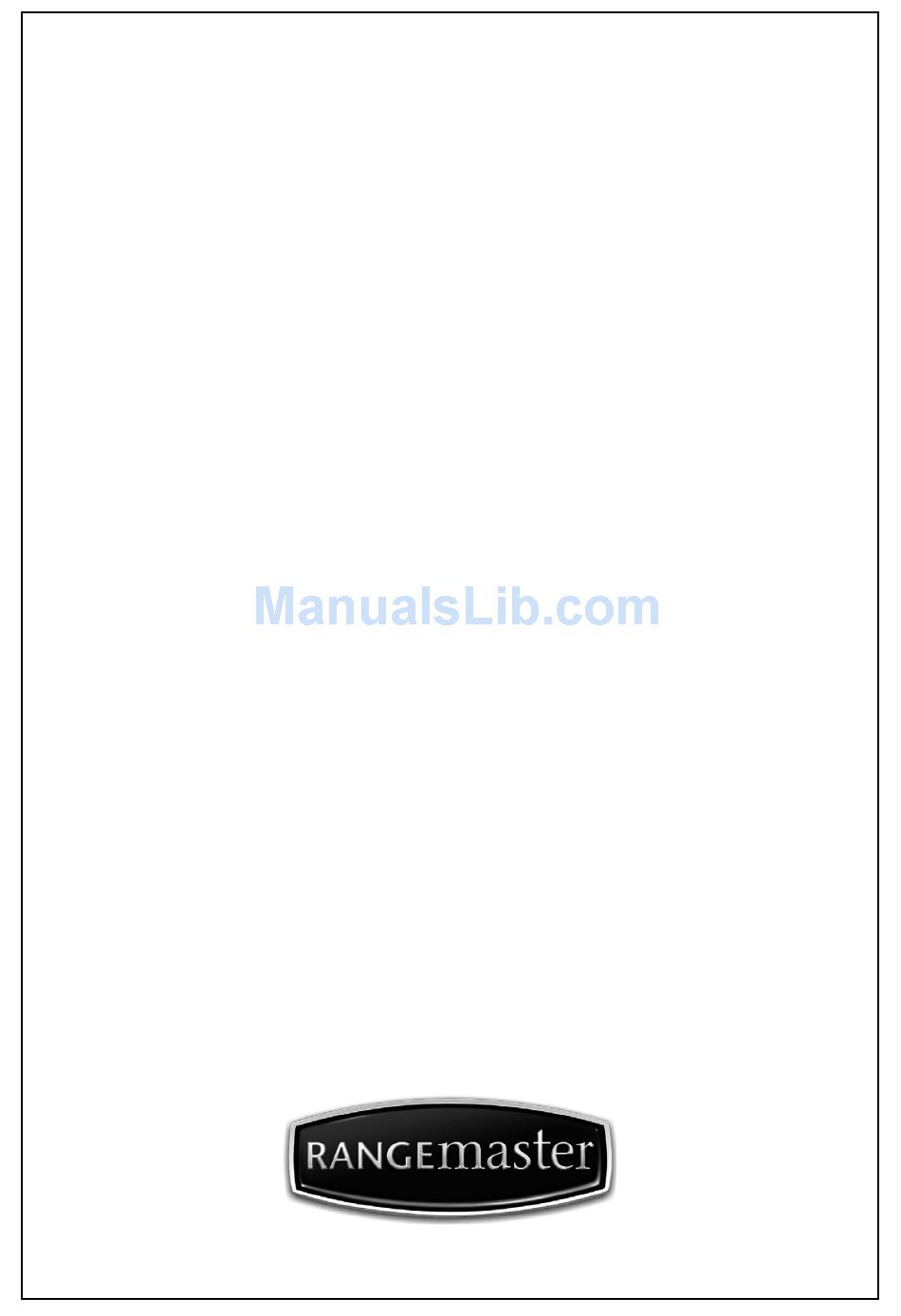

Page 1: Electric Oven

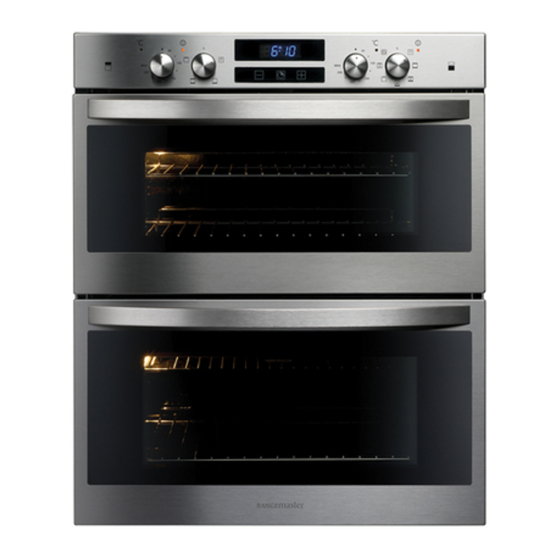

R7247 Electric Oven User Guide & Installation & Service Instructions U109924 - 02... -
Page 2: Table Of Contents
Contents Before You Start... Oven Overview Cooking Tips Cooking Table Cleaning Your Oven Troubleshooting Installation Circuit Diagram Technical Data 10. Warranty/After Sales Service... -
Page 3: Before You Start
1. Before You Start... Thank you for buying a Rangemaster oven. It should give you many years trouble-free cooking if installed and operated correctly. It is important that you read this section before you start, particularly if you have not used an electric oven before. -
Page 4: Oven Overview
Similar items being cooked will need to be swapped around for even cooking. This means that foods requiring diff erent temperatures can be cooked together, using the cooler zone in the lower half of the oven and hotter area to the top. ArtNo.030-0006 ArtNo.030-0006 ArtNo.030-0006... - Page 5 It is also possible to bake on two shelves at one time, although they will need to be swapped over during the cooking time, as the heat at the top of the oven is greater than at the base, when using this function.
-
Page 6: The Clock
To Stop the Oven Cooking Time This function is used to set the time at which an oven is to stop. It can be set to turn off at any time over the following 24-hour period. - Page 7 To Start and then Stop the Oven using the Timer This is a semi-automatic function that allows you to set the ‘cook time’ , which is the duration you want the oven to cook for and the ‘stop time’ , which is the time of day at which you want the oven to stop cooking.
-
Page 8: Cooking Tips
Other containers should be placed centrally. Keep all trays and containers away from the back of the oven, as overbrowning of the food may occur. For even browning, the maximum recommended size of a baking tray is 340mm (13½”) by 340mm (13½”). -
Page 9: Cooking Table
Food is cooked at lower temperature in a fan oven than in a conventional oven. When using recipes, reduce the fan oven temperature by 10°C and the cooking time by 5-10 minutes. The temperature in the fanned oven does not vary with height in the oven so you can use any shelf. Conventional Oven... -
Page 10: Cleaning Your Oven
Do not mix different cleaning products – they may react together with hazardous results. All parts of the oven can be cleaned with hot soapy water – but take care that no surplus water seeps into the appliance. - Page 11 Removing the Oven Shelf Supports The oven shelf supports can be easily removed for cleaning. First remove the all of the oven shelves and the grill pan. Squeeze the two lower wires of the oven shelf frame together to clear the retaining peg (Fig.5-3). Turn the frame into the oven cavity and drop clear of the supporting holes.
-
Page 12: Troubleshooting
Stand well back and allow any steam to disperse. The oven fan is noisy. The note of the fan may change as the oven heats up – this is perfectly normal. Grill not cooking properly. Are you using the pan and trivet supplied with the cooker? Is the pan being used on the runners, not the floor of the compartment? Is the grill tray pushed fully... -
Page 13: Installation
All relevant British Standards / Codes of Practice • The relevant Building / IEE regulations INSTALLATION DocNo.064-0005 - Installation - R7247 oven Location of the Oven The oven may be installed in a kitchen/kitchen diner but NOT in a room containing a bath or shower. -
Page 14: Positioning The Oven
It is recommended that if installing a built-in oven directly under the hob then there should be a minimum air gap of 20mm between the oven and the bottom of the hob. Failure to maintain a suitable clearance may impair the performance of the hob. -
Page 15: Customer Care
� � � not be connected to an ordinary domestic power point. � The mains terminal is situated on the back of the oven � ArtNo.325-0006 - BI oven electrical connections (Fig.7-2). Connect the cable to the correct. Check that the links are correctly fitted and that the terminal screws are tight. -
Page 16: Circuit Diagram
8. Circuit Diagram DocNo.094-0006 - Circuit diagram R7247 oven... -
Page 17: Technical Data
Energy efficiency class on a scale of A (more efficient) to G (less efficient) Usable volume (litres) Size Maximum total electric load at 230V 50Hz: 3.75kW DocNo.104-0006 - Technical data - R7247 oven 720 mm 594 mm 540 mm Main multi-function... -
Page 18: Warranty/After Sales Service
10. Warranty/After Sales Service DocNo.111-0003 Warranty No.10 If consultation or technical assistance is needed, please provide the local authorised service agent with the purchase invoice and the product code/serial number. The 2 years free maintenance for the operation of the appliance started from the date of purchase of this product. - Page 20 DocNo.000-0001 - Back cover Rangemaster �������������� ����������� ������� ����� w w w.ra n g e m a s t e r.c o .u k ArtNo.000-0003 CE logo...
