Appearance

Front Panel

Front Panel View

2 OSN|M Hardware Overview

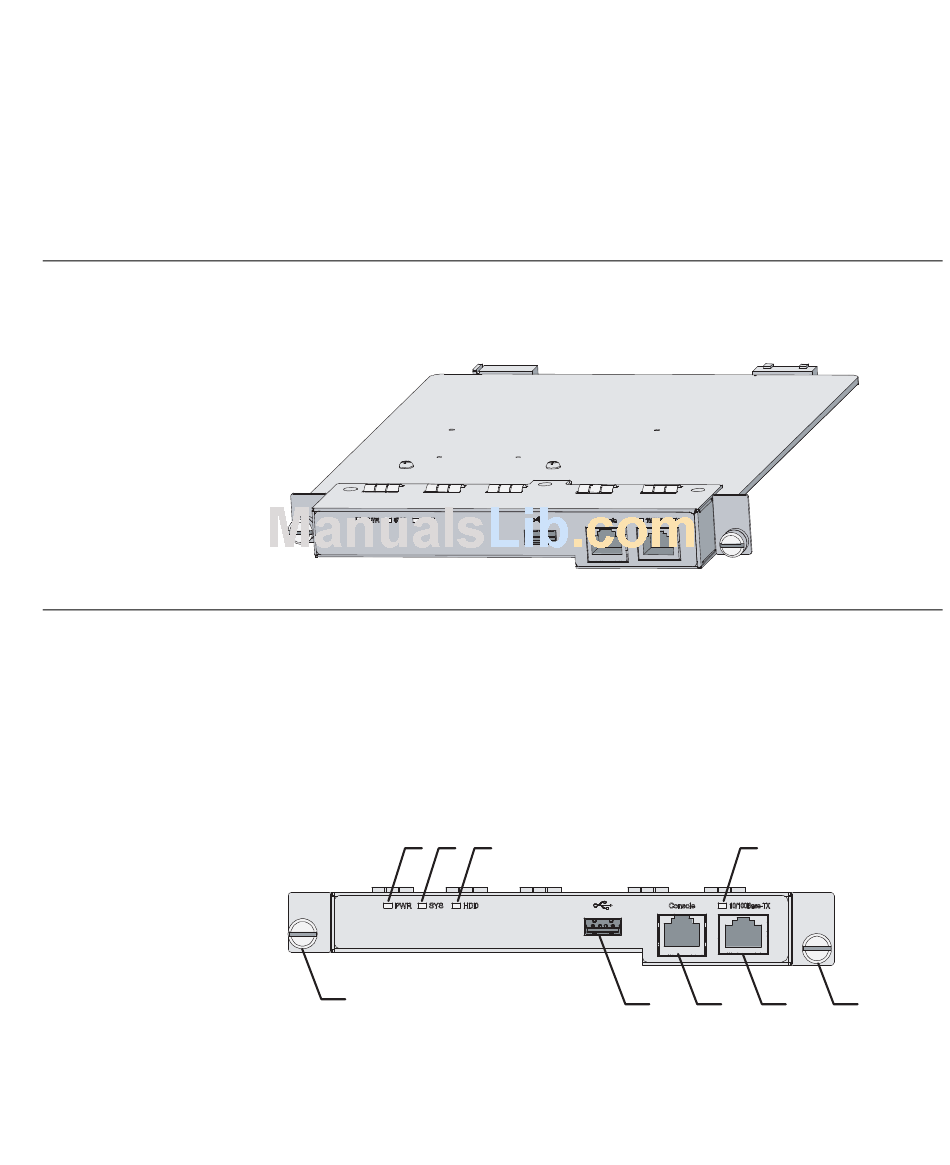

Figure 1 displays the front view of the OSN|M.
Figure 1 OSN|M appearance
This section describes the OSN|M's front panel.
An OSN|M provides one USB 2.0 interface, one console port, and one
10/100 Base-TX management Ethernet port. Figure 2 illustrates the front
panel of an OSN|M.
Figure 2 OSN|M front panel
(1) (2) (3)
(5)
(1) PWR LED
(3) HDD LED
(5) Captive screw
(7) Console port
(8)
(2) SYS LED
(4) LED for the management Ethernet port
(6) 10/100 Base-TX management Ethernet port
(8) USB 2.0 interface
Appearance
(4)
(7) (6) (5)
