Starter Guide
Read this guide first.
Please read this guide before operating this product.
After you nish reading this guide, store it in a safe place for future reference.
Setting Up the Machine to Suit Your Needs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About the Supplied Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Turn ON the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setting a Paper Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing the Driver/Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Perform Useful Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Replacing Toner Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Open the next page.

Advertisement

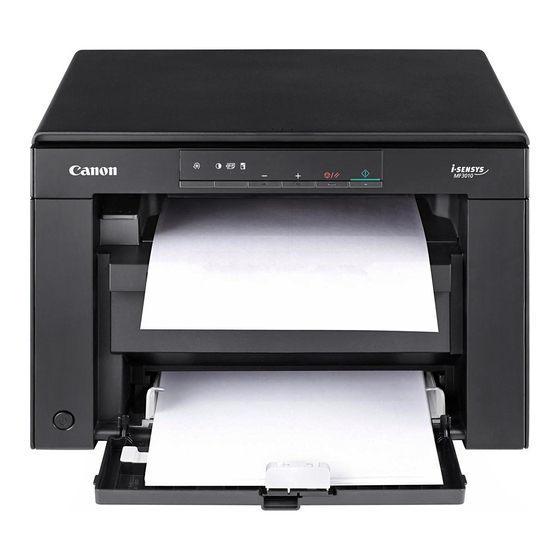

   Also See for Canon imageCLASS MF3010

   Summary of Contents for Canon imageCLASS MF3010

  • Page 1: Table Of Contents

    Starter Guide Open the next page. Read this guide first. Please read this guide before operating this product. After you nish reading this guide, store it in a safe place for future reference. Setting Up the Machine to Suit Your Needs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 About the Supplied Manual .
  • Page 2 632 mm 100 mm 100 mm 100 mm 572 mm 608 mm 100 mm Paper cassette 100 mm...
  • Page 3: Remove The Packing Materials

    Carry the machine to the installation site. Remove the packing materials. Check! Did you remove all the packing materials?
  • Page 4 Prepare the toner cartridge. Next Page...
  • Page 5 Check! Did you remove all the packing materials?
  • Page 6 Load the paper.
  • Page 7: Setting Up The Machine To Suit Your Needs

    Connecting to a Computer and Preface Installing the Machine Appendix Installing the Drivers Setting Up the Machine to Suit Your Needs Determine which machine functions (Copy, Print, Scan) you intend to use, and make settings according to the flowchart below. Start settings. Required Operations Connecting the Power Cord P. 3 Print Copy Scan Settings in a Computer For Windows Installing the Software P. 5 Settings are now complete.
  • Page 8: About The Supplied Manual

    About the Supplied Manual Starter Guide This manual Read this manual first. This manual describes the settings • Preface for setting up the machine and • Installing the Machine installing the software. Be sure to • Connecting to a Computer and Installing the Drivers read this manual before using the • Appendix machine. Quick Reference Guide Read this manual next. Q u ic k R e G u id fe re n This manual describes the basic use xxx xxx xxx xxx xxx xxx De ns xxx xxx xxx xxx xxx xxx...
  • Page 9: Connecting The Power Cord

    Connecting to a Computer and Preface Installing the Machine Appendix Installing the Drivers Connecting the Power Cord Ensure that the machine is off. Plug the power plug into the Plug the power plug into a AC power socket. power outlet. Do not connect the USB cable. Connect the USB cable when installing the software. Turn ON the Machine Turn ON the machine.
  • Page 10: Setting A Paper Type

    Setting a Paper Type Press [ ] or [ ] until Press [ ] (Menu setting Press [ ], and set the menu to “P” is displayed. key), and then start the menu be able to change the settings. operation. Check! Press [ ] or [ ] to Press [ ] to confirm change the setting values. the setting. The display and the paper types are matched as follows. Display Paper type Plain paper Plain paper L Heavy paper 1 Heavy paper 2 Rough paper Press [ ] (Menu setting key) Envelopes to exit the menu operation. Transparencies Labels...
  • Page 11: Installing The Driver/software

    Connecting to a Computer and Preface Installing the Machine Appendix Installing the Drivers Installing the Driver/Software Use the supplied User Software CD-ROM to install the drivers and software. The details of the installation is not described in this manual, see the MF Driver Installation Guide. Insert the CD-ROM. Click. We ask for the user’s cooperation for the Product Extended Survey Program. For details, see the descriptions on the screen. Click when referring to the MF Driver Installation Guide. Click.
  • Page 12: Perform Useful Tasks

    Per form Useful Tasks Copy Scan • • Saving the Documents Using Operations from a Computer Enlarged/Reduced Copies You can enlarge or reduce standard size documents to copy on standard • Scanning with the MF Toolbox size paper or specify the copy ratio in percentage. • Collating You can sort copies into sets arranged in page order. Documents • Reduced Layout You can reduce multiple documents to copy them onto one sheet. Data 2 on 1 4 on 1 • Scanning from an Application • Scanning with the WIA Driver • Copying ID Card You can make a copy of a 2-sided card onto one side of paper.
  • Page 13: Clearing Paper Jams

    Connecting to a Computer and Preface Installing the Machine Appendix Installing the Drivers Clearing Paper Jams If the [ ] indicator is blinking, a paper jam occurs inside the printer. Follow the procedures in this section to remove the jammed paper. For details on the procedure for clearing paper jams This manual indicates only areas where paper jams occur. For details on the procedures, see the e-Manual. Paper cassette Inside the machine...
  • Page 14: Replacing Toner Cartridge

    Follow the steps in the procedure below before replacing the toner cartridge. The machine continues printing until the toner runs out completely. e-Manual “Before Replacing the Toner Cartridge” When the print quality is still unacceptable If the problem persists after you have followed the steps in the procedure below, replace the toner cartridge. e-Manual “Replacing the Toner Cartridge” Replacing the Toner Cartridge with a New One See the e-Manual and replace toner cartridge. For optimum print quality, using Canon genuine toner cartridges is recommended. Model name Supported Canon genuine toner cartridge MF3010 Canon Cartridge 325 About the Supplied Toner Cartridge The average yield of the included toner cartridge is as follows. Average yield* 1 : 700 sheets Canon Cartridge 325 Starter * 1 The average yield is on the basis of “ISO/IEC 19752”* under the condition that A4 size paper is used for printing with the default print density setting. * 2 ”ISO/IEC 19752” is an ISO standard method for “the determination toner cartridge yield for monochrome electrophotographic printers and multi-function devices that contain printer components. ” The term ISO stands for International Organization for Standardization.
  • Page 15: Power Supply

    • Do not place the following items on the machine. WARNING - Necklaces and other metal objects - Cups, vases, flowerpots, and other containers filled with water or liquids • Do not damage or modify the power cord. Also, do not place heavy objects on the power cord or pull on or excessively bend it. This can cause electrical damage, If these items come into contact with a high-voltage area inside the machine, this resulting in fire or electrical shock. may result in a fire or electrical shock. If these items are dropped or spilled inside the machine, immediately turn off the • Keep the power cord away from all heat sources. Failure to do so can cause the power switches of the machine and computer (1) and disconnect the interface power cord insulation to melt, resulting in a fire or electrical shock. cable if it is connected (2). Then, unplug the power plug from the AC power outlet • The power cord should not be taut, as this may lead to a loose connection and (3) and contact your local authorized Canon dealer. cause overheating, which could result in a fire. • The power cord may become damaged if it is stepped on, fixed with staples, or if heavy objects are placed on it. Continued use of a damaged power cord can lead to an accident, such as a fire or electrical shock. • Do not plug or unplug the power plug with wet hands, as this can result in electrical shock. • Do not plug the power cord into a multiplug power strip, as this can result in a fire or electrical shock. • Do not bundle up or tie up the power cord in a knot, as this can result in a fire or electrical shock. • Insert the power plug completely into the AC power outlet. Failure to do so can result in a fire or electrical shock.
  • Page 16 - If the laser beam should escape and enter your eyes, exposure may cause voltage components inside the machine which may result in a fire or electrical damage to your eyes. shock. • If you operate this machine in manners other than the control, adjustment, and • Electrical equipment can be hazardous if not used properly. Do not allow children operating procedures prescribed in this manual, this may result in hazardous to touch the power cord, cables, internal gears, or electrical parts. radiation exposure. • If the machine makes an unusual noise or emits smoke, heat, or an unusual • This machine is confirmed as the class 1 laser product in IEC60825-1:2007. smell, immediately turn off the power switches of the machine and computer and disconnect the interface cable if it is connected. Then, unplug the power Maintenance and Inspections plug from the AC power outlet and contact your local authorized Canon dealer. Continued use can result in a fire or electrical shock. • When cleaning the machine, turn off the machine and computer, and unplug the • Do not use flammable sprays near the machine. If flammable substances come interface cables and power plug. Failure to do so can result in a fire or electrical into contact with electrical parts inside the machine, this may result in a fire or shock. electrical shock. • Unplug the power plug from the AC power outlet periodically and clean the area • Always turn off the power switches of the machine and computer, and then around the base of the power plug’s metal pins and the AC power outlet with a unplug the power plug and interface cables before moving the machine. Failure dry cloth to remove all dust and grime. In damp, dusty, or smoky locations, dust to do so can damage the cables or cords, resulting in a fire or electrical shock. can build up around the power plug and become damp, which can cause a short • Confirm that the power plug or power connector is inserted completely after...
  • Page 17: Temperature And Humidity Conditions

    Connecting to a Computer and Preface Installing the Machine Appendix Installing the Drivers Consumables • There are burn marks on the power plug. - The blade on the power plug is deformed or broken. - The power is turned OFF or ON when bending the power cord. - The coating of the power cord is damaged, cracked, or dented. WARNING - A part of the power cord becomes hot. • Do not dispose of used toner cartridges in open flames. This may cause the toner • Check regularly that the power cord and plug are not handled in the following to ignite, resulting in burns or fire. manner. Failure to do so can result in a fire or electrical shock. • Do not store toner cartridges or paper in a location exposed to open flames. This - The power connector is loosened. may cause the toner or paper to ignite, resulting in burns or fire. - Stress is being applied to the power cord by a heavy object or by fixing it with • When disposing of a toner cartridge, place the toner cartridge into a bag to staples.
  • Page 18: Power Supply Requirements

    Power Supply Requirements Contacting Service Center 220 to 240 V, 50/60 Hz When you have a problem with your machine and you cannot solve it, even if you refer to the manuals or online help, please contact your local authorized Canon dealer from whom you purchased the equipment (if under warranty), or with whom IMPORTANT you have a servicing contact. Precautions when connecting the power cord • Do not connect this machine to an uninterruptible power source. Legal Notices • Use an AC power outlet exclusively for the machine. Do not use the other sockets of the AC power outlet. • Do not plug the power plug into the auxiliary outlet on a computer. Model Names Do not use the same AC power outlet for both the machine and any of the following equipment. - Copy machine MF3010 (F162100) - Air conditioner International ENERGY STAR Program...
  • Page 19: Users In New Zealand

    Connecting to a Computer and Preface Installing the Machine Appendix Installing the Drivers Disclaimers CAUTION The information in this document is subject to change without notice. Use of controls, adjustments, or performance of procedures other than those CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, specified in the manuals for the machine may result in hazardous radiation exposure. EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT Users in New Zealand LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES This equipment does not fully meet Telecom’s impedance requirements. OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS Performance limitations may occur when used in conjunction with some parts of MATERIAL. the network. Telecom will accept no responsibility should difficulties arise in such circumstances. Legal Limitations on Usage of Your Product and...
  • Page 20 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan CANON MARKETING JAPAN INC. 16-6, Konan 2-chome, Minato-ku, Tokyo 108-8011, Japan CANON U.S.A., INC. One Canon Park, Melville, NY 11747, U.S.A. CANON EUROPA N.V. Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands CANON CHINA CO. LTD.
