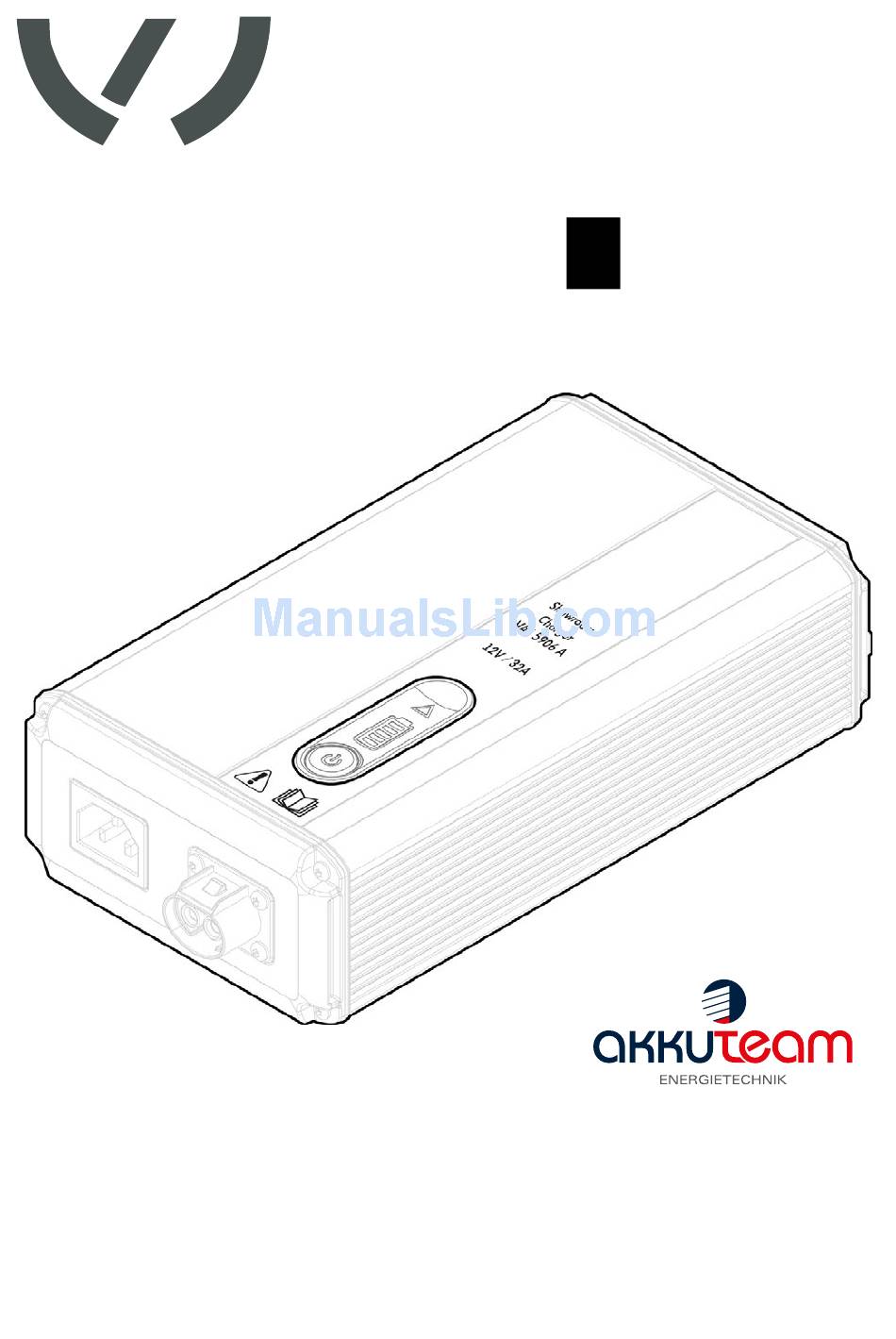

- Page 1 VAS 5906A Operating Manual Battery Charger Theodor-Heuss-Straße 4 D-37412 Herzberg am Harz Germany Phone +49 5521 9981-0 Fax +49 5521 9981-11 vas-service@akkuteam.de www.akkuteam.de...
-
Page 3: Table Of Contents
Inhaltsverzeichnis Introduction 5 Safety informations 5 Safety informations explanation 5 General remarks 6 Utilisation in accordance with "intended purpose" 6 Environmental conditions 7 Mains connection 7 Risks from mains current and charging current 7 Risks from acid, gases and vapours ... - Page 4 Charging the battery 20 Starting charging 20 Charging 21 Finishing charging 21 Interrupting charging 22 Stopping charging 22 Restarting charging 22 Troubleshooting 22 Safety 22 Protective devices tripping 23 Characteristics 24 Safety ...
-
Page 5: Introduction
Safety informations DANGER! "DANGER!" Identifies an immediately-threatening hazard. If it is not avoided, death or serious injuries will result. WARNING! "WARNING!" Indicates a possibly dangerous situation. If it is not avoided, death or serious injury may result. CAUTION! "CAUTION!" Indicates a situation where damage or injury could occur. -
Page 6: General Remarks
General All safety and danger notices on the charger remarks – must be kept in a legible state. (continuation) – must not be damaged/marked. – must not be removed. – must not be covered, pasted or painted over. For the location of the safety and danger notices on the charger, refer to „General remarks“... -
Page 7: Environmental Conditions
Environmental Operation and/or storage of the charger outside the stipulated conditions area will be deemed as "not in accordance with the intended purpose". The manufacturer shall not be liable for any damage resulting from such improper use. For exact information on permitted environmental conditions, please refer to the "Technical data"... -
Page 8: Risks From Acid, Gases And Vapours
Risks from Batteries contain acid which is harmful to the eyes and skin. acid, gases During charging, gases and vapours are released that can harm and vapours health and are highly explosive in certain circumstances. – Only use the chargers in well ventilated areas to prevent the accumulation of explosive gases. -
Page 9: Protecting Yourself And Others
Protecting While the charger is in operation, keep all persons, especially yourself and children, out of the working area. If, however, there are people in others the vicinity, – warn them about all the dangers (hazardous acids and gases, danger from mains and charging current, etc), –... -
Page 10: Emc Device Classifications
EMC device Devices with emission class A: classifications – are only designed for use in an industrial setting. – can cause conducted and emitted interference in other areas. Devices with emission class B: – satisfy the emissions criteria for residential and industrial areas. -
Page 11: Guarantee And Liability
Do not carry out any modifications, alterations, etc. without the manufacturer’s consent. Dispose of in accordance with the applicable national and local regulations. Guarantee The warranty period for the charger is 2 years from the date of and liability invoice. However, the manufacturer will not accept any liability if the damage was caused by one or more of the following: –... -
Page 12: Safety Marking
Safety Chargers with the EC marking satisfy the fundamental require- marking ments of the low-voltage and electromagnetic compatibility directive. Devices with the TÜV test mark satisfy the requirements of the relevant standards in Canada and USA. Devices with the TÜV test mark satisfy the requirements of the relevant standards in Japan. -
Page 13: General Informations
The VAS 5906A charger is based on a high-frequency technology. This charger represents the latest techno- logy. It is well suited to charge lead/acid, AGM, EFB, GEL and lithium-ion batteries up to approx. -
Page 14: Warning Notices Affixed To The Device
Showroom Charger, Type: VAS 5906 A, ASE 447 037 01 000 IP40 INPUT: AC 230V 50Hz 560W, OUTPUT: DC 14.4V 32A Made in China. For service please contact: vas-service@akkuteam.de Do not use the functions until you have fully read all the operating instructions. -
Page 15: Before Commissioning
Read the user guide carfully. If there are any uncertainties, please contact accordance with akkuteam or a qualified person. Connect red clamp to (+) and black clamp "intended to (-). The charger is intended for use with lead/acid, AGM, EFB, GEL and purpose"... -
Page 16: Safety Strategy - Standard Protective Features
NOTE! Inadequately dimensioned electrical installations can lead to serious damage. The incoming mains lead and its fuse must be dimensioned to suit the local power supply. The technical data shown on the rating plate applies. Safety strategy – The new chargers do not just boast functional features. In terms of standard protective safety, the chargers are also equipped to the highest standards. -
Page 17: Control Elements And Connections
Control elements and connections General NOTE! As a result of firmware updates, you may find that there are functions available on your device that are not described in these operating instructions or vice versa. Cer- tain illustrations may also differ slightly from the actual con- trol elements on your device. -
Page 18: Plugging In Options
Plugging in NOTE! Risk of damage to charger and accessories. Only options plug in options and system add-ons when the mains plug is unplugged and the charging cables are disconnected from the battery. Connections No.: Function housing bottom AC Input – mains socket (10) Mains cable socket No.:... -
Page 19: Assembly
Assembly NOTE! Protection IP44 is only guaranteed for the upright position. If the charger is installed in a switch cabinet (or a similar sealed area), then forced-air ventilation must be provided to ensure adequate heat dissipation. There should be a clearan- ce of 10 cm (3.94 in.) all around the charger. -
Page 20: Charging The Battery
Charging the battery Start charging CAUTION! Risk of damage when attempting to charge a faulty battery, or if using the incorrect charging voltage. Before beginning charging, ensure that the battery to be charged is fully functional and the charging voltage of the charger matches the battery voltage. -
Page 21: Charging
Charging 6. Charging begins automatically after approx. 2 seconds. 7. A set of five LEDs show the battery’s charge level. 0 – 20 % 40 % 60 % 80 % 95 – 100 % 8. After the battery is fully charged, the charger delivers 13.8 V with a maximum of 32 A. This is indicated by slow pulsing of all LEDs. Conservation charging: Once the battery is fully charged, the charger automatically switches to conservation charging to prevent the battery from self-discharging. -
Page 22: Interrupting Charging
Interrupting charging Stopping NOTE! Risk of damage to connection sockets and plugs. Do charging not disconnect or unplug the charging cable while charging. 1. Press the Stop/Start button to stop charging. 2. Charging stopped – operating indicator flashes. Restarting 3. Press the Stop/Start button to continue charging. charging Troubleshooting The charger analyses the battery again after the charging phase. -
Page 23: Protective Devices Tripping
CAUTION! Inadequate PE conductor connections can cause serious injury and damage. The housing screws provide a suitable PE conductor connection for earthing (grounding) the housing and must NOT be replaced by any other screws that do not provide a reliable PE conductor connection. Protective Red warning triangle is flashing: devices tripping... -
Page 24: Characteristics
Characteristics Safety WARNING! Operating the equipment incorrectly can cause serious injury and damage. Follow the battery manufactu- rer’s instructions. The battery must not be connected to the charger while setting parameters. Characteristics Characteristic Battery Capacity [Ah] 1[A] 1[V/Cell] 2[A] 2 [V/Cell] 12 V / Block Batteries –... -
Page 25: Technical Data
Technical data Electrical data Mains voltage ~ 230 V AC input Mains frequency 50 / 60 Hz Mains current max. 2.9 A eff. Mains fuse protection max. 4 A Efficiency max. 95 % Effective power max. 560 W Power consumption (standby) max. -
Page 26: Standards
USB port at the side panel of the charger. Necessary information will be given along with the software. In case of a device defect the maintenance are offered by akkuteam Energietechnik GmbH. Please contact us by indicating the device type and serial number: vas-service@akkuteam.de... -
Page 27: Warranty
GmbH. The warranty expires when the battery charger was not used in accordance with the operating manual. In case of a defect, akkuteam will at its own discretion repair or replace only the defective components. Service and akkuteam Energietechnik GmbH shipping address: Theodor-Heuss-Straße 4... - Page 28 Theodor-Heuss-Straße 4 vas-service@akkuteam.de Phone: +49 55 21 / 99 81 - 0 Energietechnik GmbH D-37412 Herzberg am Harz www.akkuteam.de Fax: +49 55 21 / 99 81 - 11 Traction Batteries | Chargers | Generators | Emergency lighting | Stationary Battery Systems | UPS equipment...
