I
NSTALLATION
Please refer to the table below for the features of individual camera models.
GE Camera Range
Camera Options:
Mono
Color
Color / Mono
Resolution (TVL)
Sensitivity
IR Sensitive
CCD Size (inches)
Sony HyperHAD CCD
Sony ExviewHAD CCD
TM
2 Video Outputs (1V p-p)
Adjustable Gamma
Automatic Gain Control
Phase Adjust
Normal AGC/Super AGC
Backlight Compensation
BLC on/off
2 Color Balance Modes
ATW / AWB
Auto Iris connection
DD / VD / AES lens
Line Lock/Internal Sync
Supply:
12 VDC / 24 VAC
85 VAC – 265 VAC
© 2003 GE Interlogix BV. All rights reserved.
4464-3Axxxx
I
NSTRUCTIONS
450 450 600 600 600 600 380 380 480 480 480 480 480 480 480 480
0.03 0.03 0.02 0.02 0.01 0.01 0.5 0.5 0.3 0.3 0.1 0.1 0.3 0.3 0.1/0 0.1/0
1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3
TM
GE Series of Cameras
Advertisement
Table of Contents

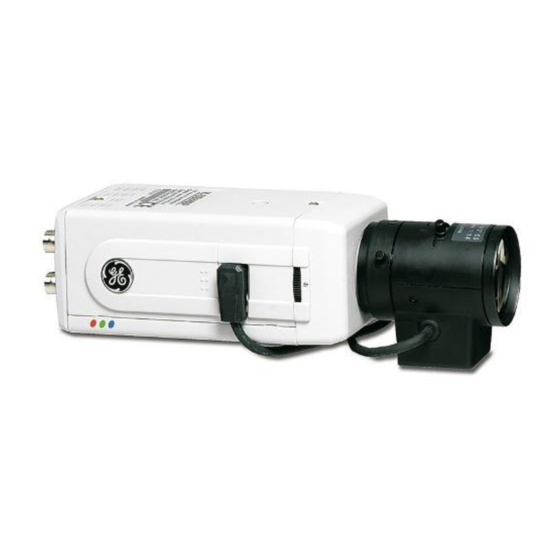

Summary of Contents for GE Interlogix KTC-511P
- Page 1 BLC on/off 2 Color Balance Modes ATW / AWB Auto Iris connection DD / VD / AES lens Line Lock/Internal Sync Supply: 12 VDC / 24 VAC 85 VAC – 265 VAC © 2003 GE Interlogix BV. All rights reserved. 4464-3Axxxx...
-
Page 2: Table Of Contents
Installation Instructions NSTALLATION NSTRUCTIONS ABLE OF ONTENTS ....................3 EFORE EGIN .....................3 ENERAL ..................3 RODUCT AFETY .......................3 ENSES – S ................4 ENSES ET UP GUIDE ......................5 ETUP DIP S ..............7 ETTING THE WITCH 1.1.1 White Balance (ATW/AWB)..........8 1.1.2 Backlight Compensation (BLC ON)........8 1.1.3 Gamma Correction (r = .45 / r = 1) ........8 1.1.4 Synchronisation (L-LOCK/INT)..........8 1.1.5 Auto/Manual Switch (Day/Night only)........8... -
Page 3: Before You Begin
Installation Instructions EFORE EGIN ENERAL Thank you for choosing this advanced and high quality camera. Before connecting or operating this product, please read these instructions carefully. These instructions cover the entire range of the GE series of CCTV cameras. Note that not all cameras have all of the features described in this manual. As standard, all cameras within the range are fitted with an auto iris lens connector, adjustable back focus, and accept both C and CS lenses (with supplied adapter.) RODUCT... -
Page 4: Lenses - Set Up Guide
Installation Instructions • All GE cameras support the use of C and CS type lenses. Four types of lenses can be used with the digital range of cameras (see section Setup for pictures): • Fixed Iris and Manual Iris lenses are recommended for internal applications, and where the light levels are constant. -
Page 5: Setup
Installation Instructions ETUP WARNING:- Do not expose the unit to moisture. Slide out for Mounting control panel threads Iris lens plug Control Iris connector Back focus Thumbwheel locking panel thumbwheel screw and provided screwdriver Figure 1. Parts of the camera Note: Lens not included. - Page 6 Installation Instructions Phase adjust DIP switch buttons DD level Lens mode switch Figure 2. Camera controls If you are using a C-mount lens, screw on the C-mount adapter. Screw the appropriate lens to the camera. Set the lens mode switch (Figure 3) to correspond with the lens: •...
-
Page 7: Setting The Dip Switch
Installation Instructions Note: Figure 4 and Figure 5 show connections for the pins on the solder side of the lens plug. NC (no Damping Damping connection) (12 VAC coil (+) coil (–) power) Black White Driving Driving (ground) (video) coil (–) coil (+) Figure 4. -
Page 8: White Balance (Atw/Awb)
Installation Instructions 1.1.1 (ATW/AWB) HITE ALANCE ATW mode (default) In the ATW mode, the colour temperature is being monitored continuously, and the white balance is set automatically by an internal micro-controller. The operating colour temperature range is from 2500 to 9500 K. AWB mode When the switch is set to AWB (conventional white balance), a camera using white as its reference automatically adjusts the content of blue and red in the picture, depending on the... -
Page 9: Day/Night Switch (Day/Night Only)
Installation Instructions 1.1.6 IGHT WITCH IGHT ONLY When the AUTO/MANUAL switch is set to manual, the camera can be switched manually from daytime colour mode to nighttime B/W mode. ONNECTIONS See Figure 7 and perform the following: To local or test monitor To power supply... -
Page 10: Mon Out (Bnc)
Installation Instructions MON OUT (BNC) The monitor output BNC connector can accept the BNC connector of a local monitor or of a monitor used to test camera setup. PHASE A XTERNAL DJUSTMENT UTTONS CAUTION: The phase adjustment must be made by a qualified service person or installer. The vertical phase of the camera video signal can be synchronised to the phase of the AC power line by using a dual-trace oscilloscope to observe the video output signal (V-rate) of the camera and by adjusting the line-lock phase control buttons to line up the phases of both signals.
