INSTRUCTION MANUAL FOR COMPRESSORS MGF BABY 6/30 and
6/50
1) GENERAL INFORMATION
Compressor to be used only in dry atmosphere protected against
moisture and water.
In case flammable products are sprayed using compressed air
from your compressor : ensure proper ventilation of the
workingarea.
Do NOT alter safety valve (8) - or pressure regulatorsettings (
inside black box (0) ) to avoid dangerous workingconditions.
In case of abnormal noise, overheating or fumes : pull mains out
immediately.
Repairs : should be done by qualified personnel only or contact
Ideefiks vzw
Prior to repair or maintenance : depressurise the compressor – by
means of (4) - and disconnect from mains.
This compressor is suited for 230 V and 50 Hz. ( not for use in
USA ) and should be connected to an earthed electrical outlet.
2) TRANSPORT
New compressor picked-up at Ideefiks vzw – Obeeliks E-Shop :
The compressor is filled with the right amount of oil
The combined oil/airinlet (1) on the compressorhousing is
closed by means of a PVC stopper.
The air-inletfilter (1) is packed in a plastic bag and attached to
the oil/airinlet ( frontside of compressorhousing )
Compressormotorblock is blocked for transport with cardboard
strips between motor and casing.
In this described condition the compressor can be transported
in a safe way.
New compressor shipped to you by Ideefiks vzw – Obeeliks E-
Shop :
The compressor is NOT filled with oil. Oil is contained in the
package.
The combined oil/airinlet (1) on the compressorhousing is
closed by means of a PVC stopper.
1/5 Rev 0 14.12.2005
The air-inletfilter (1) is packed in a plastic bag and attached to
the oil/airinlet ( frontside of compressorhousing )
Compressormotorblock is blocked for transport with cardboard
strips between motor and casing.
The compressed air outletconnectors (6) on the
pressureregulator + manometer (3) are dismounted /
unscrewed and packed separately.
In this described condition the compressor can be transported
or shipped in a safe way.
Transport of your compressor :
Remove the air-inletfilter (1)
Close off the combined oil/airinlet (1) on the
compressormotorblock with the PVC stopper ; this will avoid
any spill of oil.
Keep the compressor in an upright position.
In this described condition the compressor can be transported
in a safe way.
For extra safety the motorblock can be blocked by means of
cardboard strips to be placed between motor and housing.

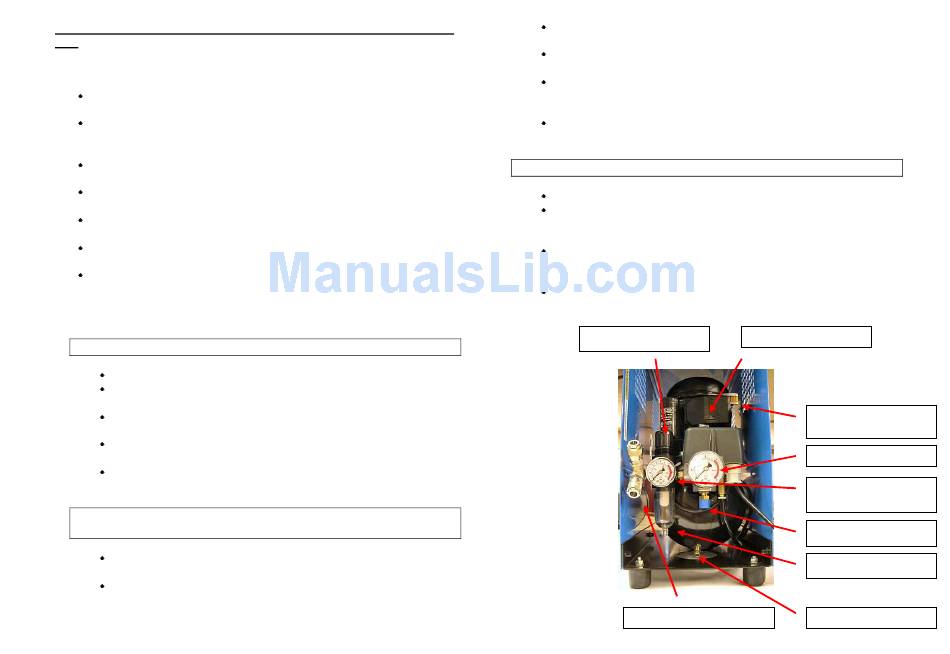

(7) Pressurereducer
(6) Quick Couplings NW 5
(0) Start / Stop
(1) Airfilter + oil filling
(2) Pressure in airtank
(3) Outlet pressure
(8) Safety Valve
(4) Drain moisturetrap
(5) Drain airtank
