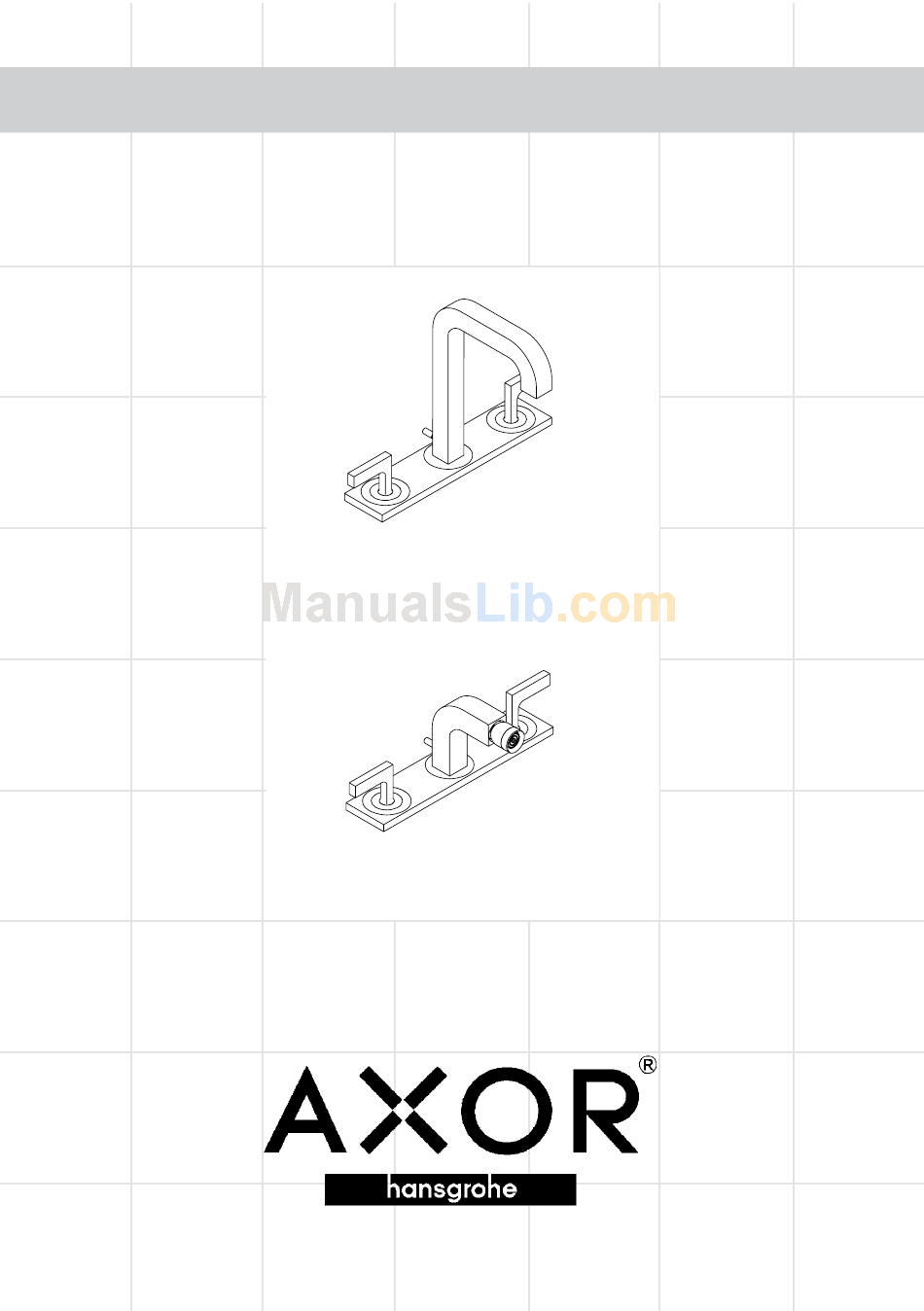

- Page 1 Installation Instructions / Warranty Citterio 39136XX1 39156XX1 Citterio 39236XX1...
-
Page 2: Technical Data

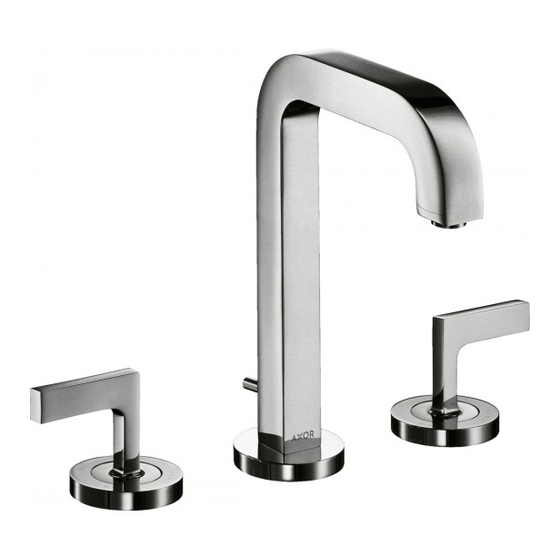

Axor Citterio Widespread Lav Mixer 39136XX1 Axor Citterio Bidet Mixer 39236XX1 39136XX1 User instructions Turn the right handle forward (clockwise) to turn the cold water on. Turn the handle back (counter-clockwise) to turn the cold water off. Turn the hot handle forward (counter-clockwise) to turn the hot water on. - Page 3 Assembly • Install the valves to the lavatory. • Install the valve mounting screws, but do not tighten them. • Install the spout to the handle assembly. Use a 5 mm allen wrench to install and tighten the spout retaining screws. •...
- Page 4 • Place a compression nut and ferrule over the spout tube. • Install the mounting angle. Tighten the compression nut by hand, then finish tightening with a wrench. • Screw the hot and cold connection hoses to the mounting angle. •...
-
Page 5: Install The Pop-Up Drain
Install the pop-up drain Remove the plunger assembly. Unscrew the drain outlet flange from the tee. Unscrew the tailpiece from the tee. Wrap the threads with plumbers’ thread tape and replace. Install the white, flexible sealing gasket to the flange. Place it in the sink outlet. From under the sink, install the black mack gas- ket, white friction ring and retainer nut to the flange. -
Page 6: Replacement Parts
Replacement Parts Cleaning Recommendation for Hansgrohe Products Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with regard to design and functionality. To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not covered under the Hansgrohe warranty. -
Page 7: Limited Lifetime Consumer Warranty
(i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: A. -
Page 8: Exclusions And Limitations
EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
