Installation Instructions / Warranty
Axor Citterio M
34316XX1

Advertisement

Table of Contents
loading

Related Manuals for Axor Citterio M 34316XX1

Summary of Contents for Axor Citterio M 34316XX1

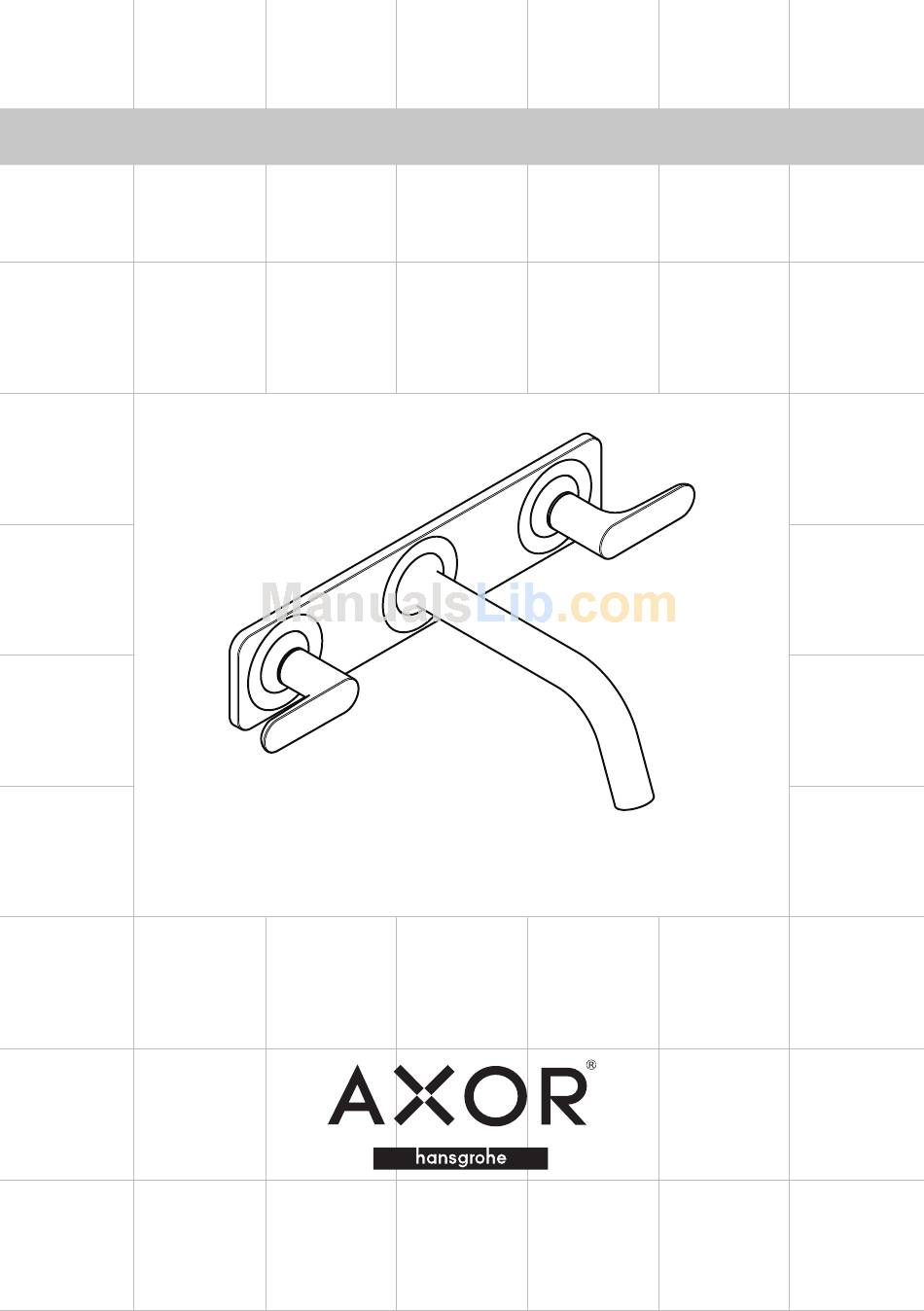

  • Page 1 Installation Instructions / Warranty Axor Citterio M 34316XX1...

  • Page 2: Technical Information

    Axor Citterio M Wall-mount Lavatory Faucet with Baseplate 34316XX1 Technical Information Max. flow rate Max. water pressure Recommended water pressure Recommended hot water temp. *Know and follow all applicable local plumbing codes when setting the temperature on your water heater.

  • Page 3: Installation

    Installation Remove the covers. Trim the plaster shields so that they extend 1/16” outside the surface of the finished wall Seal the wall around the plaster shields with waterproof sealant. Failure to seal the wall can lead to possible water damage. Use a 17 mm deep socket wrench to remove the cartridges.
  • Page 4 Push the extension spindle over the stem. Cut the exten- sion spindle so that it extends 3/16” outside the surface of the finished wall. Remove the plug from the spout port. Thread the coupling over the stem. Cut the coupling so that it extends ¼”...
  • Page 5 Add 1 ¾” to this measurement. Cut the connecting thread so that it is X + 1 ¾” long. Wrap the threads on the connecting thread with Teflon tape (1). Use an 8 mm Allen wrench to install it in the rough (). Do not overtighten the connecting thread! (3) Push the baseplate against the wall.
  • Page 6 Push the spout over the connector. Tighten the screw with a  mm Allen wrench. Push the handles over the snap connectors. In the off position, the handles should be horizontal. If one of the handles is not horizontal, remove it (1), turn it slightly (), and reinstall it (3).
  • Page 7 User Instructions Pivot the handle up to turn the water on. Pivot it down to turn the water off. In the “off” position, the handle is horizontal. If the flow of water diminishes over time, use the spray former tool to remove the spray former. Flush the spray former with clear water.

  • Page 8: Replacement Parts

    Replacement parts handle color ring set handle fixing set seal fixing set connecting thread spray former spout cpl. 5 mm flange hot cartridge cold cartridge spray former tool XX = colors 00 = chrome 8 = brushed nickel 11x M4x4 34095XX0 9897000 9893000...
  • Page 9 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.

  • Page 10: Limited Lifetime Consumer Warranty

    (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products.
  • Page 11 Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclu- sion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from State to State.
  • Page 12 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770-360-9880 • Fax 770-360-9887 www.hansgrohe-usa.com...
