Summary of Contents for Axor High Spout 38030XX1

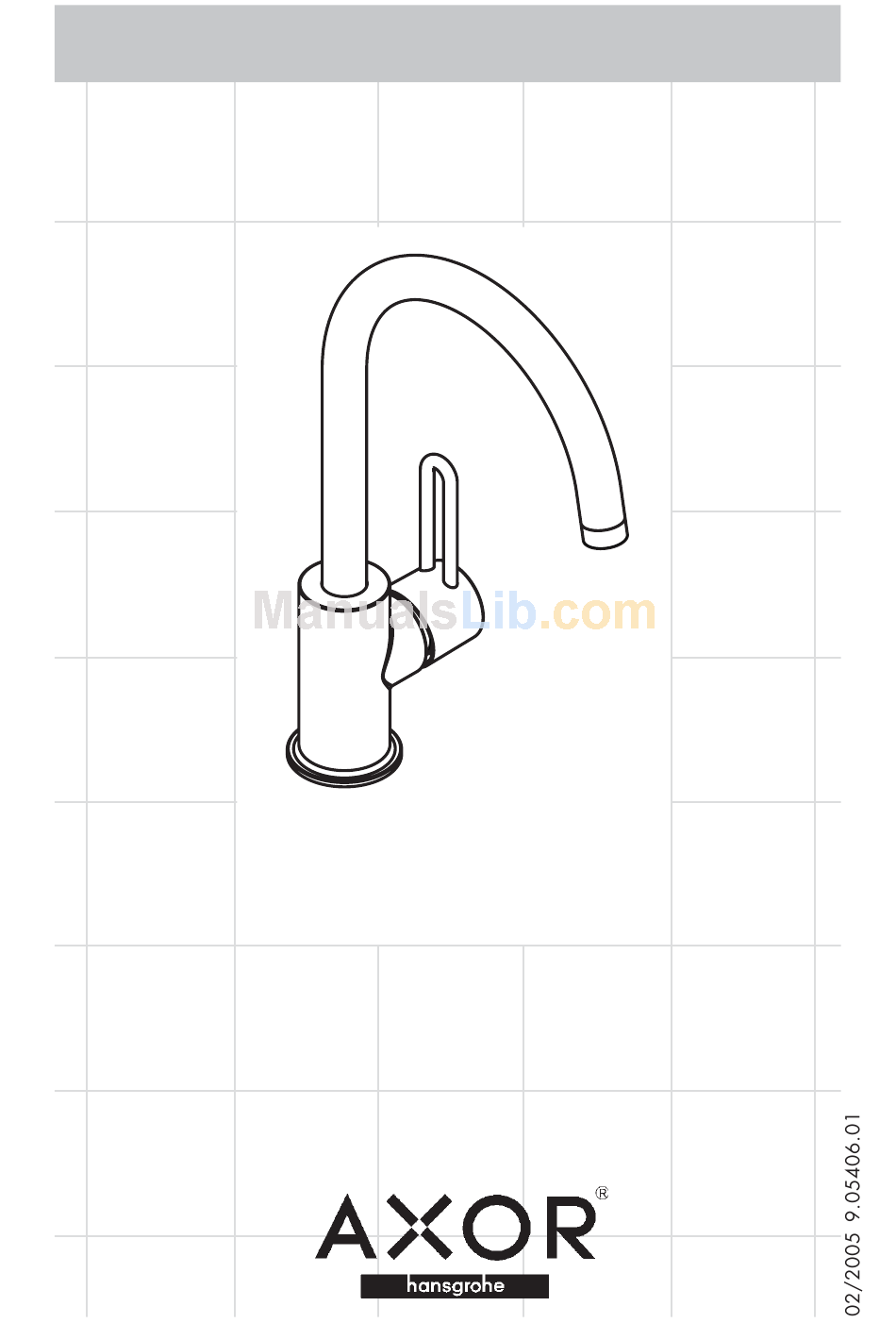

- Page 1 Installation Instructions / Warranty 38030XX1...
- Page 2 Single Control Lavatory Faucet 38030XX1 Technical Specification Maximum water pressure Recommended water pressure 14.5 - 72 psi Maximum hot water temp. Recommended hot water temp 120 Max. flow rate @ 45 psi Max. deck thickness Hole size in deck *Many municipalities require that the water heater be set no higher than 120 plumbing codes when setting the temperature on the water heater.
-
Page 3: Installation Instructions
Installation Instructions Sit the faucet with black sealing ring in the faucet hole on top of the • mounting surface. From beneath, install the friction washer, metal washer, and mounting nut. • Tighten the mounting nut, taking care not to overtighten. Check the position of the faucet. - Page 4 Re-set the high temperature limit stop (optional) This step should be taken if the faucet is to be used by small children or others who should be protected from scalding. Pull out the screw cover, located on the • bottom of the handle. Use a 3 mm allen wrench to loosen the •...
-
Page 5: Install The Pop-Up Drain
Install the pop-up drain Remove the plunger assembly. • Unscrew the drain outlet flange from the tee. • Unscrew the tailpiece from the tee. Wrap the threads with plumbers’ thread • tape and replace. Install the white, flexible sealing gasket to the flange. Sit it in the sink outlet. •... - Page 6 User Instructions Push the lever to the right to turn the water on. Push it backward to make the • water warmer, forward to make the water cooler. The spout will swivel a full 360 o . • Service Parts handle 38094XXX nut cover...
- Page 7 (i) for 1 year, with respect to Interaktiv and Retroaktiv products, and (ii) for 5 years, with respect to AXOR, ShowerPower and Pharo products.
- Page 8 THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship. Conditions, malfunctions or damage resulting from (1) improper installation, improper maintenance, misuse, abuse, negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning agents or “no rinse” cleaning products, or the use of the product in any manner contrary to the product instructions.
