Ozito UJC-860 Operation Manual

Ozito UJC-860 Operation Manual

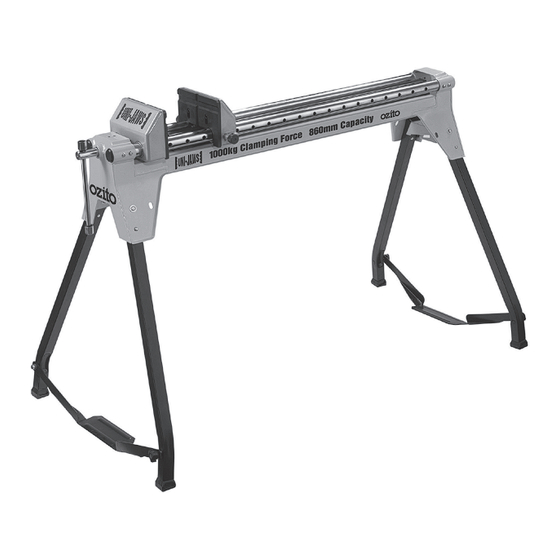

Uni-jaws 860 mm clamping capacity

Advertisement

Quick Links

UJC-860 manual.qxd
9/18/09
9:46 AM
Page 1
0812
Black
Magenta
Code: UJC-860
Cyan
Yellow
Date: 18/09/09 Edition: 02
Op: Even

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UJC-860 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito UJC-860

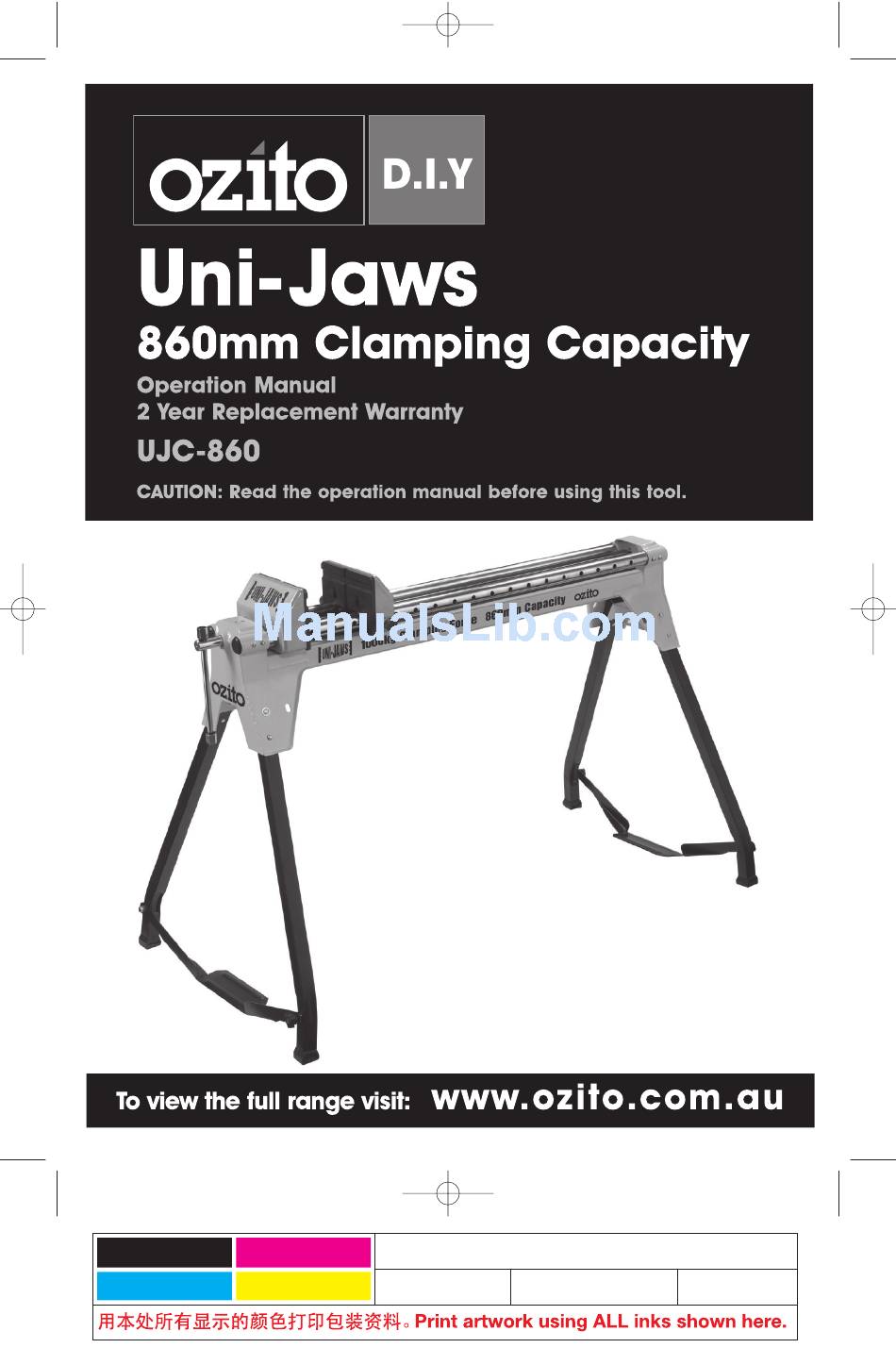

  • Page 1 UJC-860 manual.qxd 9/18/09 9:46 AM Page 1 0812 Black Magenta Code: UJC-860 Cyan Yellow Date: 18/09/09 Edition: 02 Op: Even...
  • Page 2: Specifications

    UJC-860 manual.qxd 9/27/09 12:32 PM Page 2 SPECIFICATIONS - MODEL NO. UJC-860 Jaw Size: 180mm x 75mm Clamping Capacity: 860mm Clamping Force: 1000kg Rail Diameter: 32mm Rail Detents: 18 x 50mm KNOW YOUR PRODUCT 1. Front vice jaw 11. Front legs (x2) 2.
  • Page 3: Table Of Contents

    UJC-860 manual.qxd 9/27/09 12:32 PM Page 3 TABLE OF CONTENTS SPECIFICATIONS…………………………………………. Page 1 KNOW YOUR PRODUCT………………………………… Page 1 INTRODUCTION………………………………………… Page 3 SAFETY INSTRUCTIONS……………………………….. Page 3 SETTING UP……………………………………………… Page 4 OPERATION……………………………………………… Page 6 MAINTENANCE …………….…………………………… Page 10 CONTENTS ……………………………………………… Page 10 WARRANTY……………………………………………….
  • Page 4: Introduction

    UJC-860 manual.qxd 9/27/09 12:32 PM Page 4 INTRODUCTION The Uni-Jaws are the ultimate portable work vice for the workshop. With a powerful clamping force of up to 1000kg and large vice jaws the Uni-Jaws will hold just about anything including timber, metal and even logs when fitted with the log jaws.
  • Page 5: Setting Up

    UJC-860 manual.qxd 9/27/09 12:32 PM Page 5 SAFETY INSTRUCTIONS (cont.) • When transporting Uni-Jaws in a vehicle always tie it down to prevent movement and possible damage. • Check to make sure that all fixing screws and knobs are tight and all legs are locked into position before operating the Uni-Jaws.
  • Page 6 UJC-860 manual.qxd 9/27/09 12:32 PM Page 6 SETTING UP (cont.) 5. To raise the opposite front leg first remove the front leg support brace (13) from the holding bracket (Fig. 5). Fig. 5 6. Fully raise the opposite front leg (Fig. 6) ensuring the locking pin clicks into the opposite pin hole.
  • Page 7: Operation

    UJC-860 manual.qxd 9/27/09 12:32 PM Page 7 OPERATION Adjusting the Front Vice Jaw 1. Rotating the front vice jaw clamping handle (5) will move the front vice jaw (1) backwards and forwards (Fig. 10). 2. Rotating in a clockwise direction moves the front...
  • Page 8 UJC-860 manual.qxd 9/27/09 12:32 PM Page 8 OPERATION (cont.) Clamping Material 1. Ensure the front vice jaw (1) is located towards the front of the Uni-Jaws. 2. Place the workpiece onto the vice rails in between the front vice jaw (1) and rear vice jaw (2) (Fig.
  • Page 9 UJC-860 manual.qxd 9/27/09 12:32 PM Page 9 OPERATION (cont.) 3. To replace the jaws first loosen the 2 hex screws (4) on the front jaw by rotating in an anti- clockwise direction using the 6mm hex key (19) (Fig. 19).
  • Page 10 2. Simply attach the mitre saw mounts to the Uni-Jaws vice rails and turn it into a handy mitre saw stand (Fig. 26). Fig. 25 Fig. 26 Call Ozito on toll-free 1800 069 486 for details on where to purchase the mitre saw mounts.
  • Page 11: Maintenance

    • Wipe away dirt and dust from the stand on a regular basis. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised personor by mishandling of the tool.
  • Page 12: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
