GETTING STARTED GUIDE

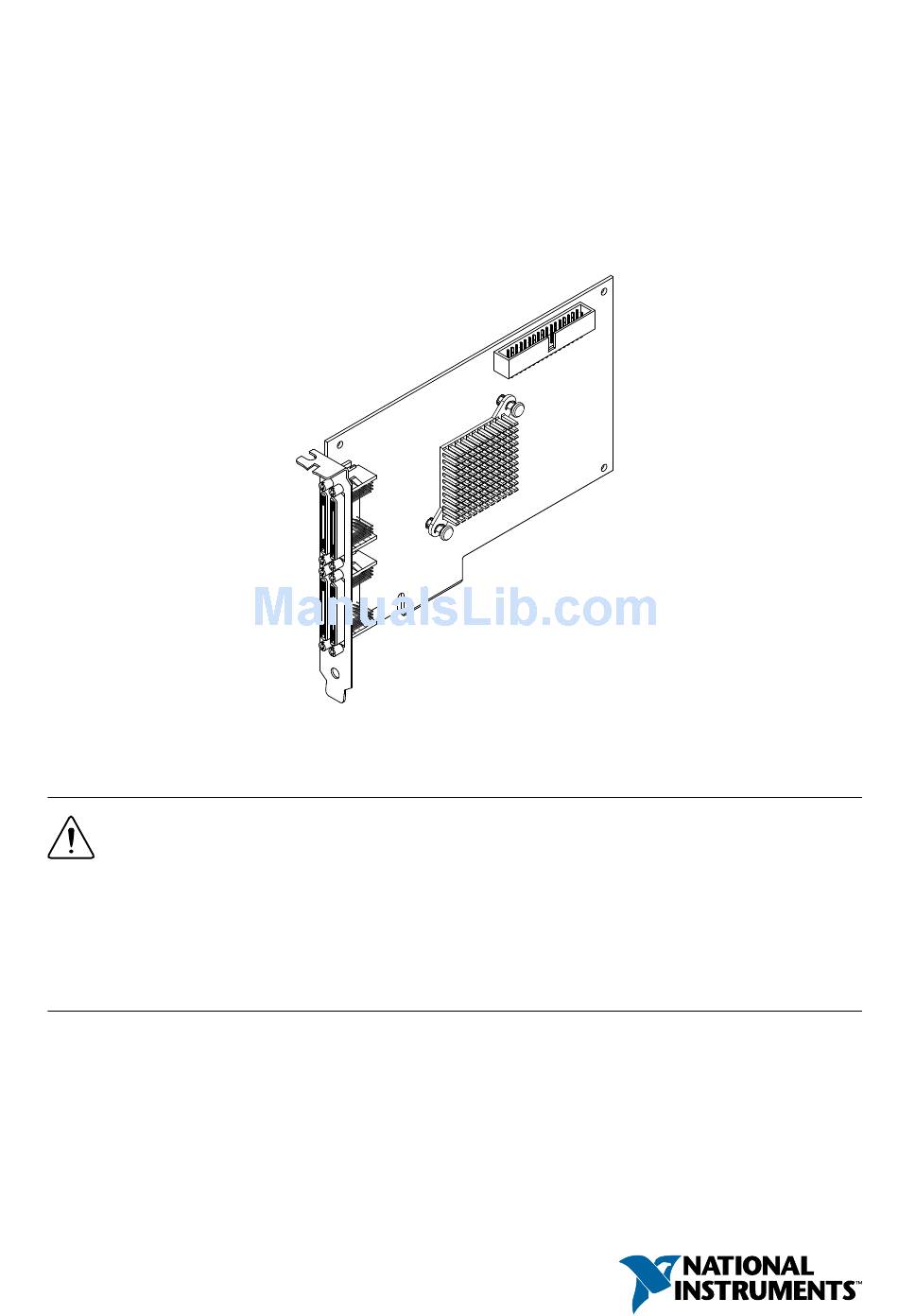

NI PCIe-7821R
R Series Digital I/O Module for PCI Express, 128 DIO, 512 MB DRAM,
Kintex-7 160T FPGA
This document describes how to begin using the PCIe-7821R.
Safety Guidelines
Caution
document. Product misuse can result in a hazard. You can compromise the safety
protection built into the product if the product is damaged in any way. If the product
is damaged, return it to NI for repair.
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) stated in the product specifications. These requirements
and limits provide reasonable protection against harmful interference when the product is
operated in the intended operational electromagnetic environment.
Do not operate the PCIe-7821R in a manner not specified in this
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments NI PCIe-7821R
Summary of Contents for National Instruments NI PCIe-7821R
- Page 1 GETTING STARTED GUIDE NI PCIe-7821R R Series Digital I/O Module for PCI Express, 128 DIO, 512 MB DRAM, Kintex-7 160T FPGA This document describes how to begin using the PCIe-7821R. Safety Guidelines Caution Do not operate the PCIe-7821R in a manner not specified in this document.
-
Page 2: Preparing The Environment
Remove the device from the package and inspect the device for loose components or any other sign of damage. Caution Never touch the exposed pins of connectors. Note Do not install a device if it appears damaged in any way. 2 | ni.com | NI PCIe-7821R Getting Started Guide... -
Page 3: Verifying The Kit Contents
Touch any metal part of the computer to discharge any static electricity. Insert the PCIe-7821R into the applicable PCI Express system slot. Gently rock the PCIe-7821R into place. Do not force the device into place. | © National Instruments | 3 NI PCIe-7821R Getting Started Guide... -
Page 4: Verifying Hardware Installation
Verifying Hardware Installation You can verify that the system recognizes the PCIe-7821R by using Measurement & Automation Explorer (MAX). Launch MAX by navigating to Start»All Programs»National Instruments»MAX or by clicking the MAX desktop icon. Expand Devices and Interfaces. Verify that the device appears under Devices and Interfaces. - Page 5 The provided clock source must be stable and glitch-free. Ground connection The PCIe-7821R is protected from overvoltage and overcurrent conditions. Note Refer to the device specifications, available at ni.com/manuals for more information. | © National Instruments | 5 NI PCIe-7821R Getting Started Guide...
-
Page 6: Digital I/O Connections
Installing Noise Suppression Ferrites For each connected I/O cable, install two (2) snap-on, ferrite beads (777297-01), one on each end of the cable, as close to the connector as practical. 6 | ni.com | NI PCIe-7821R Getting Started Guide... - Page 7 Shielded R Series High Speed Digital Cable, 1m (156166-01) • Shielded R Series High Speed Digital Cable, 2m (156166-02) For user-supplied cables, visit ni.com/info and enter for ferrite beads that can RDIO2FERRITE be ordered directly from NI. | © National Instruments | 7 NI PCIe-7821R Getting Started Guide...
-
Page 8: Where To Go Next
(EMC) and product safety. You can obtain the DoC for your product by visiting ni.com/certification. If your product supports calibration, you can obtain the calibration certificate for your product at ni.com/calibration. 8 | ni.com | NI PCIe-7821R Getting Started Guide... - Page 9 United States, visit the Worldwide Offices section of ni.com/ niglobal to access the branch office websites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. | © National Instruments | 9 NI PCIe-7821R Getting Started Guide...
- Page 10 NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at . You can find patents.txt ni.com/patents...
