Lascal BuggyBoard mini Owner's Manual page 3

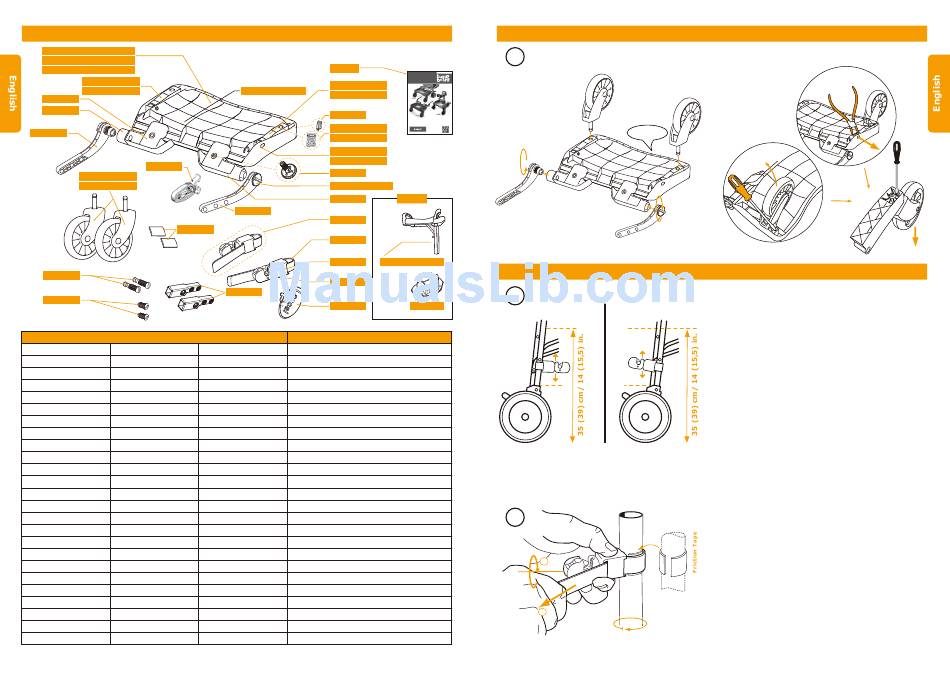

CONTENT BUGGYBOARD - MINI, MAXI, MAXI+
Mini 81135 – 81139
Maxi 81610 – 81612
Maxi+ 81630 – 81632
Mini 81570
Maxi 81614
81330
81320
81300
81150
Mini 81400
Maxi 81613
81604
81520
80371
Part no.
mini maxi maxi+
81135-81139 81610-81612 81630-81632
81150 81150 81150
81300L/81301R 81300L/81301R 81300L/81301R
81310R/81311B 81310R/81311B 81310R/81311B
81320L/81321R 81320L/81321R 81320L/81321R
81330 81330 81330
81340R/81341B 81340R/81341B 81340R/81341B
81400 81613 81613
81520 81520 81520
81600 81600 81600
81604 81604 81604
81570L/81571R 81614L/81615R 81614L/81615R
81572 81616 81616
81573 81617 81617
81618 81618 81618
80370 80370 80370
80371 80371 80371
81521 81521 81521
81900 81900 81900
81634B/81635R
81636
81900
Mini 81571
Serial Number
Maxi 81615
81618
Mini 81572
Maxi 81616
Mini 81573
Maxi 81617
81340
81310/81311
81321 Maxi+
81301
81600
81602
81601 81634/81635
81603
80370
81521
Description
Platform
Strap with Hook
Arm Left/ Arm Right
Height Adjustment Screw (Red/Blue)
Arm Support Left/Arm Support Right
Fixing Plate
Fixing Screw
Wheel
Cotter Pin
Connector Assembled
81601 Connector Cover
81602 Connector Strap
81603 Connector Bolt
Friction Tape
Susp. Arm Left/Susp. Arm Right
Susp. Spring
Susp. Rivet
Wheel Locking Cage
Extender
Extender Screw
Cotter Pin Key
User Manual
Blue Saddle/Red Saddle for Maxi+
Lid for Maxi+
- 3 -
THE WHEELS AND ARMS
1. Attaching the Wheels and the Arms.
1
81900
Owners manual :
English
Other languages,see
www.lascal.net
Lascal BuggyBoard
®
Mini, Maxi, Maxi+
www.buggyboard.info
Lascal BuggyBoard™ is a registered
trademark created by Lascal
The BuggyBoard™ is protected
by patent
THE CONNECTORS
2
Forward
81636
3
2
1
a = max . 22.5 cm / 9 in.
(Detaching the Wheels)
Click
MINI
™
2. Positioning the Connectors.
Backward
For more details:
The Connectors can be attached facing forward
or backwards. The Connectors can be fitted onto
different shapes of tubing with a maximum
circumference of 22.5 cm (9 in.). Bend the
Strap round the tubing. Then feed the Strap
through the slot in the Connector Cover and
pull the Strap gently. Check the position of the
Connectors to be sure that
• the Arms (81300/81301) will be able to reach
the Connectors (maximum 35 cm (14 in.), with
Extenders accessory 39 cm (15,5 in), above the
ground).
• they are as low as possible on the stroller.
• they do not interfere with the stroller's folding
mechanism.
• the Arms stay clear of both the braking
mechanisms and the wheels of the stroller.
3. Attaching the Connectors.
Once certain of the position of the Connectors,
loosen the Strap and fix the Friction Tape on the
uprights where the Connectors are going to be
attached. Reposition the Connector Cover, the
Friction Tape and pull the Strap tight. Secure the
Connector by turning the Connector Bolt
clockwise. Check that the stroller still folds
properly and the brakes still work properly; if
not, you may need to reposition the Connectors.
a
- 4 -
MAXI
™
