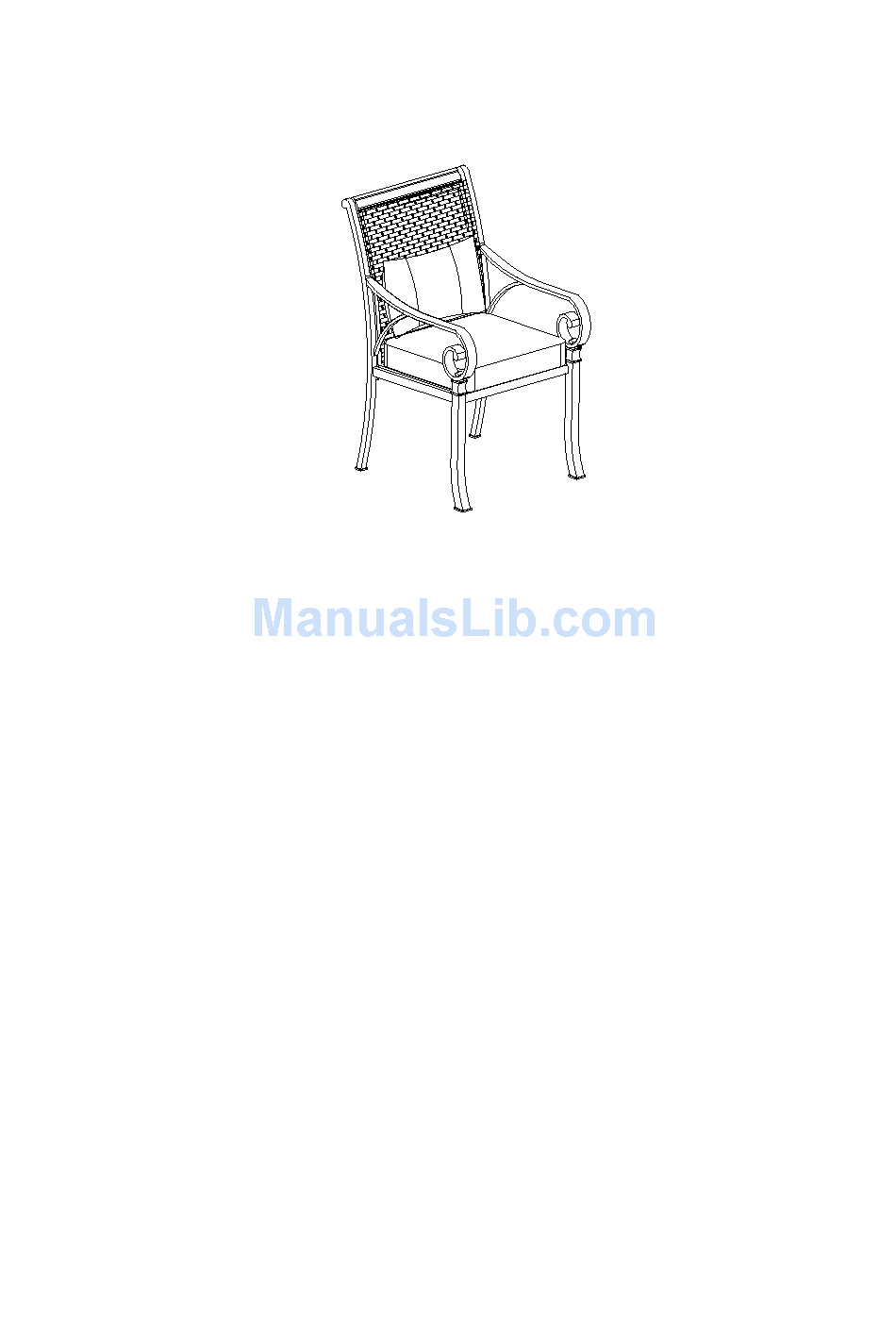

Assembly Instructions
L-DN1408SAL-B (Chair)
Congratulations on your purchase of our SUNJOY products. Our clear, easy to follow,
step-by-step instructions will guide you through the assembly process from start to finish.
WARNING:
● This unit is heavy. Do not assemble this item alone. 2 more adults are recommended for safe
assembly.
● Keep all children and pets away from assembly area. Children and pets should be
supervised when they are in the area of the Table construction.
● Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house,
overhanging branches, laundry line or electrical wires.
● Some parts may contain sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the
product. Please read all instructions before assembly and use.
● Check all bolts for tightness before use, and periodically check and tighten bolts as
necessary.
● Prepare a carpet or something else to protect the table top during assembling.
● Assemble on level ground.
● For outdoor use only.
IMPORTANT
Please take time to read these instructions thoroughly and follow each step carefully for safe
and easy operation. Keep this manual for future reference.
For technical assistance on assembly or replacement parts, call Sunjoy Industries at
1-866-578-6569 from 8:30AM to 5:30PM EST, or email us at
customer.care@sunjoygroup.com, or visit
www.sunjoyonline.com
for assistance.
