INSTALLATION

1.1- Required Tools

• Phillips head screwdriver
• 7mm socket wrench screwdriver

1.2 - Preliminary Operations

1.2.1 - General Preparation
• Pull the appliances together
• Adjust the front feet of the appliances to the same height and alignment

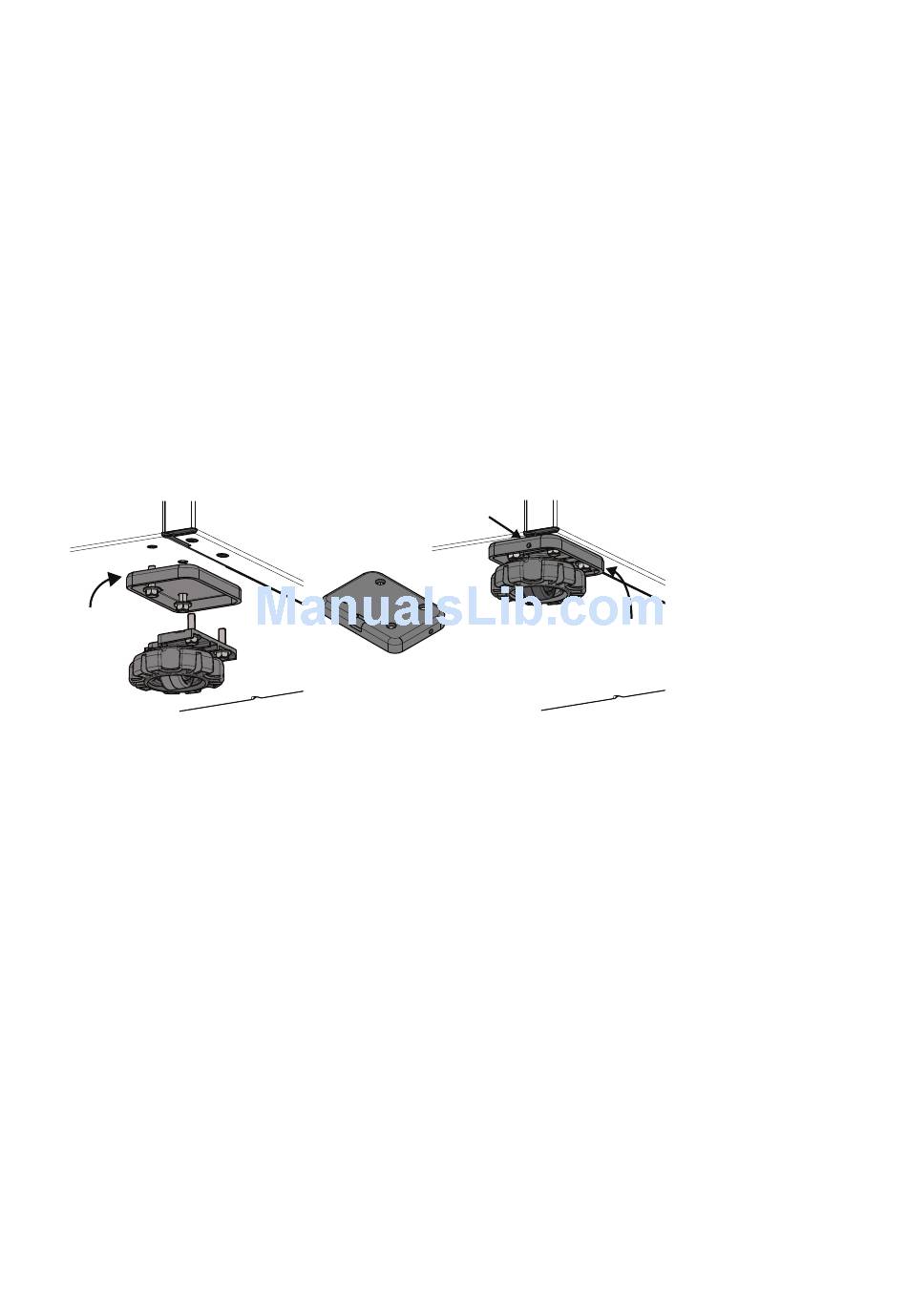

Step 1 .2.2 - Replace Foot Bases
NOTE: 2 people may be required for this operation
• Remove the two front feet that will meet in the middle then remove the factory fitted base, discard and replace
with the foot replacement base part supplied in the kit ensuring that the M4 threaded hole is facing the front and is
nearest the outside edge of the cabinet.
Remove the factory
fitted base
100mm
300mm
Ensure the hole is nearest the
outside edge of the cabinet
Select the supplied base
(item 5) in the kit
Perform these steps on both cabinets
100mm
300mm
Fit to cabinet
