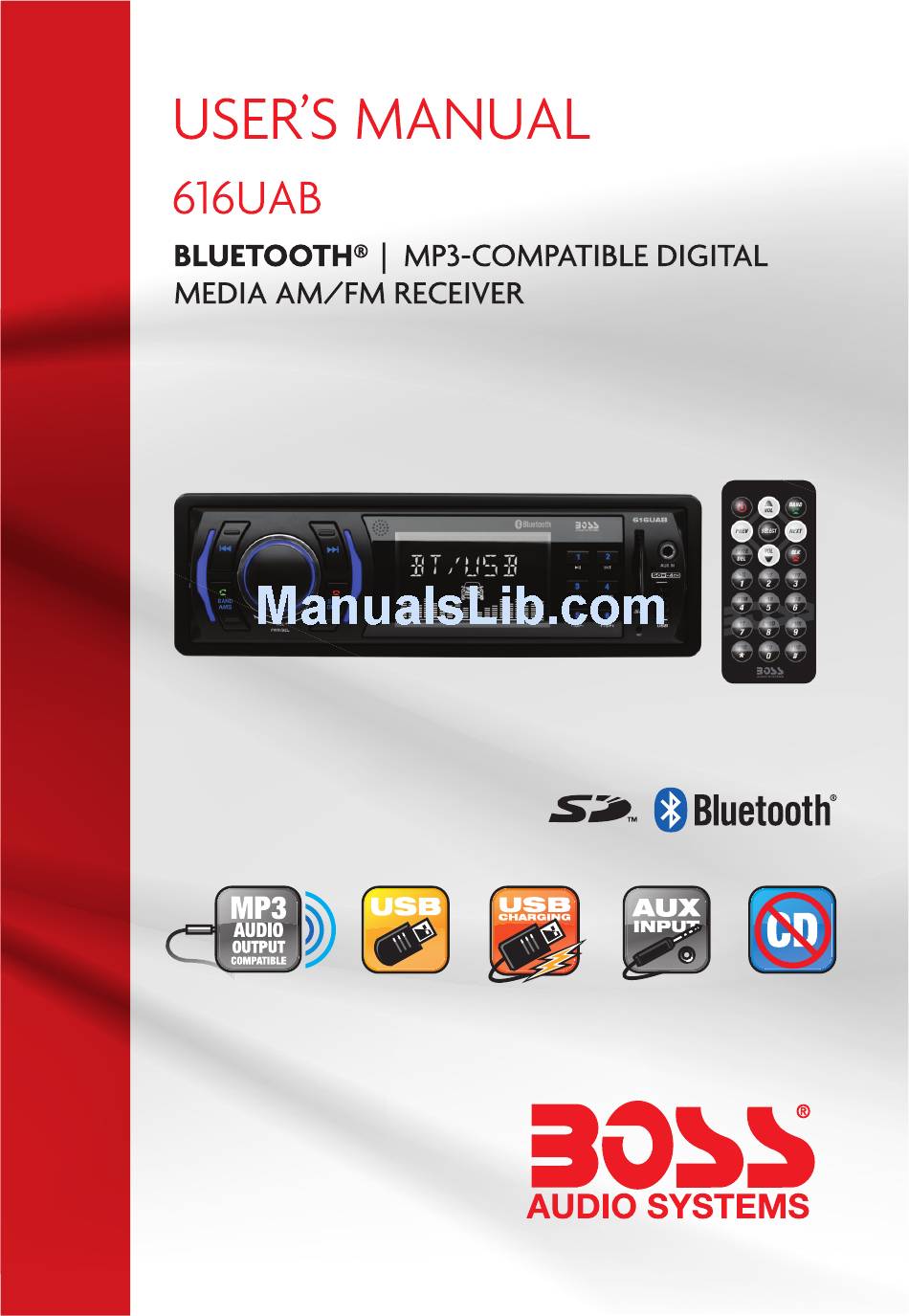

Boss Audio Systems 616UAB User Manual

Mp3-compatible digital media am/fm receiver

Hide thumbs Also See for 616UAB:

User manual (14 pages)

Owner's manual (2 pages)

User manual (2 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the 616UAB and is the answer not in the manual?

Questions and answers

Lane T Robertson

March 4, 2025

uninstall 18-minute stop playing feature

Summary of Contents for Boss Audio Systems 616UAB

Page 2: Table Of Contents
CONTENTS Precautions..............................1 ..........................1 Lithium Battery Cell Warnings Take Precaution............................1 Installation..............................2-3 Installation Procedures .......................... Installation Opening ..........................Wiring Connections..........................3 Removal of the Main Unit ........................3 Overview of the Components ........................4 Operating Instructions ..........................4-6 Power On/Off ............................4 Adjust Volume (VOL) ..........................
Page 3: Precautions
PRECAUTIONS Lithium Battery Cell Warnings Cell leakage may cause damage to the remote control. Do not throw cells into as this may cause an explosion. Keep battery cells out of reach of children. Take Precaution Some MP3/WMA files may not be playable. Be sure to lower the volume before switching off the unit or the ignition key.
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening This unit can be installed in any dashboard Having an opening as shown below. 2.05 inch 7.20 inch Insert mounting collar into the dashboard and bend the mounting tabs out with a screwdriver. Make sure that lock lever is flush with the mounting collar( not projecting outward).
Page 5: Wiring Connections
INSTALLATION(CONT.) - Only use speakers with 4 ohms impedance. - The maximum current of the Amp remote trigger is 200mA. Wiring Connections WIRING DIAGRAM Radio Antenna White:Front Left PRE-AMP Output Red: Front Right PRE-AMP Output Red: Rear Right PRE-AMP Output White: Rear Left PRE-AMP Output Purple + Green +...

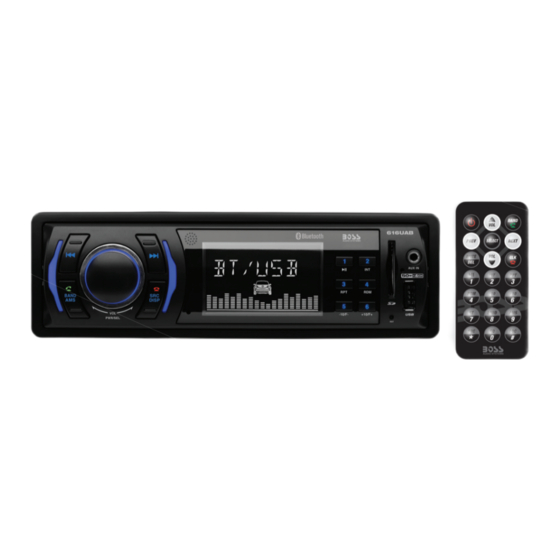

Page 6: Overview Of The Components
Overview of the Components INT RPT RDM POP ROCK CLASSIC FLAT USB BT Operating Instructions Turn Unit on/off (PWR) Press any button to turun on the unit. Press and hold the VOL/PWR/SEL button to turn off the unit. Adjust the volume (VOL) Rotate the VOL knob to increase or decrease the volume level.
Page 7: Setting Time (Disp)
Operating Instructions Setting Time Press and hold the SRC/DISP button to display time. Press the SRC/DISP button again, the hours digits start flashing on the display. Set hours by rotating the VOL knob. Press the SEL button (VOL knob) again. The minute digits start flashing. Set minutes by rotating the VOL knob.
Page 8: Sd Card Slot
Operating Instructions SD Card Slot Insert an SD card with the label to the right into the SD card slot, until it “clicks” into place. The data will be automatically played. USB Connection If you would like to playback data contained on a USB stick, please insert the stick into the USB port. The data will be played automatically.
Page 9: Bluetooth Operation
To begin pairing, enable BT mode on your mobile phone. 2. When the phone the car audio system, the “BOSS 616UAB” will be displayed. 3. Choose the “BOSS 616UAB” from the device list to pair and connect with the car audio system. Upon the BT logo will stop 4.
Page 10: Troubleshooting
TROUBLESHOOTING If you suspect something is wrong, immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell, can cause fire or electric shock. Immediately stop using it and call the store where you purchased it. Never try to repair the unit by yourself because it is dangerous to do so.
Page 11: Specifications
SPECIFICATIONS General Power supply Requirement : DC 12V Maximum power output : 50W X 4CH Speaker impedance : 4 - 8 Ohm Unit Dimensions(WxHxD) : 7.0 X 2.0 X 3.8 inch Weight : 1.54 Lb (0.7 kg) Fuse : 15 A RADIO Frequency Range USA / EUROPE: 87.5 MHz - 107.9 MHz / 87.5 MHz - 108.0MHz...
