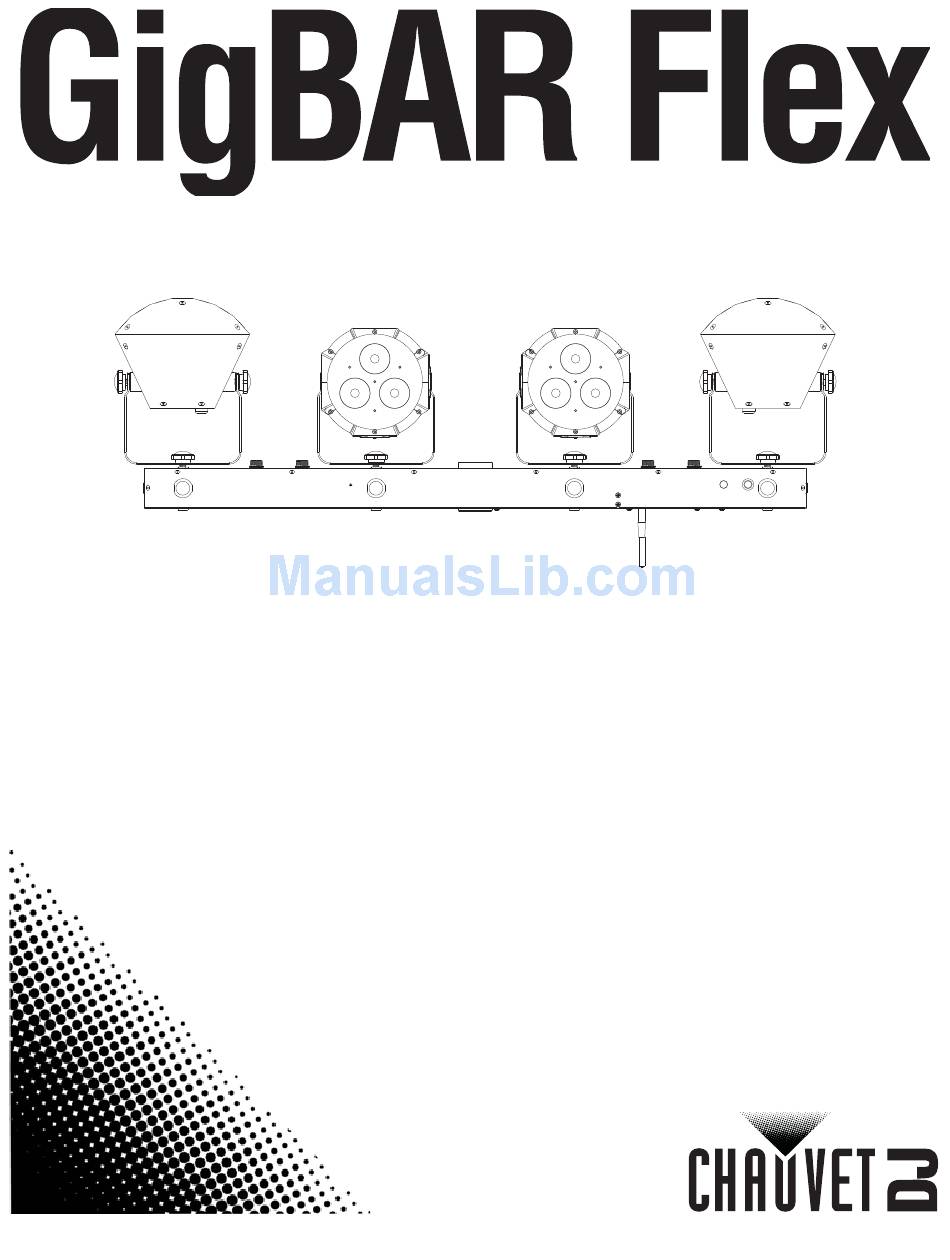

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    IRC-6 Operation ......................14 Wireless Foot-Switch Operation..............5. Mainte nanc e ................Product Maintenance ..................6. Te c hnic al S pe c ific atio ns ............7. Re turns ..................8. Co ntac t Us .................. GigBAR Flex User Manual Rev. 1...

  • Page 3: Before You Begin

    Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and GigBAR Flex are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

  • Page 4: Product At A Glance

    Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 2 of 20 GigBAR Flex User Manual Rev. 1...

  • Page 5: Introduction

    NTRODUCTION 2. I NTRODUCTION Product Overview Adjustable Pass- Through for Tripod mounting Wireless Antenna Power In Adjustment Power Out Knobs x4 DMX In/Out LED Display Menu Buttons 9-Volt Battery Cover GigBAR Flex User Manual Rev. 1 Page 3 of 20...

  • Page 6: Product Dimensions

    77 mm 2.09 in 53 mm 0.71 in 0.9 in 18 mm 13.87 in 23 mm 1.46 in 352 mm 37 mm 1.38 in 35 mm 4.29 in 109 mm Page 4 of 20 GigBAR Flex User Manual Rev. 1...

  • Page 7: Setup

    ETUP AC Power The GigBAR Flex has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 8: Mounting

    Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The GigBAR Flex may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes.

  • Page 9: Operation

    COLOR CoLo be used at Sets both Par and Setting B000–B255 the same Derby blue values time. Sets the UV U000–U255 values for the Par and strobes GigBAR Flex User Manual Rev. 1 Page 7 of 20...

  • Page 10: Configuration (Dmx)

    If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The GigBAR Flex uses up to 20 DMX channels in a 20CH DMX mode, which defines the highest configurable address to 493.

  • Page 11: System Settings

    Press <ENTER>. Use <UP> or <DOWN> to select rSEt (factory default) or dSET (changes pod arrangement). Press <ENTER> to select the desired system setting. If rSEt is selected, GigBAR Flex is restored to factory default settings. Default Pod Arrangement Pod 4...

  • Page 12: Dmx Values

    Derby 2 Strobe, 0-30 Hz  Strobe Rate Strobe to sound  Stop  Derby 2 Rotate clockwise, slow to fast  Rotation Stop  Rotate counter-clockwise, slow to fast  Page 10 of 20 GigBAR Flex User Manual Rev. 1...

  • Page 13: 8Ch

    White strobe speed, slow to fast  Speed & 8 cannot be used at the same time. UV Strobe UV strobe dimmer, 0–100%  Speed UV strobe speed, slow to fast  GigBAR Flex User Manual Rev. 1 Page 11 of 20...

  • Page 14: 3Ch

    Use <UP> or <DOWN> to select the desired Sound-Active mode (AM01 or AM02). Press <ENTER> to put the fixture into the selected Sound-Active mode. Use <UP> or <DOWN> to adjust the mode speed, F 01 (fast) to F 99 (slow). Press <ENTER>. Page 12 of 20 GigBAR Flex User Manual Rev. 1...

  • Page 15: Show Settings

    Press <ENTER>. Master/Slave Mode The Master/Slave mode allows a single GigBAR Flex product (the “master”) to control the actions of one or more GigBAR Flex products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave products will be set to operate in Slave mode.

  • Page 16: Irc-6 Infrared Remote Control

    PERATION IRC-6 Infrared Remote Control The GigBAR Flex is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: Press <MENU> repeatedly until XXX shows on the display. Press <ENTER> to accept. Press <UP> or <DOWN> to select On or OFF.

  • Page 17: Wireless Foot-Switch Operation

    Immediately turns OFF all the light fixtures (Blackout) The GigBAR Flex footswitch will work properly in any mode, with a maximum unobstructed distance of 50 ft (15.24 m). You must turn on the WiFi on the GigBAR Flex before using the footswitch.

  • Page 18: Maintenance

    Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 16 of 20 GigBAR Flex User Manual Rev. 1...
  • Page 19 Quad-color RGB+UV Light Source (Strobe) OWER IFESPAN 50,000 hours OLOR UANTITY URRENT White + UV 1.5 A Light Source (Derby) OWER IFESPAN 50,000 hours OLOR UANTITY URRENT Tri-color RGB 1.6 A GigBAR Flex User Manual Rev. 1 Page 17 of 20...

  • Page 20: Technical Specifications

    AXIMUM XTERNAL EMPERATURE OOLING YSTEM 104 °F (40 °C) Convection I/O C ONNECTOR HANNEL ANGE 3-pin XLR 3, 8 or 20 Ordering UPC N RODUCT UMBER GigBAR Flex 10051419 781462217679 Page 18 of 20 GigBAR Flex User Manual Rev. 1...

  • Page 21: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). GigBAR Flex User Manual Rev. 1 Page 19 of 20...

  • Page 22: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Page 20 of 20 GigBAR Flex User Manual Rev. 1...
