Icom IC-RX7 Service Manual Addendum page 45

ADJUSTMENT
S-METER 1
(Preparation)
-MF band- 2
(FM:S3 level)
-MF band- 3
(WFM:S0 level)
-14 MHz band- 4
(FM:S3 level)
-14 MHz band- 5
(WFM:S0 level)
-51 MHz band- 6
(FM:S3 level)
-51 MHz band- 7
(WFM:S0 level)
-83 MHz band- 8
(FM:S3 level)
-145 MHz band- 9
(WFM:S0 level)
COMMON SETTING;
Modulation : 1 kHz
Deviation
DISPLAYED ITEM

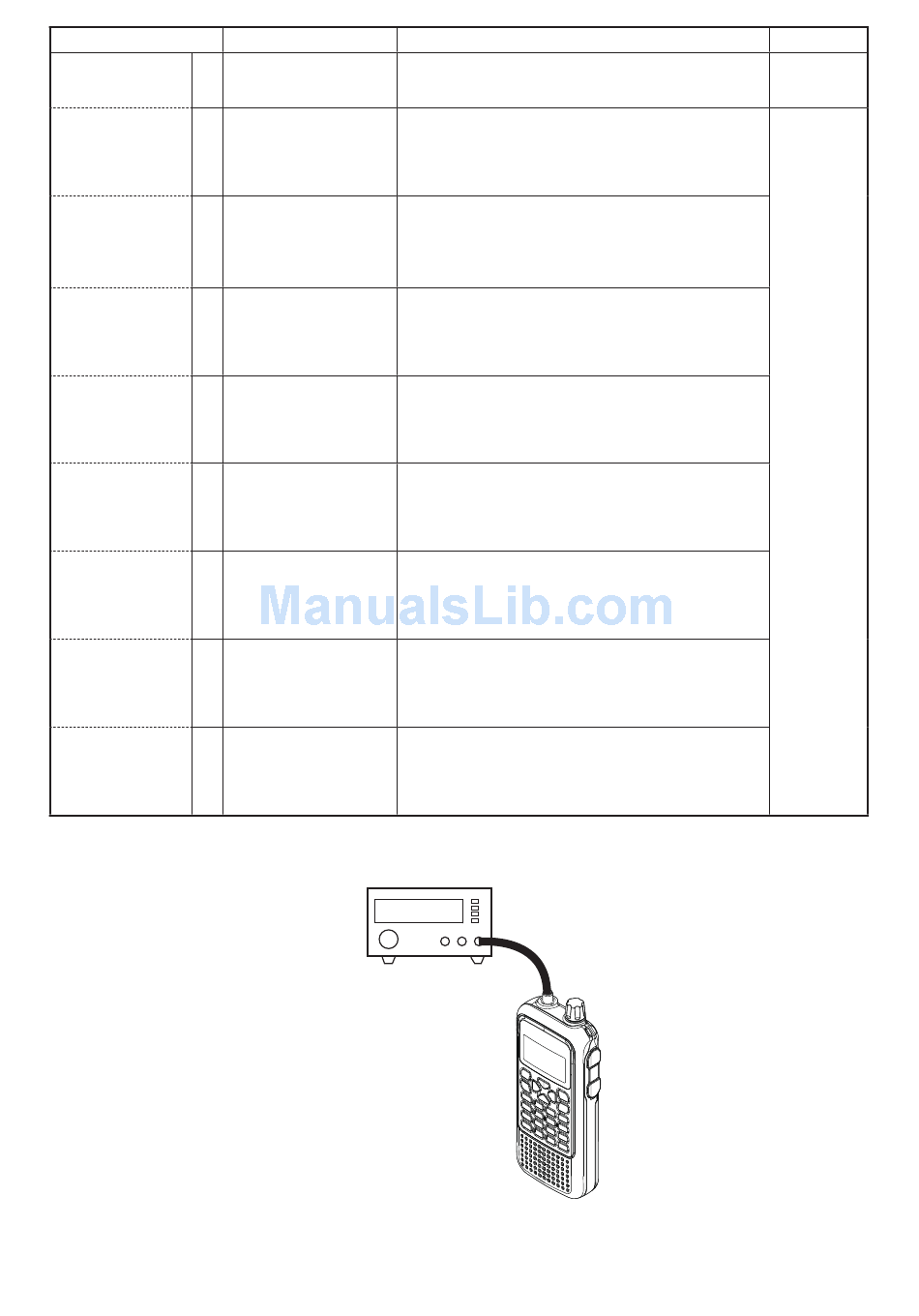

• Connect an SSG to the antenna connector and set it
–
as;
1) Set the SSG as;
[FS3]
2) Push [ENT MW] key.
1) Set the SSG as;
[WS0]
2) Push [ENT MW] key.
1) Set the SSG as;
[FS3]
2) Push [ENT MW] key.
1) Set the SSG as;
[WS0]
2) Push [ENT MW] key.
1) Set the SSG as;
[FS3]
2) Push [ENT MW] key.
1) Set the SSG as;
[WS0]
2) Push [ENT MW] key.
1) Set the SSG as;
[FS3]
2) Push [ENT MW] key.
1) Set the SSG as;
[WS0]
2) Push [ENT MW] key.
STANDARD SIGNAL GENERATOR
(0.3–1500 MHz)
: 3.5 kHz (FM)
: 52.5 kHz (WFM)
OPERATION
Modulation : 1 kHz
Frequency : (Displayed on the function display)
Deviation : 3.5 kHz (FM)
Level : 0 dBµ
Frequency : (Displayed on the function display)
Deviation : 52.5 kHz (WFM)
Level : 3 dBµ
Frequency : (Displayed on the function display)
Deviation : 3.5 kHz (FM)
Level : –5 dBµ
Frequency : (Displayed on the function display)
Deviation : 52.5 kHz (WFM)
Level : –2 dBµ
Frequency : (Displayed on the function display)
Deviation : 3.5 kHz (FM)
Level : –5 dBµ
Frequency : (Displayed on the function display)
Deviation : 52.5 kHz (WFM)
Level : –2 dBµ
Frequency : (Displayed on the function display)
Deviation : 3.5 kHz (FM)
Level : –5 dBµ
Frequency : (Displayed on the function display)
Deviation : 52.5 kHz (WFM)
Level : –2 dBµ
5 - 5
VALUE
–
(Automatic
adjustment)
