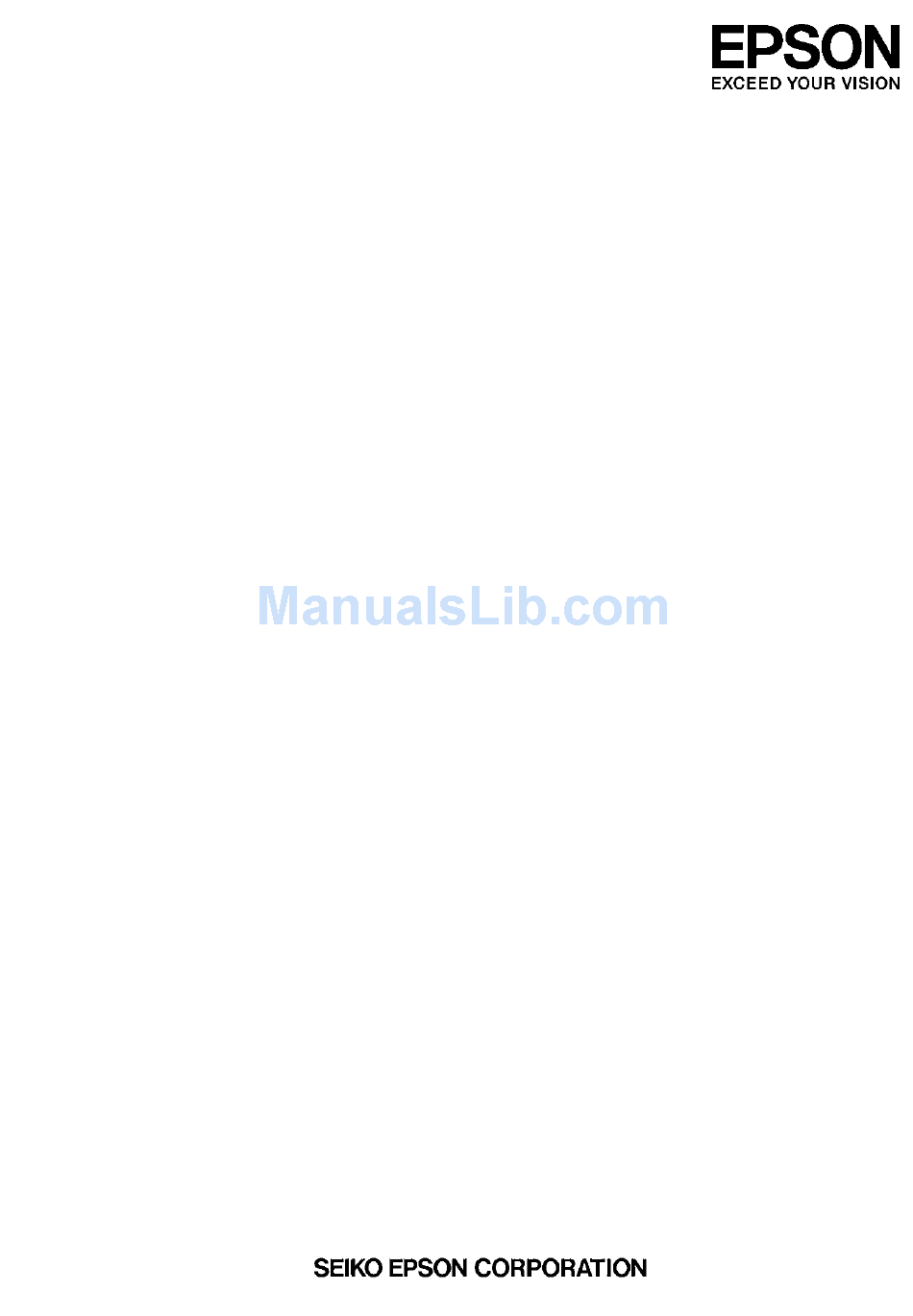

S1V30333/300/120

Evaluation Board

User Guide
Rev.1.03

Advertisement

   Summary of Contents for Epson S1V30333

  • Page 1: Evaluation Board

    S1V30333/300/120 Evaluation Board User Guide Rev.1.03...

  • Page 2

    Seiko Epson. Seiko Epson reserves the right to make changes to this material without notice. Seiko Epson does not assume any liability of any kind arising out of any inaccuracies contained in this material or due to its application or use in any product or circuit and, further, there is no representation that this material is applicable to products requiring high level reliability, such as, medical products.

  • Page 3: Table Of Contents

    Multi-function Selection ....................10 3.5.4 General Switches ......................10 3.5.5 Audio IC GPIO Settings....................10 3.5.6 Audio IC S1V30333 Settings ................... 11 Jumper Pin Functions and Settings ..................12 3.6.1 External Memory Settings ....................12 3.6.2 Level Shifter Settings....................... 12 3.6.3...

  • Page 4: Introduction

    1. Introduction 1. Introduction Overview This evaluation board is a client evaluation board designed for use with S1V30333/300/120 audio ICs (hereafter simply “audio ICs”). The evaluation board includes the clocks, power supply, DIP switches, amplifier, and PC USB interfaces needed to evaluate audio ICs. Designed to enable easy evaluation by providing power and data via a PC USB interface, each evaluation board allows evaluations of up to three different types of audio IC.

  • Page 5: Function Overview

    Fig. 2-1 shows the layout for product code S5U1V30333C0100 with all components mounted. Depending on the actual product code, some components may not be mounted. (24) Fig. 2-1 Evaluation board layout diagram EPSON S1V30333/300/120 Evaluation Board User Guide (Rev. 1.03)

  • Page 6

    (14) S1V30300 audio IC (15) S1V30300 audio output signal amplifier (16) S1V30300 audio output jack (17) S1V30333 audio IC (18) S1V30333 audio output signal amplifier (19) S1V30333 audio output jack (20) Slave SPI interface (21) Master SPI interface (22) Input power supply selector switch...

  • Page 7: System Interface

    For evaluations based on the configurations shown in Figures 3 and 4, fit a connector to suit the client’s board to the “open” end of the cable provided. Clients using the board while connected to an external host (Fig. 2-3) or an evaluation board host (Fig. 2-4) should contact Seiko Epson for detailed specifics.

  • Page 8

    2. Function Overview Fig. 2-3 External host connection diagram Fig. 2-4 Evaluation board host connection diagram EPSON S1V30333/300/120 Evaluation Board User Guide (Rev. 1.03)

  • Page 9

    2. Function Overview Fig. 2-5 ROM Emulator connection diagram EPSON S1V30333/300/120 Evaluation Board User Guide (Rev. 1.03)

  • Page 10: Detailed Description Of Functions

    Clocks Table 3-3 lists the different IC clocks used on the evaluation board. Table 3-3 Clocks Frequency 12.288MHz S1V30333 clock 32.768kHz S1V30300 clock S1V30120 clock S1C33E07 RTC clock 14.7456MHz S1C33E07 system clock EPSON S1V30333/300/120 Evaluation Board User Guide (Rev. 1.03)

  • Page 11: Reset

    Table 3-6 SPI slave connectors (Code: Omron XG4M-1430-U MIL; standard product) J11 − SPI I / F SLAVE Pin No. Signal Pin No. Signal SOUT SCLK NSCSS GPIOA3/MSGRDY GPIOA4/STBY MUTE RSTS − − − − EPSON S1V30333/300/120 Evaluation Board User Guide (Rev. 1.03)

  • Page 12: Dip Switch Functions And Settings

    Description S1V30120 S1V30300 S1V30333 Table 3-8 Mode selector switch Setting (binary) Description 0000 PC host 0011 ROM emulation Please contact Seiko Epson if used with an external host or evaluation board host. EPSON S1V30333/300/120 Evaluation Board User Guide (Rev. 1.03)

  • Page 13: Multi-function Selection

    Table 3-12 shows the default settings for the S1V30300 GPIO setting DIP switch SW20. Table 3-11 S1V30120 GPIO settings SW15 Description Setting SW15-1 GPIOA0 SW15-2 GPIOA1 SW15-3 GPIOA2 SW15-4 GPIOA3 SW15-5 GPIOA5 − SW15-6 EPSON S1V30333/300/120 Evaluation Board User Guide (Rev. 1.03)

  • Page 14: Audio Ic S1v30333 Settings

    GPIOA0 SW20-2 GPIOA1 SW20-3 GPIOA2 SW20-4 GPIOA3 3.5.6 Audio IC S1V30333 Settings Table 3-13 shows the default settings for the S1V30333 oscillator clock selector DIP switch SW19. Table 3-13 S1V30333 oscillator clock settings SW19 Description Setting − SW19-1 SW19-2 Oscillator clock selection...

  • Page 15: Jumper Pin Functions And Settings

    Audio output jacks J14, J15, and J16 are connected to the differential amplifier output signal. Care must be taken when connecting devices, as short-circuiting to GND or other signals will damage the amplifier. VOUT-N VOUT-N VOUT-P Differential Top View amplifier VOUT-P VOUT-N EPSON S1V30333/300/120 Evaluation Board User Guide (Rev. 1.03)

  • Page 16: Evaluation Board Exterior View (for Reference)

    4. Evaluation Board Exterior View (For reference) 4. Evaluation Board Exterior View (For reference) As reference, the photo below is an external view of the evaluation board shown in Fig. 2-1. EPSON S1V30333/300/120 Evaluation Board User Guide (Rev. 1.03)

  • Page 17

    Revision History Revision History Revision details Date Rev. Page Type Details 08/31/2007 1.00 Newly established 09/21/2007 1.01 Correct Corrected details for Sections 1, 1.2, 2.1, 2.3, 3.1, 3.4, 3.6.2, and 4. Added Section 1.3. Updated photo in section 4. 12/05/2007 1.02 Added Section 3.6.3.

  • Page 18

    0.1u S1C33E07 DGND PLVDD LVDD HVDD 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u DGND DGND PLVSS SEIKO EPSON Title Venus Evaluation Board Size Document Number K-676-01 1.00 Date: Friday, October 26, 2007 Sheet...

  • Page 19

    DGND DGND DGND DGND DGND DGND DGND DGND DGND DGND HVDD S e l f 0.1u 0.1u B u s MS-22AAB1 DGND DGND SEIKO EPSON Title Venus Evaluation Board Size Document Number K-676-01 1.00 Date: Friday, October 26, 2007 Sheet...

  • Page 20

    < O p e r a t i o n m o d e S e l e c t CPLD_TCK S W > S W > S W > S W > CPLD_TDO VCC33 CPLD_TMS /RESET VCC33 CPLD_TDI XG4C1031 4.7k DGND SEIKO EPSON Title Venus Evaluation Board Size Document Number K-676-01 1.00 Date: Friday, October 26, 2007 Sheet...

  • Page 21

    M U T E M U T E M U T E MSPI_GPIOA4 SSPI_GPIOA4 TEST PAD TEST PAD TP15 TP16 MSPI_MUTE SSPI_MUTE TEST PAD TEST PAD SEIKO EPSON Title Venus Evaluation Board Size Document Number K-676-01 1.00 Date: Friday, October 26, 2007 Sheet...

  • Page 22

    TSTMODE2 S1V30120 DGND LVDD 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u DGND HVDD PLLSYSVDD AVDD 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u DGND PLLSYSGND AGND SEIKO EPSON Title Venus Evaluation Board Size Document Number K-676-01 1.00 Date: Friday, October 26, 2007 Sheet...

  • Page 23

    0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u DGND AGND DGND OSCVSS HVDD PLLSYSVDD C100 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u DGND PLLSYSGND SEIKO EPSON Title Venus Evaluation Board Size Document Number K-676-01 1.00 Date: Friday, October 26, 2007 Sheet...

  • Page 24

    A V D D A V D D TEST PAD BLM41PF800SN1 0.1u 220u C119 AGND LP2960-3.3 DGND DGND DGND AGND AGND DGND AGND OSCVSS PLLSYSGND PLVSS SEIKO EPSON Title Venus Evaluation Board Size Document Number K-676-01 1.00 Date: Friday, October 26, 2007 Sheet...

  • Page 25

    O U T O U T O U T R159 MUTE_3032 4832.2320 AVDD_BOARD NJM2149 R160 C136 C137 0.01u C138 C139 C140 4.7u AGND AGND AGND SEIKO EPSON Title Venus Evaluation Board Size Document Number K-676-01 1.00 Date: Friday, October 26, 2007 Sheet...

  • Page 26

    12/F, Dawning Mansion, Keji South 12th Road, Phone: +49-89-14005-0 FAX: +49-89-14005-110 Hi- Tech Park, Shenzhen Phone: +86-755-2699-3828 FAX: +86-755-2699-3838 EPSON TAIWAN TECHNOLOGY & TRADING LTD. 14F, No. 7, Song Ren Road, Taipei 110 Phone: +886-2-8786-6688 FAX: +886-2-8786-6660 EPSON SINGAPORE PTE., LTD.
