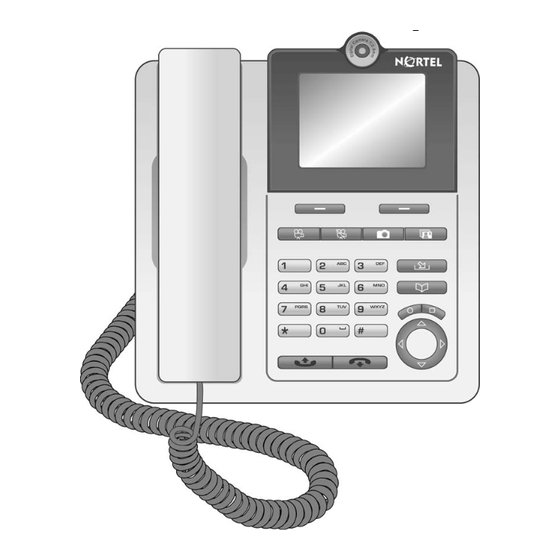

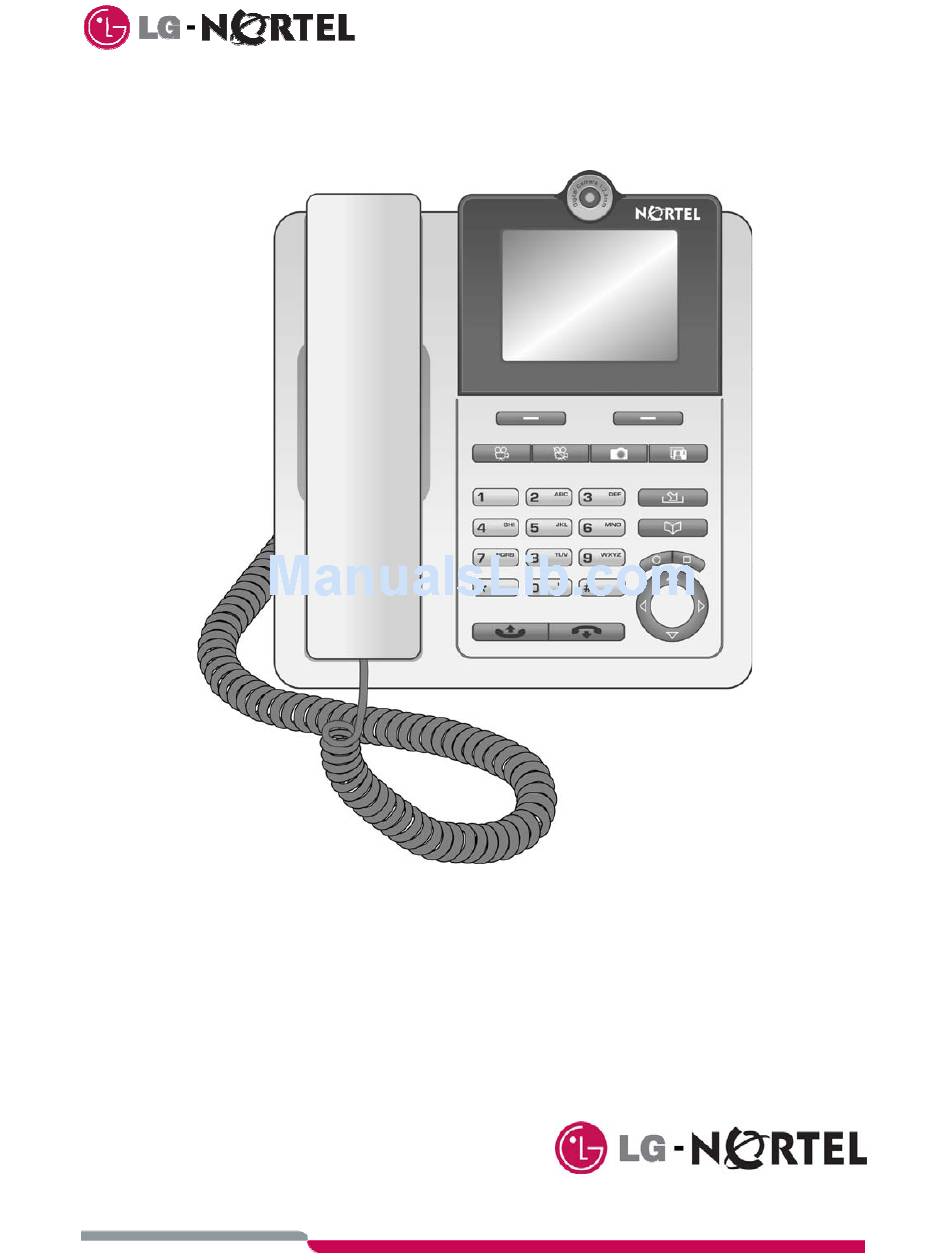

- Page 1 Rev. 0.01 IP Phone 1535 Videophone User’s Manual...
-
Page 2: Table Of Contents
Table of Contents Videophone Description ................1 1.1 Basic Description ......................... 1 1.2 Description of the Keys......................2 1.3 Screen Symbols........................2 1.4 Care of the Videophone....................... 2 1.5 Safety Information........................ 3 1.6 Entering Characters with the Keyboard ................3 1.7 Shipping Box Content ...................... - Page 3 4.2 Incoming Calls ........................16 4.2.1 Receiving a Call ......................16 4.2.2 Missed Call Notification/Return ..................17 4.3 Active Call Options ......................17 4.3.1 Phonebook access......................17 4.3.2 Mute the microphone ...................... 17 4.3.3 Audio volume ........................17 4.3.4 Call hold.......................... 17 4.3.5 Blind transfer........................
- Page 4 9.2 Sound Galleries ......................... 28 9.2.1 Recording Audio ......................28 9.2.2 Administrating sounds..................... 28 9.3 Video Gallery ........................29 9.3.1 Recording Videos......................29 9.3.2 Administrating videos ...................... 29 10 Calendar....................30 10.1 Creating a new alarm......................30 10.2 Options available ....................... 30 10.3 Deleting an Alarm ......................
-
Page 5: Videophone Description
1 Videophone Description Basic Description The IP PHONE 1535 is a hybrid PSTN and IP based phone that permits audio and video calls and access to special services available from your communications provider. The IP PHONE 1535 incorporates the following elements as shown in Fig. 1: •... -
Page 6: Description Of The Keys
Description of the Keys Function Speakerphone off-hook button. With Handset on-hook, activates Speakerphone. With Handset off-hook, switches to Speakerphone operation. Call release button. While using the Speakerphone, this button will end the call. Also, while browsing menus, this button will return to the previous menu. Navigation buttons. -
Page 7: Safety Information
• Insert a space: press the * key or, in all writing modes other than 123, press 0. Shipping Box Content The shipping box contains: • 1 IP PHONE 1535 telephone base • 1 handset • 1 LAN cable •... -
Page 8: Technical Specifications
Technical Specifications Videophone base size: 206 x 190 x 100 mm. Handset size: 184 x 42 x 32 mm. Approximate weight: 750 + 195 g (base + handset) Main processor: Intel PXA270 @ 416 MHz PSTN port RJ-11 LAN port: RJ-45 WLAN interface: IEEE802.11b/g... -
Page 9: Installing
Installing the Videophone Basic installation of the IP PHONE 1535 is simply a matter of connecting the ports of the phone to the correct socket with standard connector ended cables. Connections are made for the Handset, Power and, as needed, PSTN and LAN. - Page 10 Power Connection Conncetion PSTN Line Handset Conncetion Conncetion Figure 2 IP PHONE 1535 Installation...
-
Page 11: Settings
3 Settings By default, the IP PHONE 1535 is set to function in the narrowband mode connected to a PSTN line and there is no need for further configuration. These and other settings may be changed in the “SETTINGS” menu. The “SETTINGS” Menu is accessed from the idle screen by selecting settings from the main menu. -
Page 12: Audio Settings
3.2.2.1 Configuring Ring melody The IP PHONE 1535 Audio gallery includes 50 (fifty) melodies that can be used for ring. Each melody is 8 seconds long and an additional 60 (sixty) melodies may be downloaded from a SD/MMC card or recorded from the IP PHONE 1535. -
Page 13: Video Options
Camera On/Off The camera can be turned off so that the video and photo functions of the IP PHONE 1535 are disabled. This parameter can only be accessed if the user has logged in to Admin, see section 3.6.2. To enable/disable the camera: 1. -
Page 14: Personalize With Phone Settings
Call barring The IP PHONE 1535 can bar or block outgoing calls where the first few digits match a pre-defined “prefix code” Up to five prefix codes of up to 5 digits each can be entered for Call Barring. To configure call blocking: 1. -
Page 15: Language Selection
“video calls” → “enable”. 3.4.3 Language Selection The IP PHONE 1535 displays can be in several languages to meet the user needs. The languages available are English (default), French, and Spanish. To modify the language: 1. With the telephone idle select “main menu” → “settings” →... -
Page 16: Proxy
The IP PHONE 1535 can be configured with a preferred registration interval or Registration expiration period. The IP PHONE 1535 will request the SIP server use this period as the expiration time. To configure the Registration expiration time, from “main menu” →... -
Page 17: Ports
3.6.1 Reset The IP PHONE 1535 incorporates two databases, Phonebook and Settings. The databases may be reset individually or at the same time. This parameter can only be accessed if the user has logged in to Admin, see section 3.6.2. -
Page 18: Admin Mode
3.6.2 Admin mode The IP PHONE 1535 includes an Admin mode, which is used to control access to several settings. Settings for Camera mode, VoIP ports, Codec priority and database Reset can be accessed only if the user logs in or activates the Admin mode. -
Page 19: Wifi Parameters
3.6.5 WiFi parameters With this menu, you can modify WiFi interface parameters. From “main menu” → “settings” → “system settings”: 1. Select “WiFi” and press OK. 2. Select the desired option: • “Network settings”: provides information on the current network configuration (MAC address, DHCP, IP address, subnet mask, link port and DNS) and allows this data to be modified. -
Page 20: Voice Calls
4 Voice Calls The IP PHONE 1535 incorporates basic and advanced voice call handling functions. Calls can be placed, received, held and transferred. Placing a call You can place a call by simply Dialing a number while the handset is off-hook or a number can be Dialed or selected while: •... -
Page 21: Missed Call Notification/Return
To answer the call, lift the handset or press the Off-Hook button to activate the Speakerphone function. The phone displays the Caller Id or, if available in the Phonebook, the caller’s name and the caller’s picture from the server. 4.2.2 Missed Call Notification/Return When a call is not answered, the screen displays the Missed Calls message, informing the user of the new missed call in the Missed Call Log. -
Page 22: Blind Transfer
Selecting “hw/sw version” from the “Options” menu will display the revision associated with the IP PHONE 1535 hardware and software. 4.3.9 Telephone number Selecting “Telephone Number” from the “Options” menu will display the Phone number associated with the IP PHONE 1535. -
Page 23: Video Calls
5 Video Calls The IP PHONE 1535 incorporates Videophone capability, the ability to transmit and receive video. Making a Video Call You can establish a video call in two ways, a direct Video call or an indirect Video call where a voice call is switched to a video call. -
Page 24: Active Video Call Options
With this option, you can adjust the current audio level, see section 4.3.3. 5.4.6 Show hw/sw version With this option, you can display the current hardware and firmware version. 5.4.7 Telephone number Selecting “Telephone Number” from the “Options” menu will display the Phone number associated with the IP PHONE 1535. -
Page 25: Mail Messages Menu
6 E-Mail Messages Menu If you have subscribed to E-Mail Service, you can access E-Mail through the “Messages” menu. Configuring E-Mail Before using the E-mail service, you must configure your account. E-Mail service is configured through the “Messages” menu: From idle, select “main menu” → “messages” and confirm with OK. Select “account”... -
Page 26: Accessing Saved E-Mails
You may also select a saved E-Mail to send by entering the “Subject” of the E-Mail before step 2 above and then selecting “Send” to send the email. Accessing saved E-Mails To recover an E-Mail you have saved in your “Draft” box: From the "e-mail”... -
Page 27: Services Menu
Before using the Voice Mail service, you must configure you Voice Mail-box. You will need to configure your Voice Mail-box number. Also, for simplified access, your User Id and password may be configured in IP PHONE 1535 so that the Id and password are automatically sent when you access the Voice Mail service. -
Page 28: Video Monitoring
Use the dial pad to enter a URL and confirm with OK to display the Web page. The IP PHONE 1535 will display a quarter of the Web page; use the navigation button to move through the page. Video Monitoring The Video supervision facility permits you to monitor the camera of a remote Videophone/camera from pre-assigned Videophones. -
Page 29: Call History
8 Call History The Call History stores, in three different directories, the last 20 calls missed, received and Dialed. The information on the missed and received calls is available only to customers who subscribe to the CLI (Calling Line Identification) service. If CLI service is not available, only “Number reserved” will be displayed. Viewing Call Logs To access the Call Logs: With the Videophone idle, select “main menu”... -
Page 30: Delete A Call Record
this function from “main menu” → “call history”: 1. Select the desired Call Log (missed/received/Dialed).and confirm with OK, 2. Select the desired call record, 3. Select “Options”. 4. Select “Save in Phonebook” option and press OK. 5. Enter the name associated with the telephone number selected. Note: with this operation you can only associate the contact name with the number;... -
Page 31: Images And Sounds
Images and Sounds The IP PHONE 1535 includes several galleries for sounds, photos and videos. Various galleries are provided to allow the user to separate the different file types in the different galleries. The audios (sound) gallery includes fifty (50) pre-stored sounds in the Videophone gallery. An additional sixty (60) audios can be stored by the user, twenty (20) each in the Recorded Audios, Received and Other Melodies galleries. -
Page 32: Sound Galleries
• Received images, images stored from an SD/MMC card. 3. Select the desired image. 4. To access the available options, select “Options” from the left-hand side of the screen. The screen will display the options menu as below:: • Set as background: to establish the selected image as the background. •... -
Page 33: Video Gallery
Video Gallery 9.3.1 Recording Videos With your Videophone you can record up to twenty (20) sort video clips using the IP PHONE 1535 camera and save them in Video gallery. The recording procedure is as follows: 1. From idle select “main menu” → “images and sounds” →... -
Page 34: Calendar
10 Calendar The Videophone has the alarm function that can be set to notify the user with a display message at an assigned date and time. To set the alarm function: Select “main menu” → “organizer” → “calendar”. If there is no alarm programmed, the screen will display a message informing you of this and you will have the option to program an alarm with “Set”. -
Page 35: Phonebook
11 Phonebook The IP PHONE 1535 Videophone incorporates a Phonebook capable of storing up to 300 contact entries. For each record, you can enter a name (maximum 50 letters), a telephone number (primary), a mobile number (secondary), a fax number and an email address. Each telephone number (main, secondary and FAX) can be up to 50 digits. -
Page 36: Modifying An Entry
available by selecting “Options” • Voice Call: places a voice call to the contact. • Video Call: places a video call to the contact. • Details: displays details of the contact’s record in the Phonebook. • Modify: permits modifying the contact’s Phonebook record. •... -
Page 37: Sim Card
12 SIM Card The IP PHONE 1535 is equipped with an SIM (Subscriber Information Module) card-slot which allows the Phonebook entries to be copied to or from the card and the Videophone memory. 12.1 Copying entries from the SIM card To copy Phonebook entries from the SIM card: Insert the SIM card into the SIM card slot, see section 1.1. -
Page 38: Sd/Mmc
13 SD/MMC The IP PHONE 1535 is equipped with an SD/MMC (Secure Digital Multi-Media Card) slot which allows files to be copied to or from the card and the Videophone galleries, see section 9. 13.1 Copying files from the Memory card To copy files from a SD/MMC memory card to your Videophone: Inset the card into the SD/MMC slot (see section 1.1). -
Page 39: Maintenance And Problem Solving
14 Maintenance and Problem Solving 14.1 What Videophone version do I have? If you wish to know what the hardware and software version of your Videophone is, see section 3.6.7 Version Control. 14.2 Updating the Phone’s software If you wish to update the phone’s software, see section 3.6.7Version Control. -
Page 40: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
