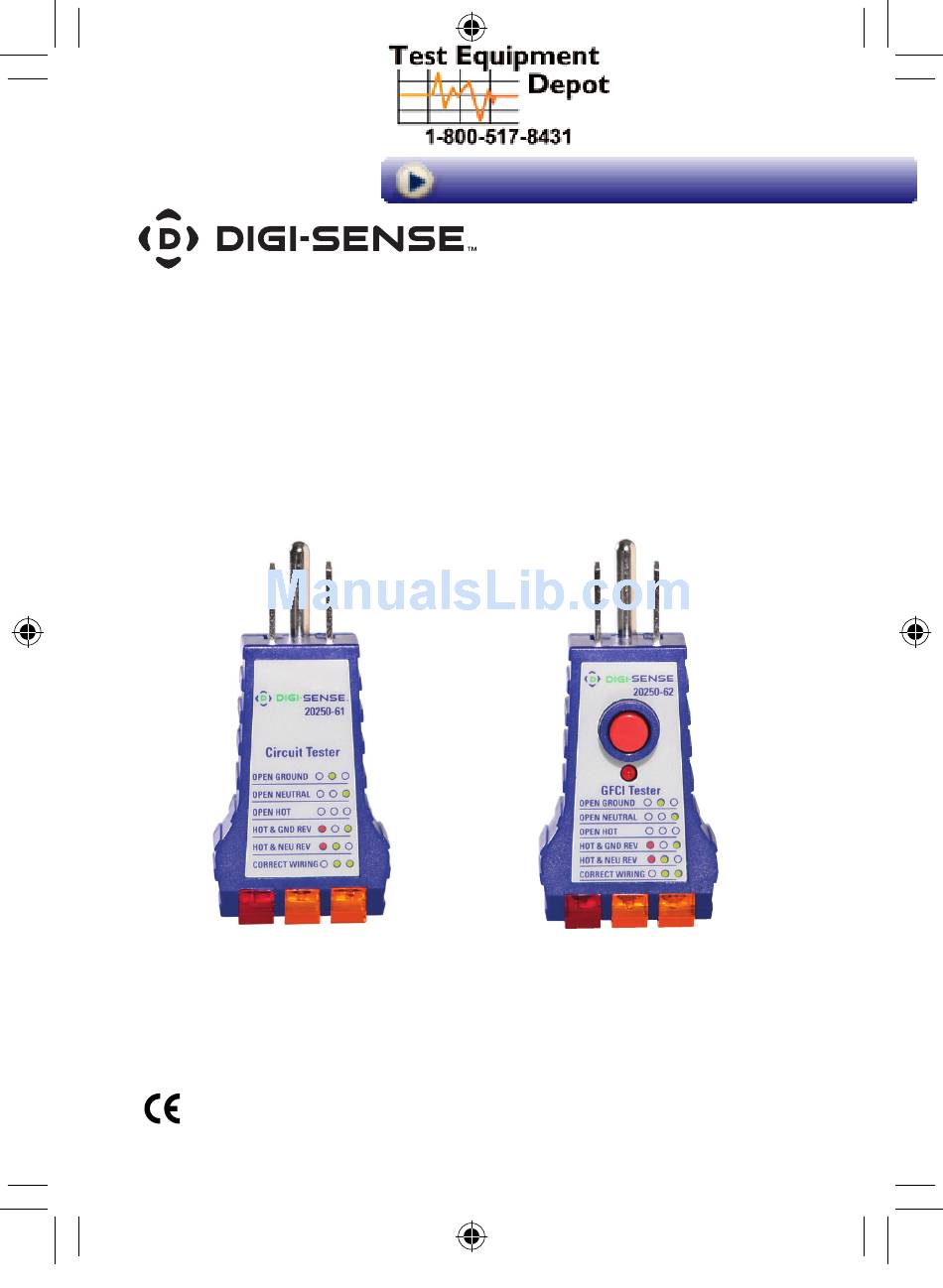

User Manual
Receptacle Testers

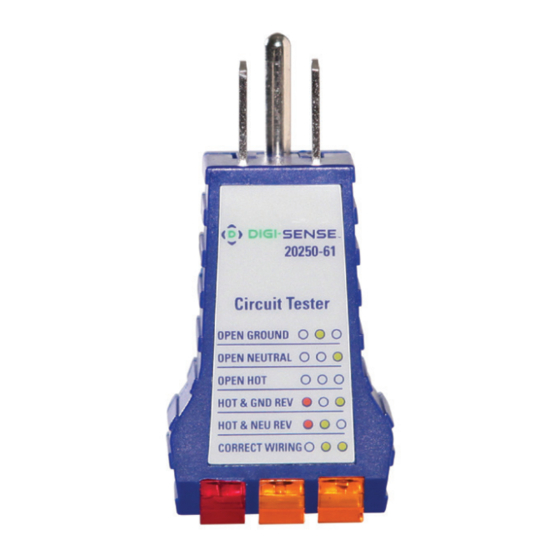

Model 20250-61 (Circuit Tester)
Model 20250-62 (GFCI Tester)
1065DGMAN_20250-61, -62 DS Receptacle.indd 1
20250-61
THE STANDARD IN PRECISION MEASUREMENT
Visit us at www.TestEquipmentDepot.com
20250-62
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
8/7/2017 2:39:25 PM

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20250-61 and is the answer not in the manual?

Questions and answers

Related Manuals for Digi-Sense 20250-61

Summary of Contents for Digi-Sense 20250-61

  • Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 User Manual Visit us at www.TestEquipmentDepot.com Receptacle Testers Model 20250-61 (Circuit Tester) Model 20250-62 (GFCI Tester) 20250-61 20250-62 THE STANDARD IN PRECISION MEASUREMENT 1065DGMAN_20250-61, -62 DS Receptacle.indd 1 8/7/2017 2:39:25 PM...

  • Page 2: Safety Precautions

    Introduction The Digi-Sense Circuit Tester (Model 20250-61) and GFCI Tester (Model 20250-62) are easy to use. These receptacle testers detect nearly all common improper wiring condi- tions for 110 to 125 VAC outlets. These instruments comply with UL 61010-01, CAT. II 125 V, and pollution 2. Careful use of these meters will provide years of reliable service.
  • Page 3 Safety Notes • Measurement Category II is for measurements performed on circuits directly connected to the low voltage installation. • Testers conform to UL STD.61010-1. • Testers are protected throughout by double insulation. Unpacking Check individual parts against the list of items below. If anything is missing or damaged, please contact your instrument supplier immediately.
  • Page 4 Circuit Tester Description (Model 20250-61) 1. Plug blades 2. Fault indicator table 3. Indicator lights GFCI Tester Description (Model 20250-62) 1. Plug blades 2. Test button 3. Receptacle power indicator 4. Fault indicator table 5. Indicator lights 1065DGMAN_20250-61, -62 DS Receptacle.indd 4...

  • Page 5: Setup And Operation

    Setup and Operation Circuit Tester (Model 20250-61) Note: For use on 110 to 125 VAC receptacles only. 1. Make sure the receptacle to be tested was installed in accordance with the manufacturer’s specifications. 2. Check for correct wiring of the receptacle and all remotely connected receptacles on the branch circuit by plugging the tester into each receptacle.
  • Page 6 6. Press the test button on the tester for a mínimum of 6 seconds, the indicator lights on the tester should go off when the GFCI receptacle trips. 7. If the tester does not trip the GFCI receptacle, either the GFCI receptacle is defective or it is wired improperly, consult an electrician.

  • Page 7: Specifications

    Fault Indicator Table Indicator Fault Reason for wiring fault Open ground Ground contact not connected Open neutral Neutral contact not connected Open hot Hot contact not connected Hot/ground Hot and ground contacts reversed interchanged Hot/neutral Hot and neutral contacts reversed interchanged Correct wiring Receptacle is wired correctly...
  • Page 8 For Product and Ordering Information, Contact: 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com 1065DGMAN_20250-61, -62 Manual Part No. 00101-96 1065DGMAN_20250-61, -62 DS Receptacle.indd 8 8/7/2017 2:39:26 PM...
