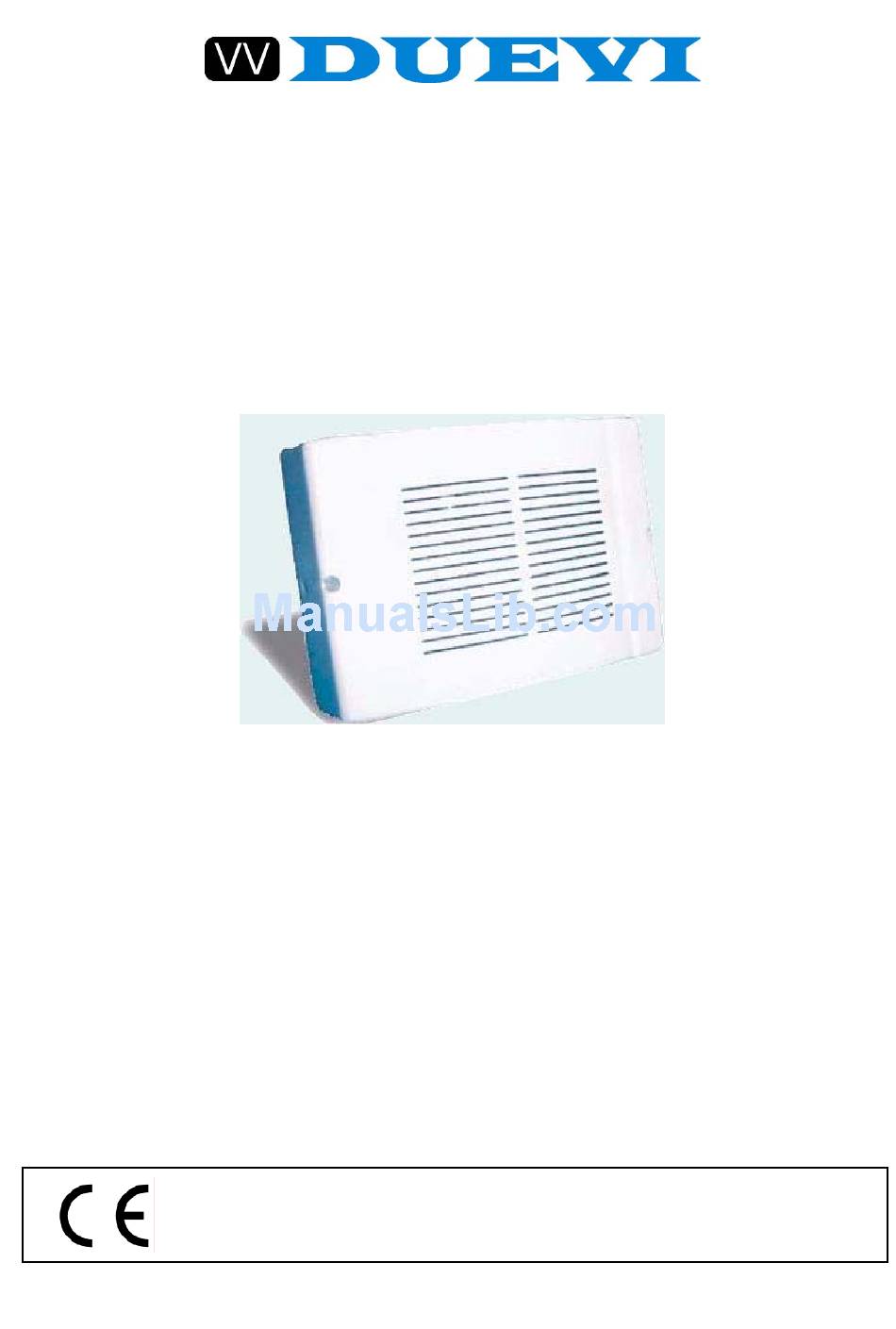

Duevi RX2 AP Instruction Manual

2 channels wireless receiver

RX2 AP

2 C H A N N E L S W I R E L E S S R E C E I V E R

INSTRUCTION MANUAL

(VERSION 2.4)

We thank you very much for choosing our product.

Now we would like to invite you to read carefully the following

instructions before installing the product in order to use all its capacities.

This electronic device is compliant to the essential requirements of the

European Union (EU) norms, concerning the electromagnetic compatibility

and the electric safety.

Table of Contents

Need help?

Do you have a question about the RX2 AP and is the answer not in the manual?

Page 1 RX2 AP 2 C H A N N E L S W I R E L E S S R E C E I V E R INSTRUCTION MANUAL (VERSION 2.4) We thank you very much for choosing our product.
Page 2 EVENTUAL MODIFICATIONS CARRIED OUT FROM NOT SPECIALIZED STAFF CAN DAMAGE THE DEVICE. RX2 AP is a 2 channels self-learning receiving device with 2 independent relay outputs. Each channel may store up to 5 wireless devices (sensors and remote controls). Each channel is related to a relay output with voltage-free contacts, that can be used as needed.
Page 3: Important Notice
3. “ONLY REMOTE CONTROLS” MODE (jumper C13 closed) In this working mode, the TXS remote controls are the only device that is considered by the receiver. Even if other devices are allowed to be programmed, that devices will be completely ignored by the receiver.
Page 4: Connecting Diagram
6. CONNECTING DIAGRAM JP2 closed = programming JP2 chiuso = apprendim. JP3 chiuso = canale1 bistabile JP3 closed = bistable outputs JP2 open = working JP2 aperto = normale JP3 aperto = canale 1 monostabile JP3 open = impulsive outputs C13 open = sensors and remote controls C13 closed = ONLY remote controls JP1 chiuso = 12 bit...
