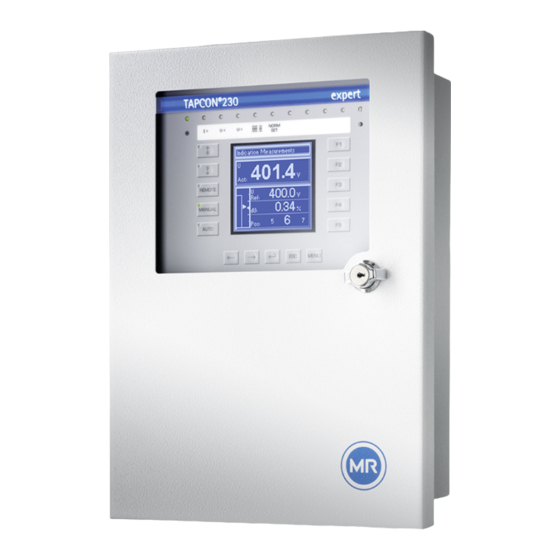

Maschinenfabrik Reinhausen TAPCON 230 expert Quick Manual

Voltage regulator
Hide thumbs Also See for TAPCON 230 expert:
Table of Contents

Advertisement

Quick Links

Download this manual
Voltage Regulator
TAPCON® 230 expert
Quick Guide
3552824/00 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAPCON 230 expert and is the answer not in the manual?

Questions and answers

Related Manuals for Maschinenfabrik Reinhausen TAPCON 230 expert

Summary of Contents for Maschinenfabrik Reinhausen TAPCON 230 expert

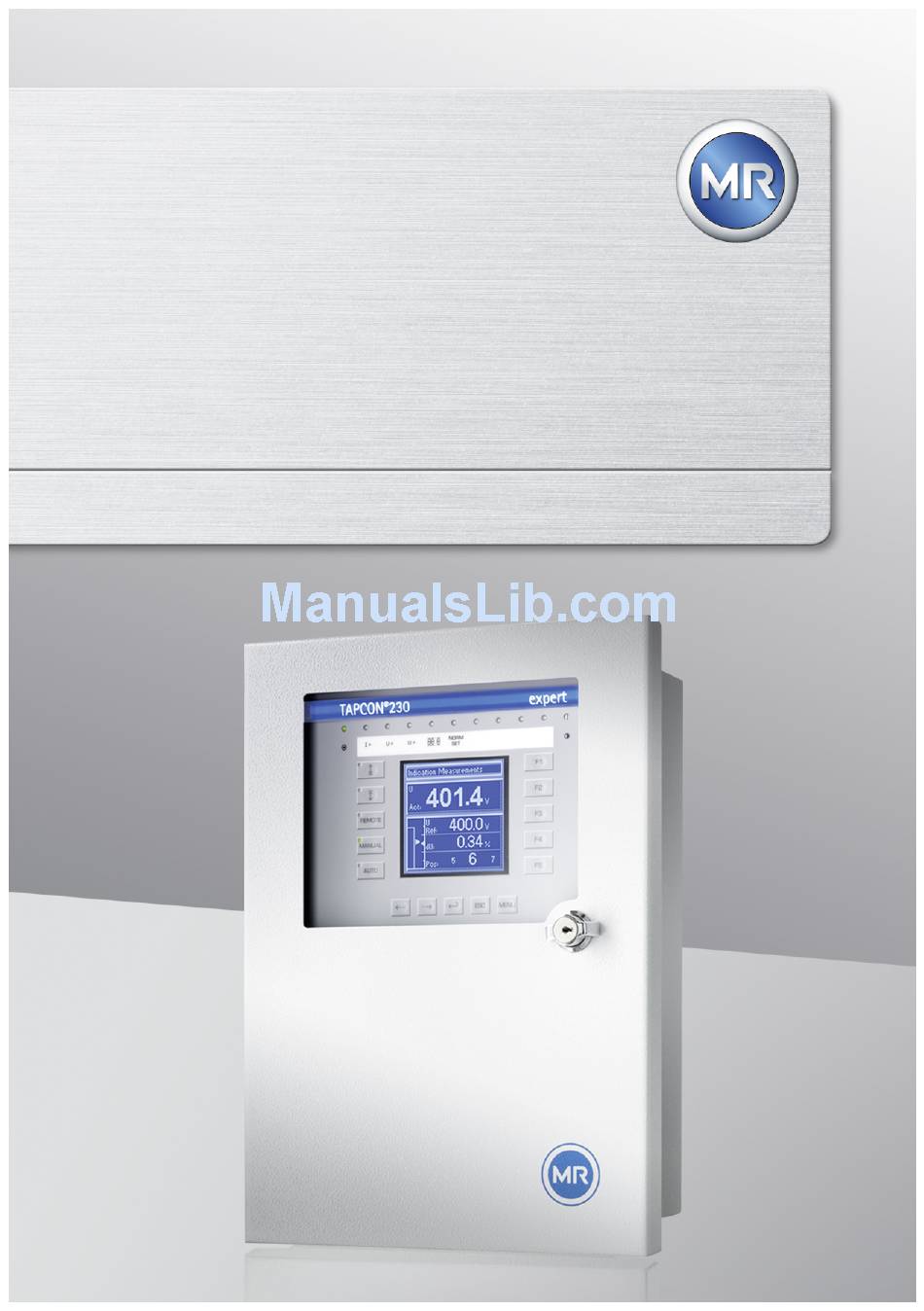

  • Page 1 Voltage Regulator TAPCON® 230 expert Quick Guide 3552824/00 EN...
  • Page 2 © All rights reserved by Maschinenfabrik Reinhausen Dissemination and reproduction of this document and use and disclosure of its content are strictly prohibited unless expressly permitted. Infringements will result in liability for compensation. All rights reserved in the event of the granting of patents, utility models or designs.

  • Page 3: Table Of Contents

    Table of contents Table of contents Introduction................5 Manufacturer ................5 Completeness................5 Supporting documents............... 5 Safekeeping................6 Safety..................7 Hardware .................. 8 Operating controls ..............8 Display elements ..............10 Functions and settings ............15 Setting the language..............15 NORMset.................
  • Page 4 Table of contents Overview of parameters............26...

  • Page 5: Introduction

    This technical file is intended solely for specially trained and authorized personnel. Manufacturer The product is manufactured by: Maschinenfabrik Reinhausen GmbH Falkensteinstraße 8 93059 Regensburg, Germany Tel.: (+49) 9 41/40 90-0 Fax: (+49) 9 41/40 90-7001 E-mail: sales@reinhausen.com Further information on the product and copies of this technical file are available from this address if required.

  • Page 6: Safekeeping

    1 Introduction Also observe generally valid legislation, standards and guidelines as well as specifications on accident preven- tion and environmental protection in the respective coun- try of use. Safekeeping This technical file and all supporting documents must be kept ready at hand and accessible for future use at all times.

  • Page 7: Safety

    2 Safety Safety This technical file does not replace the operating instruc- tions for the voltage regulator. The quick reference guide contains information that will provide a rapid introduction to operating the voltage regulator. ▪ For detailed operation and safety information please read carefully through the voltage regulator operating instructions.

  • Page 8: Hardware

    3 Hardware Hardware Operating controls The device has 15 pushbuttons. The illustration below is an overview of all the device's operating controls .
  • Page 9 3 Hardware Figure 1: Operating controls RAISE key: Sends control command for raise tap- change to the motor-drive unit in manual mode. LOWER key: Sends control command for lower tap- change to the motor-drive unit in manual mode. REMOTE key: Activate/deactivate "Remote" operating mode.

  • Page 10: Display Elements

    3 Hardware NEXT key: Change measured value display and switch to next parameters. ENTER key: Confirm selection and save modified pa- rameters. ESC key: Escape current menu and select previous menu levels. MENU key: Select main menu. F1 to F5 function keys: Select functions displayed on the screen.
  • Page 11 3 Hardware Figure 2: Indicator elements 1 Operating status LED, 9 LED 3, function can be green freely assigned, yellow/ green 2 Overcurrent blocking 10 LED 4, function can be LED, red freely assigned, yellow/red 3 Undervoltage blocking 11 Graphics display LED, red 4 Overvoltage blocking 12 Auto operating mode ac-...
  • Page 12 3 Hardware 6 NORMset active LED , 14 Remote operating mode green active LED 7 LED 1, function can be 15 Lower tap-change active freely assigned, yellow 8 LED 2, function can be 16 Raise tap-change active freely assigned, yellow...
  • Page 13 3 Hardware Display Figure 3: Display 1 Status line 6 Bandwidth (upper and lower limit) 2 Measured voltage U 7 Time bar for delay time T1 actual 3 Desired voltage U 8 Mark for measured volt- desired age U actual 4 Other measured values 9 Mark for desired voltage (use...
  • Page 14 3 Hardware Other measured values In auto mode and manual mode the measured value dis- play can be set using the keys. The follow- ing measured values can be displayed: Unit Measured value Control deviation Current Apparent power Active power Reactive power Phase Phase angle...

  • Page 15: Functions And Settings

    4 Functions and settings Functions and settings This chapter gives a short summary of all important func- tions and possible settings of the voltage regulator. For details, see the voltage regulator's operating instructions. Before carrying out the parameterization, proceed as fol- lows: If necessary, press at the same time to...

  • Page 16: Normset

    4 Functions and settings > Configuration > General. ð Language Press to select the required language. Press ð The language is set. NORMset NORMset mode is used for quickly starting voltage regu- lation. In NORMset mode, the bandwidth and delay time parameters are automatically adapted to the require- ments of the grid.
  • Page 17 4 Functions and settings A manual tap-change operation is required to activate NORMset. This is how the voltage regulator determines the bandwidth required. If the transformer is switched off, another manual tap- change operation is required. Proceed as follows to activate/deactivate NORMset mode: >...
  • Page 18 4 Functions and settings Press ð The primary voltage is set. Setting the secondary voltage With this parameter, you can set the voltage transform- er's secondary voltage. Proceed as follows to set the secondary voltage: > NORMset > Press until the desired parameter is displayed.

  • Page 19: Control Parameters

    4 Functions and settings Settings in kV are only possible if you have previously entered the parameters for primary and secondary volt- age. Proceed as follows to set the desired value: > NORMset > Press until the desired parameter is displayed. Desired value 1.

  • Page 20: Selecting A Desired Value

    4 Functions and settings Proceed as follows to set the desired value: > Control parameter > voltage regulator > Press until the desired parameter is dis- played. ð Desired value 1/Desired value 2/Desired val- ue 3. If you have already entered the transformer data, press to select the unit you want: "V"...

  • Page 21: Setting Delay Time T1

    4 Functions and settings Proceed as follows to select a desired value: > Control parameter > Voltage regula- tion > Press until the desired parameter is dis- played. ð Active Desired Volt. Level Press to select an active desired value. Press The selected desired value is active.

  • Page 22: Setting Control Response T1

    4 Functions and settings Press ð The delay time T1 is set. 4.3.4 Setting control response T1 You can set the control response as linear or integral. Linear Device responds with a constant delay time which is in- dependent of the control deviation. Integral Device responds with a variable delay time which is de- pendent on the control deviation.

  • Page 23: Setting Delay Time T2

    4 Functions and settings 4.3.5 Setting delay time T2 With this parameter, you can set delay time T2. Delay time T2 is used to compensate for large control devia- tions faster. Proceed as follows to set the delay time T2: >...

  • Page 24: Information About Device

    4 Functions and settings Information about device The info screen displays the following information: Figure 4: Info screen 1 Type designation 4 Additional cards 2 Software version 5 RAM memory 3 Serial number To display the info screen, proceed as follows: ►...
  • Page 25 4 Functions and settings ▪ MIO card digital outputs ▪ PIO card digital inputs ▪ PIO card digital outputs ▪ PIO card analog input ▪ Parallel operation ▪ Data on CAN bus ▪ Peak memory ▪ CI or IEC 61850 card information ▪...
  • Page 26 5 Overview of parameters Overview of parameters This section contains an overview of the relevant menus and parameters. Parameter Setting range Factory setting Current setting NORMset Normset activation On/Off Desired value 1 49...140 V 100 V Primary voltage 0...9,999 kV 0 kV Secondary voltage 57...123 V...
  • Page 27 5 Overview of parameters Parameter Setting range Factory setting Current setting Undervoltage U< [%] 60...100 % 90 % Delay time U< 0...20 s 10.0 s Undervolt. blocking U< On/Off U< below 30 V On/Off Overvoltage U> [%] 100...140 % 110 % Overvolt.
  • Page 28 5 Overview of parameters Parameter Setting range Factory setting Current setting Secondary voltage 57...123 V 100.0 V Primary current 0...10,000 A Current transformer Unknown; 1 A; Unknown connection Transformer circuit see operating in- 0 1PH structions Display kV / V kV / V Display % / A % / A...
  • Page 29 5 Overview of parameters Parameter Setting range Factory setting Current setting Manual/Automatic Manual/Auto Manual Local/Remote Local/Remote Local Configuration > Parallel operation Parallel operation acti- On/Off vation Parallel operation Circulating reac- Circulating reac- method tive current; Mas- tive current ter; Follower; Au- to synchroniza- tion Parallel operation...
  • Page 30 5 Overview of parameters Parameter Setting range Factory setting Current setting Follower tapping with- On/Off out U meas Configuration > User In/Outputs GPI 1 – X4:13 see operating in- structions GPI 2 – X4:14 GPI 3 – X4:15 GPI 4 – X4:16 Quick Tap GPI 5 –...
  • Page 31 5 Overview of parameters Parameter Setting range Factory setting Current setting LED 3 yellow LED 3 green LED 4 yellow LED 4 red Configuration - Tap position options Tap pos. capture see operating in- structions Analog Val. [%] Tap 0...100 % 0.0 % pos.
  • Page 32 5 Overview of parameters Parameter Setting range Factory setting Current setting Analog value desired 0...100 % 0.0 5 value min Analog value desired 0...100 % 100.0 % value max Minimum desired val- 0...140 V 80.0 V Maximum desired val- 0...140 V 140.0 V Configuration >...
  • Page 33 5 Overview of parameters Parameter Setting range Factory setting Current setting SCADA master ad- 0...9,999 dress Unsolicited messages On/Off Repeat unsolicited 0...100 messages Appl. confirm. timeout 1...60 s RS485 transmit delay 0...254 s time Configuration > Communication interface (TAPCON® 230 expert with IEC 61850 card) Network address 0.0.0.0...255.255.
  • Page 34 5 Overview of parameters Parameter Setting range Factory setting Current setting Measured values Calculated values LED test MIO card digital inputs MIO card digital outputs PIO card digital inputs PIO card digital outputs PIO X7 analog input Parallel operation Data on CAN bus Peak memory CI card information (TAPCON®...
  • Page 36 Maschinenfabrik Reinhausen GmbH +49 (0)941 4090-0 Falkensteinstrasse 8 +49(0)941 4090-7001 93059 Regensburg sales@reinhausen.com www.reinhausen.com 3552824/00 EN ▪ 02/14 ▪...
