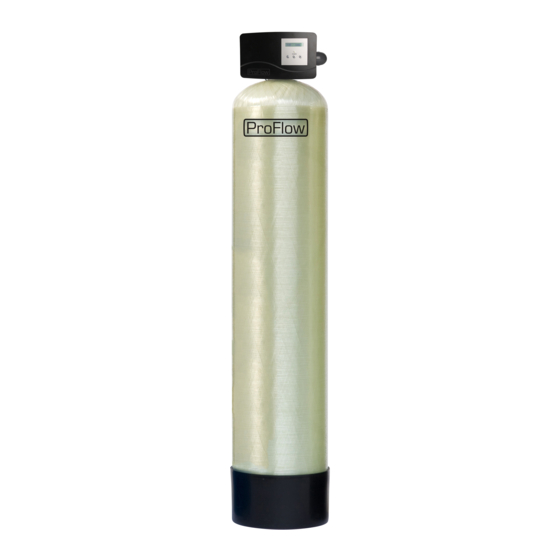

WARNING & SAFETY INSTRUCTIONS Before you begin the installation of the appliance, we advise you read and carefully follow the instructions contained in this manual. It contains important information about safety, installation, use and maintenance of the product. The actual system that you have received, may differ from the pictures/illustrations/descriptions in these Instructions.
OPERATING CONDITIONS & REQUIREMENTS APPLICATION LIMITATIONS PF-OXY: pH: for Iron removal: 6,8 - 9,0 for Manganese removal: 8,0 - 9,0 for Iron & Manganese removal: 8,0 - 8,5 maximum contaminant content: Iron (Fe 15 mg/L Manganese (Mn 2 mg/L Hydrogen Sulfide (H 5 mg/L...
Page 5
OPERATING CONDITIONS & REQUIREMENTS water heaters can sometimes transmit heat back down the cold pipe into the appliance; always install a check valve at the outlet of the appliance. ELECTRICAL CONNECTION: this appliance only works on 24 VAC; always use it in combination with the supplied transformer.
CONTROL VALVE Check the content of the system, using the Composition only for PF-OXY1 & PF-OXY Overview in these Instructions. Identify and lay-out the different components to facilitate the assembly. 1. Make sure the O-ring in the riser insert and the tank O-...
Page 7
ASSEMBLY AIR INJECTION SYSTEM only for PF-OXY1 & PF-OXY Picture 6.a Make sure the air injection system is installed in vertical position, with the check valve and air intake filter screen pointing upwards. Rotate it to this position if necessary.
To prevent backflow from the sewerage system into the appliance, always install and use an air gap (included with only for PF-OXY1 & PF-OXY PF-OXY1 & PF-OXY1 ), to connect the drain hose to the with factory bypass (optional) sewerage system.
COMMISSIONING ELECTRICAL 1. Connect the appliances power cord to the transformers output. 2. Plug the transformer into an electrical outlet. PRESSURIZING 1. Put the bypass system in 'bypass' position. 2. Make sure the electronic controller of the appliance is in service mode.
POWER FAILURE DRIVE MOTOR SPEED (only for PF-OXY1 & PF-OXY In the event of a power failure, the program will remain stored in the NOVRAM® during an undefined period, while an...
Page 11
ELECTRONIC CONTROL PANEL PROGRAMMING INSTRUCTIONS - BASIC SETTINGS Before entering the programming mode, make sure that the appliance is in the service mode. 1. Press the scroll button; the display will show: Language:English Press the up or down button to set the ...
Page 12
Cycle 1 Backwash Cycle 2 Air intake Cycle 3 Fast rinse Cycle 4 No function (PF-OXY1,5 & PF-OXY1,5 3. Press the scroll button again; the display will show: Regen @ 0:00 Press the up or down button to set the time of ...
when it is not necessary to supply treated water to the application. WITH FACTORY BYPASS (optional) (only for PF-OXY1 & PF- Picture 11.a SERVICE POSITION = inlet valve to appliance is OPEN = outlet valve from appliance is OPEN ...
Bypass between inlet and outlet of system PF-OXY1 only: check that mixing valve on factory bypass is completely closed Check that bypass valve on 3-valve bypass system is closed Valve body and timer out of synchronisation...
Page 15
Filter media is completely ‘caked’ (solid block) Replace filter media and reduce regeneration interval Control valve cycles PF-OXY1 & PF-OXY 1 only: defective micro Replace micro switches continuously switch PF-OXY1,5 & PF-OXY...
COMPOSITION OVERVIEW Media Control valve, incl. transformer, Pressure tank, Filter media Model Underbedding volume 1” male BSP connections incl. distributor assy (1 cuft bag) cuft model model type type 35669 2400TF/J5N/SV/AIR 10x40 Gravel 2-4 mm Birm 35670 2400TF/J5Q/SV/AIR 12x52 Gravel 2-4 mm Birm 35708 2400TF/J5S/SV/AIR...
