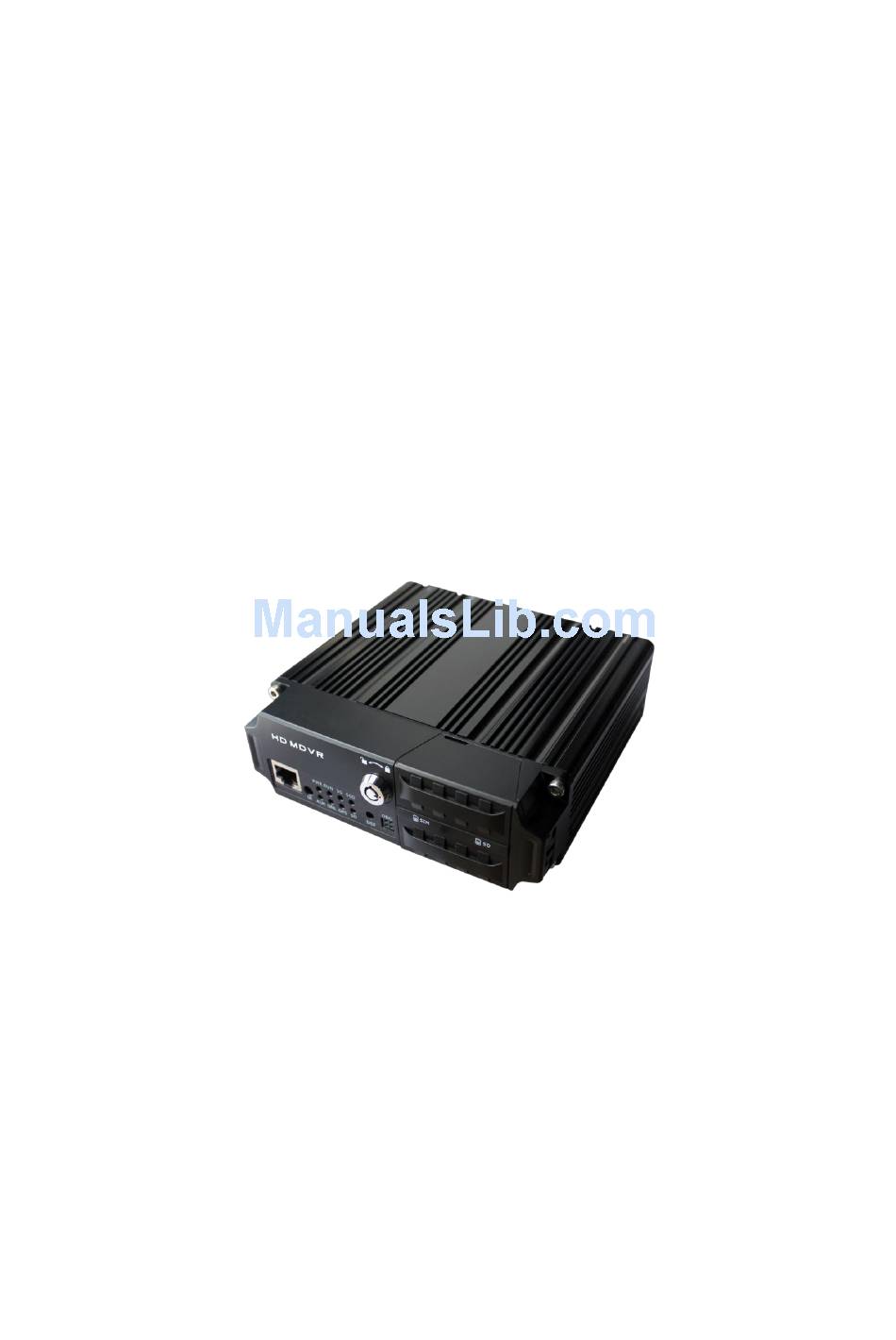

- Page 1 Mobile Digital Video Recorder Quick installation guide H3504...
-
Page 2: Unpacking And Inspection
H3504 MDVR Quick Installation Guide Preparation Unpacking and inspection Please check that the host is deformed or otherwise damaged after unpacking. If the above phenomenon exists, please stop using and contact your supplier. There is a packing list in the box. -
Page 3: Indicator Status
No SD card 2 SD2 is in recording Installation Prerequisite Before installing and configuring the H3504 HD video recorder, please confirm that you are ready: A computer, and the computer has been met: − Configure Ethernet card and TCP/IP protocol More than IE8.0 browser... -
Page 4: Installation Process
Install SIM card and SD card: install the SD storage medium purchased by the user (H3504 HD MDVR does not have SD card when you leave the factory and needs the user to purchase it by himself). - Page 5 H3504 MDVR Quick Installation Guide 2. Open the shaded cover on the right, and install the SIM card and SD card, as shown in figures 4.2_1 and 4.2_2. Figure 4.2_1 insert SIM card Figure 4.2_2 insert SIM card and SD card 3.
-
Page 6: Configure Device
H3504 MDVR Quick Installation Guide Configure device 1. Click "Start > Control panel" on PC, and double -click the "Network and shared center" in the open window. 2. Double-click the local connection, click "Properties" in the "Local connection status" window, double-click the "Internet protocol (TCP/IP)", and modify the regular network configuration in the... - Page 7 H3504 MDVR Quick Installation Guide Input user name and password (both are "admin" in default)。 Click“OK” 4. Click the Network Settings > dial settings. If you choose to use the 3G network, then dial automatically to select enable. After the device is successfully dialed, you can see the return IP in the status information.
- Page 8 H3504 MDVR Quick Installation Guide 6. Click "Network Settings > center settings, configure according to platform server parameter , connecting the platform after the success of the state information in" online "show" has even operation configuration, details please refer to the "H3504V20 MDVR" parameter specification.
-
Page 9: Installation Of Equipment
H3504 MDVR Quick Installation Guide Installation of equipment The horizontal installation method of the MDVR: the machine is flat on the installation cover plate, and the screws are used to fix the 4 sides of the machine foot fixing holes, and the machine is fastened on the mounting plate. -
Page 10: Wiring Of Power Cable
H3504 MDVR Quick Installation Guide Wiring of power cable The following figure is the power line of the high-definition car video recorder, one end is directly drawn from the power board, and the other end of the power supply is connected with an external power supply. - Page 11 Question 4: how do you reset the device (revert to factory settings)? On the H3504 HD car video recorder, there is a round hole marked "DEF" for the reset button. Please in the recorder device H3504 HD car under normal working conditions using acicular objects to press the DEF button 10 seconds, all lights also flash again shining at the same time, said the device has been restored to the factory default.
