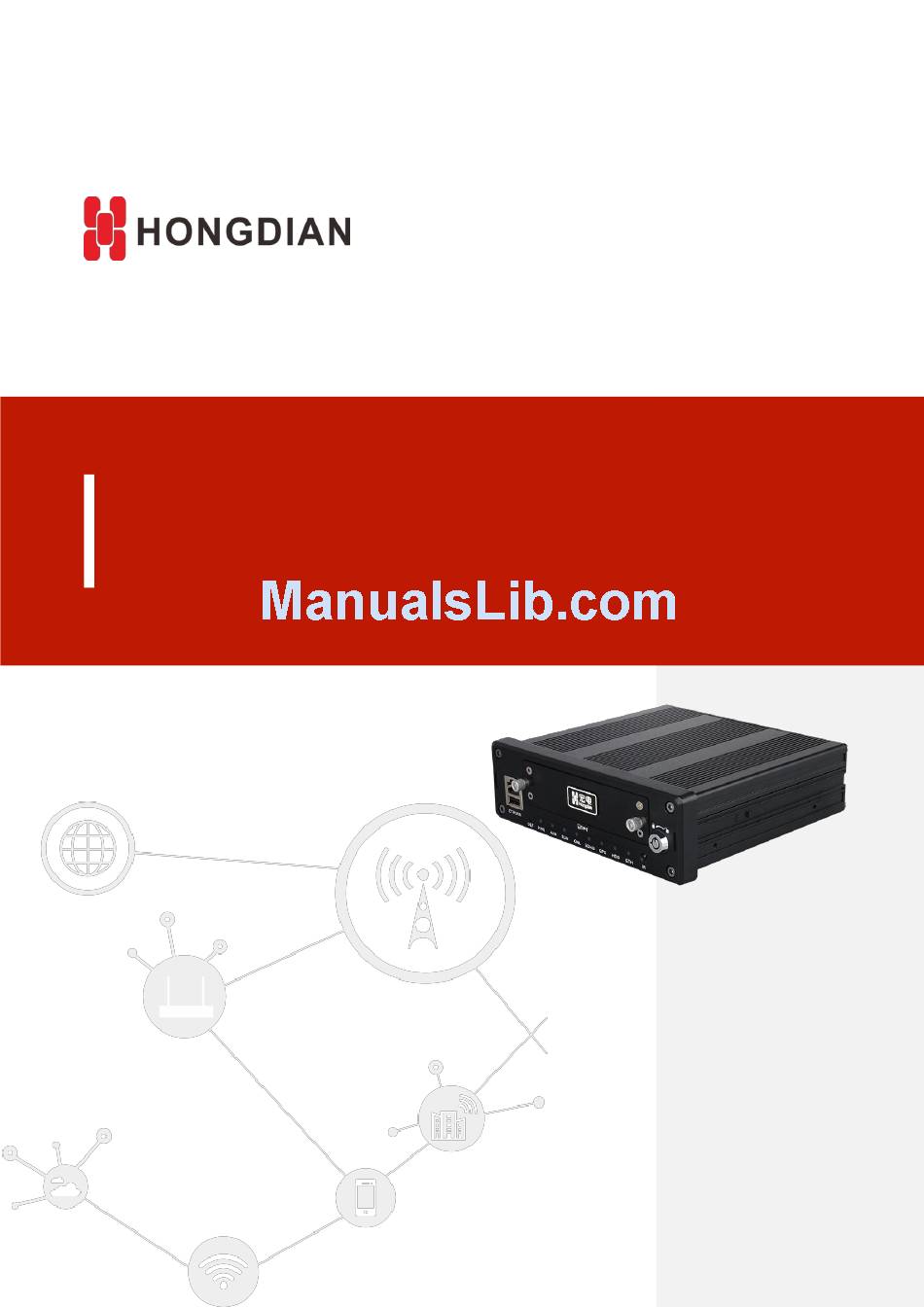

  • Page 1 User Manual H3526 MDVR...
  • Page 2 Hongdian Technologies Corporation. Trademarks and Permissions and DTU are the trademarks and logos of Shenzhen Hongdian Technologies Corporation. Other trademarks and logos mentioned in this manual belong to other organizations related. Shenzhen Hongdian Technologies Corporation does not own the rights of other trademarks and logos.
  • Page 3 H3526 MDVR User Manual Foreword Summary H3526 MDVR is a high-end, high-definition and vehicle-mounted video cassette recorder (VCR) under 3G/4G and stored in hard disk, with the functions of 6 channels audio and video collection, storage, GPS positioning and transmission.
  • Page 4 H3526 MDVR User Manual Section Contents 1.Introduction Brief introduction of H3526 MDVR that provides readers with preliminary understanding and impression on the product. 2.Installation Assembly and deploy process of H3526 MDVR. 3.Guidance for Quick Use Basic configuration and operation for quick use of H3526 MDVR through management tool.

  • Page 5: Mouse Operation

    H3526 MDVR User Manual Convention Description [ x | y | ... ] Optional items are grouped in brackets and separated by vertical bars. One item is selected or no item is selected. { x | y | ... } * Optional items are grouped in braces and separated by vertical bars.
  • Page 6 Press and hold the primary mouse button and move the pointer to a certain position. Update History Docume Data Description Version V1.0 2016-07-18 Release of H3526 MDVR, and the release of the manual for the first time. Doc. Version 1.0...

  • Page 7: Table Of Contents

    Contents 1 Product Introduction........................1 1.1 Summary ..................................... 1 1.2 Product Orientation ................................1 2 H3526 MDVR Installation......................3 2.1 Installation Process ................................3 2.2 Open Box ..................................... 4 2.3 Installation of Hard Disk and SIM Card .......................... 5 2.4 Connection of Device Line ............................... 9 2.5 Power Supply..................................17...
  • Page 8 H3526 MDVR User Manual 4.5.1 Modem setting ..............................41 4.5.2 WIFI settings ................................42 4.5.3 Ethernet settings ..............................44 4.5.4 Route setting................................45 4.5.5 Traffic control ................................46 4.6 External Device Management ............................46 4.6.1 Serial settings.................................46 4.6.2 Serial application..............................47 4.6.3 IO parameter settings............................49 4.7 System Management ..............................50 4.7.1 Formatting................................50...
  • Page 9 H3526 MDVR User Manual Figures Figure 1-1 Typical Network of H3526 MDVR................... 2 Figure 2-1 Installation Process of H3526 MDVR ................4 Figure 2-2 Unlock Hard Disk......................5 Figure 2-3 Unscrew Spring Screws....................5 Figure 2-4 Extract Hard Disk ......................6 Figure 2-5 Installation Position of SIM Card..................
  • Page 10 H3526 MDVR User Manual Figure 3-2 Local Connection Status ....................21 Figure 3-3 Internet Protocol (TCP/IP) .................... 22 Figure 3-4 Property Window of Internet Protocol (TCP/IPv4) ............. 23 Figure 3-5 Advanced TCP/IP Settings .................... 24 Figure 3-6 TCP/IP Address......................24 Figure 3-7 Login Verification Window ...................
  • Page 11 H3526 MDVR User Manual Figure 4-24 “Route Setting” Interface ................... 45 Figure 4-25 “Route Mode” Manual Operation Interface ............. 45 Figure 4-26 Traffic Control Interface ..................... 46 Figure 4-27 “Serial Settings” Interface ..................47 Figure 4-28 “Serial Applications” Interface ................... 48 Figure 4-29 “IO_IN1 Settings”...
  • Page 12 H3526 MDVR User Manual Figure 4-56 Control Download Interface ..................70 Figure 4-57 Pop-up Installation Warning ..................70 Figure 4-58 Normally Watch Video ....................71 Figure 4-59 Modem Setting Configuration..................71 Figure 4-60 Center Server Settings ....................72 Figure 4-61 PTZ Software Settings....................72...

  • Page 13: Product Introduction

    H3526 MDVR. 1.1 Summary H3526 MDVR (Mobile Disk Video Recorder) is a high-end, high-definition and vehicle-mounted video cassette recorder (VCR) under 3G/4G and stored in hard disk, with the functions of 6 channels audio and video collection, 1-way MIC, storage, GPS positioning and transmission.

  • Page 14: Figure 1-1 Typical Network Of H3526 Mdvr

    H3526 MDVR User Manual Figure 1-1 Typical Network of H3526 MDVR Hongdian Corporation...

  • Page 15: H3526 Mdvr Installation

    2.4 Connection of Device Connection of connecting line in H3526 MDVR. Line 2.5Power Supply Power supply to H3526 MDVR. 2.6Installation Inspection Installation inspection of H3526 MDVR after installation. 2.1 Installation Process See Fig. 2-1 for the installation process of H3526 MDVR. Hongdian Corporation...

  • Page 16: Open Box

    2. Install hard disk and SIM card, hard disk is used for storing the video data. Connect the device line: Connect the connection lines of H3526 MDVR to VGA monitor, including power line, audio and video signal input line, I/O warning line, voice intercom line, serial port line, communication antenna, network line and other lines, Power supply: Power on H3526 MDVR.

  • Page 17: Installation Of Hard Disk And Sim Card

    H3526 MDVR User Manual 2.3 Installation of Hard Disk and SIM Card H3526 MDVR supports both mechanical hard disk and SSD (Solid State Disk), so customers may select which one to use according to their needs. According to our test experience, the video data generated in every 30 min. will be 50MB~60MB when the relevant parameter settings of device are one-way CIF form, PAL form, 25 frame/s and 200kbps.

  • Page 18: Figure 2-4 Extract Hard Disk

    H3526 MDVR User Manual Figure 2-4 Extract Hard Disk Step 3 Insert SIM card, as shown in Fig. 2. Figure 2-5 Installation Position of SIM Card Step 4 Insert hard disk, screw spring screws and lock the hard disk. Figure 2-6 Screw Spring Screws and Lock...

  • Page 19: Figure 2-7 Extract Hard Disk Cartridge

    H3526 MDVR User Manual Step 5 Unlock hard disk, unscrew captive screws and extract hard disk cartridge, as shown in Fig. 2-7. Figure 2-7 Extract Hard Disk Cartridge Step 6 Unscrew square head screws, as shown in Fig. 2-8. Figure 2-8 Unscrew Square Head Screws Step 7 Align and horizontally push the hard disk interface into the hard disk cartridge interface, as shown in Fig.

  • Page 20: Figure 2-9 Insert Hard Disk

    H3526 MDVR User Manual Figure 2-9 Insert Hard Disk Step 8 Turn the hard disk cartridge upside down, hold the hard disk by hands, and tighten the set screws, as shown in Fig. 2-10. Figure 2-10 Install Set Screws on Hard Disk Step 9 Then install the cover of hard disk cartridge and tighten the square head screws, as shown in Fig.

  • Page 21: Connection Of Device Line

    2.4 Connection of Device Line Background The connectors of H3526 MDVR are mainlyin its front and rear panels, andtheir related information shall be known before the connection. See Fig. 2-6, Fig. 2-7 and Table 2-1 for the interface and its definition of front and rear panels.

  • Page 22: Figure 2-12 Front Panel Interface

    H3526 MDVR User Manual Figure 2-12 Front Panel Interface Figure 2-13 Rear Panel Interface Table 2-1 Definition of Panel Interface Interface Descripti Comments Panel position Ethernet + USB Sel f-adaption Ethernet interfa ce, Front interfa ce 10/100BaseT standa rd panel...

  • Page 23: Figure 2-14 I/O & Rs485 & Rs232 5V/12V Out Interface

    H3526 MDVR User Manual Interface Descripti Comments Panel position 5V/12V connecting. Provide power for camera and other external devi ces . Wi Fi interfa ce WIFI WIFI antenna connector VGA interfa ce VGA output interfa ce Power input DC IN...
  • Page 24 H3526 MDVR User Manual Sequen Label Functions  High level 12V  Low level 0V Grounding 12_OUT Provide power for other external device (supply current < 0.5A) No connection Grounding No connection No connection Grounding PC_TX2 Transmitted Data (RS232 interface)

  • Page 25: Figure 2-15 Line Sequence Of Av In Interface

    H3526 MDVR User Manual Figure 2-15 Line Sequence of AV IN Interface Figure 2-16 Line Sequence of AV OUT Interface Figure 2-17 Line Sequence of External Plug of AV OUT Interface Voice Intercom I/O The voice intercom I/O interface isas shown in Fig. 2-12. Insert the PIN plug of the voice intercom I/O to the INTERCOM interface for the connecting.

  • Page 26: Figure 2-18 Voice Intercom I/O Interface

    H3526 MDVR User Manual Figure 2-18 Voice Intercom I/O Interface Table 2-3 I/O Interface of Voice Intercom Pins Definition Pins Definition MICINP OUT_R OUT_L MICINN 5V OUT Figure 2-19 Voice Intercom I/O Line Hongdian Corporation...

  • Page 27: Figure 2-20 Power Connector

    H3526 MDVR User Manual Power connector See Fig. 2-14 for the power interface and Fig. 2-4 for the line sequence. Figure 2-20 Power Connector Table 2-4 Connection Sequence of Power Supply Sequenc Label Comments Grounding DC IN + Positive pole of power Ignition wire See Fig.

  • Page 28: Figure 2-22 Ethernet + Usbinterface

    H3526 MDVR User Manual Figure 2-22 Ethernet + USBinterface ETH: The Ethernet interface adopts RJ-45 connector, as a standard self-adaption 10/100BaseT Ethernet exchanging interface USB: Standard USB2.0 interface VGA interface It is an interface that connects monitor, as shown in Fig. 2-23. See Fig. 2-5 for the comments of its line sequence.

  • Page 29: Power Supply

    Please verify whether the positive and negative poles are short-circuited or inversely connected, or the device may be burnt out. The power line and ignition wire of H3526 MDVR shall be correctly connected to the stabilized voltage supply before power on.
  • Page 30 H3526 MDVR User Manual Step 5 H3526 MDVR is normally working ifPOWER and RUN indicators are on after locking. Step 6 Internet connect is normal if ETH indicator is on after locking. Hongdian Corporation...

  • Page 31: Guidance For Quick Use

    Registration of H3526 MDVR in platform server. Platform Server 3.1 Indicator in Terminal Panel All of the 8 indicators of H3526 MDVR are in the front panel of device. See Table 3 -1 for their status. Table 3-1 Explanation of Panel Indicator State...

  • Page 32: Configuration Of Local Connection

    3.2 Configuration of Local Connection Background H3526 MDVR system is mainly managed and configured by its friendly WEB graphical interfaces. Therefore, the user must well connect and power on the cables according to the installation steps, and configure the local connection in local computer. Then the u ser can manage and configure the device by logging in system with Ethernet link after the configuration.

  • Page 33: Figure 3-1 Network Connection Window

    H3526 MDVR User Manual Figure 3-1 Network Connection Window Step 2 Double click “Local Area Connection” to open “Local Area Connection Status” window, as shown in Fig. 3-2. Figure 3-2 Local Connection Status Step 3 Click “Property” in ““Local Area Connection Status”” window to open “Local Area Connection Property”...

  • Page 34: Figure 3-3 Internet Protocol (Tcp/Ip)

    H3526 MDVR User Manual Figure 3-3 Internet Protocol (TCP/IP) General configuration and advanced configuration are the major configuration modes in the following configurations. General configuration Double click “Internet Protocol (TCP/IPv4)” i n “Local Connection Property” window to open “Internet Protocol (TCP/IPv4)” window, and modify general Internet configuration in “General”...

  • Page 35: Figure 3-4 Property Window Of Internet Protocol (Tcp/Ipv4)

    H3526 MDVR User Manual Figure 3-4 Property Window of Internet Protocol (TCP/IPv4) Note: IP address can be 192.168.8.* (* can be any integer from 2 to 254). Click “OK” to finish the configuration. Hongdian Corporation...

  • Page 36: Figure 3-5 Advanced Tcp/Ip Settings

    H3526 MDVR. Advanced configuration The user can add the route when configuring H3526 MDVR without disconnecting the LAN communication of local PC under the original Internet environment (Step 1~Step 3). Click “Advanced” of Fig. 3-4 to open “Advanced TCP/IP settings”, as shown in Fig. 3-5.

  • Page 37: Registration In Platform Server

    H3526 MDVR User Manual ---Finish Configuration inspection Step 1 Open IE, input http: //192.168.8.1 and press“Enter” in local computer. Login dialogue will appear in the webpage, as shown in Fig. 3-7. Figure 3-7 Login Verification Window Step 2 Input user name and password and click “Go”. The webpagewill prompt to install the controlHD_AxPlayer.ocx.

  • Page 38: Figure 3-8 Mobile Network Configuration

    H3526 MDVR User Manual Preparations  Make sure the hard disk is correctly installed in H3526 MDVR.  Make sure SIM card is correctly installed in H3526 MDVR.  Make sure H3526 MDVR correctly connect to 3G/4G antenna.  Make sure WEB configuration interface can be normally visited and logged in.

  • Page 39: Figure 3-10 Setting Interface Of Access Server

    Step 1 Check whether 3G/4G indicator of H3526 MDVR is normally on, 3G/4Gnetworkhas been connected if the light is on. Step 2 Check whether ONLINE indicator of H3526 MDVR is normally on, the device has been registered in the platform if the light is on.
  • Page 40 H3526 MDVR User Manual Step 4 ---Finish Hongdian Corporation...

  • Page 41: Guidance For Advance Use

    4.1 Video Play Background Hongdian H3526 MDVR system supports 6-channels audio and video display. Wherein, Channels 1-4 are SD channels, and Channel 5 and 6 are HD channels (self-adaptation SD channels). “Audio and Video Play” function mainly used for displaying the real-time videos of the channels or the historic storage videos of the server platform.

  • Page 42: Figure 4-1 Video Play Screen And Play Option

    H3526 MDVR plays in four split screens. The user can double click to display the image of specific channel in full screen, and double cl ick again to return back to single screen.

  • Page 43: Figure 4-2 Control Menu Of Control Interface In Ptz

    H3526 MDVR User Manual Figure 4-2 Control Menu of Control Interface in PTZ See Fig. 4-3 for the control button of PTZ video. Figure 4-3 Video Control Button of PTZ Click “ ” to lengthen the current channel of PTZ.

  • Page 44: Query Of Device Information

    “Device Status” show the wireless (3G) network status, WiFi network status, center on-line status and video storage status of H3526 MDVR device. Network status indicates the healthy degree of network. The user will know the network status, network type and IP address in time by querying the network information.

  • Page 45: Video Settings

    H3526 MDVR User Manual Figure 4-7 Modem Net Info Figure 4-8 WIFI Info Figure 4-9 Center Online Status Figure 4-10 Video Storage Status 4.3 Video Settings 4.3.1 Video encoding Background “Video Encoding” provides the basic parameters necessary to video coding to maintain the optimal audio and video output streams, including video resolution ratio, frame rate, code rate control, code rate and other set functions.

  • Page 46: Figure 4-11 Video Encoding Interface

    Step 1 Click “Video Setting> Video Encoding” to access the video encoding interface, as shown in Fig. 4-11. Configure the parameters of “Live Stream” and “Storage Stream” in four channels in the interface. See “2.1.1 Video Encoding” of H3526 MDVR Parameters Details (V1.0) for the parameters.

  • Page 47: Video Output

    H3526 MDVR User Manual Figure 4-12 Advanced Options Interface Step 3 Click “Save” to finish the parameter configuration of “Video Encoding” after configuring the parameters in all channels. ---Finish 4.3.2 Video output Background The configuration of “Video Output” is used for setting the display mode of video in monitor.

  • Page 48: Osd Setting

    H3526 MDVR User Manual (1) The moni tor terminal will displa y the video of selected channel under the “Full Screen” mode. (2) The monitor terminal will displa y the video of 4-wa y channel under the “Nine Spli t Screen” even i f the users ha ve not selected the channel .

  • Page 49: Storage Setting

    H3526 MDVR User Manual Figure 4-14 OSD Setting Interface You can change the OSD posi tion by dra gging i t in the pla y window, as shown in Fig. 4-14. The swi tch in this text is forbidden i n defaul t settings .

  • Page 50: Image Settings

    We recommend the default settings. Step 3 See storage settings of H3526 MDVR Parameters Details (V1.0) for parameters. Step 4 Click “Save” to finish the parameter settings. Step 5 ---Finish 4.3.5 Image settings...

  • Page 51: Device Setting

    H3526 MDVR User Manual 4.4 Device Setting 4.4.1 Basic setting Background It is used for configuring the basic property parameters o f terminals and is essential for connecting the device to center server. Operation steps Step 1 Select “Terminal Setting> Basic Setting” to enter “Basic Setting” interface, configure the parameters as per the actual conditions and then save, as shown in Fig.

  • Page 52: Extend Setting

    H3526 MDVR User Manual Figure 4-18 “Server Setting” Interface Step 2 Configure the address, TCP and UDP port numbers of main/standby server according to the information of “Server Setting” interface. TCP port 52473 is the default port of server. Step 3 Click “Save” to finish the settings.

  • Page 53: Network Setting

    Figure 4-19 “Extend Setting” Interface 4.5 Network Setting 4.5.1 Modem setting Background H3526 MDVR supports 3G/4G wireless network transmission. Modem setting is a dial mode that dials through wireless module and connects to external network under wireless condition. Operation steps Step 1 Click “Network Setting>Modem Setting”...

  • Page 54: Wifi Settings

    H3526 MDVR User Manual Figure 4-20 “Modem Setting” Interface Step 2 Step2: Input default user name and password “card/card” in “Modem Setting” interface. Step 3 Click “Save” to finish the settings. ---Finish 4.5.2 WIFI settings Background WiFi (Wireless Fidelity) is a kind of wireless network technology, which enable the users to surf the Internet in wireless network.

  • Page 55: Figure 4-21 "Wireless Device Status" Settings Interface

    Step 2 Select “Enable” in “Network Status”. Step 3 Select “AP” in “WiFi Mode”, configure the corresponding parameters based on the interface information and save the configuration. See “2.6.4 Wi-Fi settings” of H3526 MDVR Parameters Details (V1.0) for the WiFi setting parameters. ---Finish “WiFi mode”...

  • Page 56: Ethernet Settings

    The para meters “Encryption” and “Sha red Key” under the algori thm will be displa yed when “Safe Mode” is “WEPAUTO” and “Encryption Al gori thm” Is “WEP”. See WiFi settings of H3526 MDVR Parameters Details (V1.0) for the pa ra meters in WiFi configura tion.

  • Page 57: Route Setting

    --Finish 4.5.4 Route setting Background “Route Setting” is used for setting the route strategy of H3526 MDVR, including default route settings and NAT function settings. Operation steps Step 1 Select “Network Setting > Route Setting” to access “Route Setting” interface, as shown in Fig.

  • Page 58: Traffic Control

    4.5.5 Traffic control Background “Traffic Control” is used for controlling the WiFi traffic of H3526 MDVR. The traffic consumed in platform business will not be limited but will be included in the total traffic. The WiFi speed of mobile phone will be influenced when the total traffic is over the set value.

  • Page 59: Serial Application

    Settings” of H3526 MDVR Parameters Details (V1.0) for the parameters. Step 3 Click “Save” to finish the configuration. Step 4 ---Finish H3526 MDVR supports the serial port communi ca tions of RS232 and RS485. com0 for RS485 serial port and com1 for RS232 serial port. Step 5 4.6.2 Serial application...

  • Page 60: Figure 4-28 "Serial Applications" Interface

    H3526 MDVR User Manual Figure 4-28 “Serial Applications” Interface Hongdian Corporation...

  • Page 61: Io Parameter Settings

    H3526 MDVR User Manual Step 2 Set the parameters of for each Serial Applications based on the interface information. See “Serial Application” of H3526 MDVR Parameters Details (V1.0) for the parameters of Serial Applications settings. Step 3 Click “Save”. Step 4 ---Finish 4.6.3 IO parameter settings...

  • Page 62: System Management

    “Format The Storage” is used for formatting the store hard disk when the data stored in the hard disk is too big. H3526 MDVR can formats the specified storage device. If the storage capacity is too large, the hard disk format will be slower. Power out ages are not allowed in formatting.

  • Page 63: Time

    H3526 MDVR User Manual Operation steps Step 1 Select “System Mgmt > Formatting” to access “Formatting” interface. See Fig. 4-31 for “Format The Storage” interface. Figure 4-31 “Format the Storage” Interface Step 2 Select the storage medium to be processed and click “Format”.

  • Page 64: Figure 4-33 "System Clock Settings" Interface

    H3526 MDVR User Manual GPS timing Step 1 Select “System Mgmt > Time” to access “System Clock Settings” interface, and select “GPS”, as shown in Fig. 4-33. Figure 4-33 “System Clock Settings” Interface Step 2 Click “Save” to finish. Step 3 Check whether the current system time has been calibrated in the top right corner of operation page after the calibration.

  • Page 65: Log Management

    H3526 MDVR User Manual Manual timing Step 1 Select “System Mgmt > Time” to access “System Clock Settings” interface, and select “Manual”, as shown in Fig. 4-35. Figure 4-35 “System Clock Settings” Interface Step 2 Click “Save” to finish “Manual”.

  • Page 66: Upgrading

    (2) Please do not click “Cancel” during upgrading, otherwise unpredictable errors may appear. (3) Please do not perform other operations on H3526 MDVR system page during upgrading. Operation steps Step 1 Select “System Mgmt> Upgrading” to access “Upgrading” interface, as shown in Fig. 4-37.

  • Page 67: Configuration Management

    H3526 MDVR User Manual Figure 4-37 “Upgrading” Interface Step 2 Click “Browse” to search for the file to be updated in local files, as shown in Fig. 4-38. Figure 4-38 “Upgrading” Interface Step 3 Click “Upgrade”, then the system will prompt “Update or not?”.

  • Page 68: Account Management

    H3526 MDVR User Manual Figure 4-40 File Download Dialog Step 3 Click “Save” or“ Save as” to export “conFig. tar” configuration file as the local file. ---Finish Configuration import Step 1 Select “System Mgmt > Config Mgmt” to access “Config Mgmt” interface, as shown in Fig.

  • Page 69: Reboot

    H3526 MDVR User Manual Figure 4-43 “Account Settings” Interface Step 2 Input new password in password field, and click “Save” to finish the password modification. Opera tion a ccount Admin is the common and daily opera tion configura tion and opera tion mana gement ri ght, whi ch is not for publi c use.

  • Page 70: System Recovery

    H3526 MDVR User Manual Figure 4-44 “System Reboot” Interface Step 2 Click “Reboot” and wait until it is finished. IE browser will automatically enter into index page after 20 seconds of restarting MDVR. ---Finish 4.7.8 System recovery Background System recovery is used for recovering the system configuration to the factory configuration status.

  • Page 71: Power Setting

    H3526 MDVR can boot up and shut down with hard disk lock. Please turn the key to “LOCK” position to boot up the device when there is no other booting up and s hutting down modes.

  • Page 72: Upgrading Service

    H3526 MDVR User Manual Figure 4-47 Timing Mode Settings Interface “Booting up Time” and “Shutti ng down Time” shall be configured in the modes of “Timing Booting up and Shutting down” or “Igni tion Priori ty”. Please set the time based on the a ctual conditi ons .

  • Page 73: Figure 4-48 Upgrading Service Settings Interface

    H3526 MDVR User Manual Operation steps Step 1 Click “System Mgmt > Upgrading Service” to access “Upgrading Service” screen, as shown in Fig. 4-48. Figure 4-48 Upgrading Service Settings Interface Step 2 Fill in remote server address, click “Save” to finish the setting, configure the upgrading file of remote upgrading server terminal and connect the device.

  • Page 75: Faq

    FAQ。Configuration FAQ in the use of H3526 MDVR. Configuration 5.1 Operation FAQ I select “Channel 4” in web interface of H3526 MDVR and then click “Play”, but only the words of CHN4 and time appear without any videos, why? Hongdian Corporation...

  • Page 76: Figure 4-49 Upgrading Service Settings Interface

    Please contact out Technical Support Engineer to position the problem if it cannot be saved after the above operation. There is no video output in the device side when H3526 MDVR device is normally working, why? Check whether the camera of video input terminal is correctly installed.

  • Page 77: Configuration Faq

    Please contact our Technical Support Engineer to position the problem if the problem still exists after the above operation. 5.2 Configuration FAQ There is no video but only a white page with “X” in the web interface of H3526 MDVR (as shown in Fig. 5-4), why? Hongdian Corporation...

  • Page 78: Figure 4-52 Cannot Play

    H3526 MDVR User Manual Figure 4-52 Cannot Play Answer: Maybe you haven’t downloaded and installed the video control of Hongdian. The video control can be downloaded and installed as per the following operation steps: (1) Open IE browser, select “Tool > Internet Options” and open “Internet Options” interface, as shown in Fig.

  • Page 79: Figure 4-53 "Internet Options" Interface

    H3526 MDVR User Manual Figure 4-53 “Internet Options” Interface (2) Click “Security” tab, and click “Self-define Grade” to open “Security Settings-Internet Area”, as shown in Fig. 5-6. Hongdian Corporation...

  • Page 80: Figure 4-54 "Security Settings - Internet Area" Interface

    H3526 MDVR User Manual Figure 4-54 “Security Settings – Internet Area” Interface (3) Set the values of items contained in “ActiveX Control and Plug-in”. The item values are as shown in Fig. 5-7. Hongdian Corporation...

  • Page 81: Figure 4-55 "Activex Control And Plug-In" Settings

    Figure 4-55 “ActiveX Control and Plug-in” Settings (4) Click “OK” to finish the settings. Close IE browser and re-open Web configuration interface of H3526 MDVR. The following prompt information will appear: The following add-in shall run in the website: Hongdian Corporation...

  • Page 82: Figure 4-56 Control Download Interface

    H3526 MDVR User Manual “HD_AxPlayer” of “Control Name not Applicable”. Please click here if you trust the website and the add-in, and allow running the add-in. Figure 4-56 Control Download Interface (5) Right-click the prompt information and select “Running Load” to access “Security Warning”...

  • Page 83: Figure 4-58 Normally Watch Video

    H3526 MDVR User Manual Figure 4-58 Normally Watch Video Why POWER light and RUN light of H3526 MDVR are on, but 3 G light is off? Please check whether the SIM card of H3526 MDVR has been correctly installed. Please check whether 3G antenna of H3526 MDVR has been connected.

  • Page 84: Figure 4-60 Center Server Settings

    (2) Please click “Device Setting>Server Setting” in Web configuration interface of H3526 MDVR, and check whether the address, port, device ID of access server are consistent with that of iScan platform server. Please reset if not. See Fig. 5-12 for the interface.
  • Page 85 H3526 MDVR User Manual Click “External I/F >PTZ Settings” in web configuration interface of H3526 MDVR to check whether the PTZ channel, address and protocol are consistent with the parameters of external camera. Please adjust if not, then preview the corresponding channel to finish control.

  • Page 87: Terminology

    H3526 MDVR User Manual Terminology 3G is the abbreviation of 3rd Generation, which means the third generation of mobile communication technology. DVS is the abbreviation of Digital Video Server. As a professional network transmission device to compress and process audio and video data, it composes of the chip of...
  • Page 88 H3526 MDVR User Manual the infrared technology and radio-frequency technology that optimize the nearby wireless connection. Wireless network is similar to the wired network in application but not in transmission media. It replaces the network line with wireless technology, and can be backed up with wired network.

  • Page 89: Abbreviation

    H3526 MDVR User Manual Abbreviation Access Point Name Auto Table Machine CDMA Code Division Multiple Access DDNS Dynamic Domain Name Server DHCP Dynamic Host Configuration Protocol Domain Name System Digital Video Server Data Terminal Unit EDGE Enhanced Data Rate for GSM Evolution...
  • Page 90 H3526 MDVR User Manual WCDMA Wideband Code Division Multiple Access World Wide Web Hongdian Corporation...
