Control Commands

PT-RZ21K Series
Model No. PT-RZ21K
PT-RS20K
・ Please refer to the Operating Instructions for the serial command format, limitations, connectionand other details.
・ シリアルコマンドのフォーマット、制限事項、接続方法およびその他詳細につきましては、 各モデルの取扱説明書をご覧ください。
・ 有关串行控制命令的格式、限制事项、连接方法以及其他详情、请参阅各机型的使用说明书。
(2017-12)

Advertisement

loading
Need help?

Need help?

Do you have a question about the PT-RZ21K and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic PT-RZ21K

Summary of Contents for Panasonic PT-RZ21K

  • Page 1: Control Commands

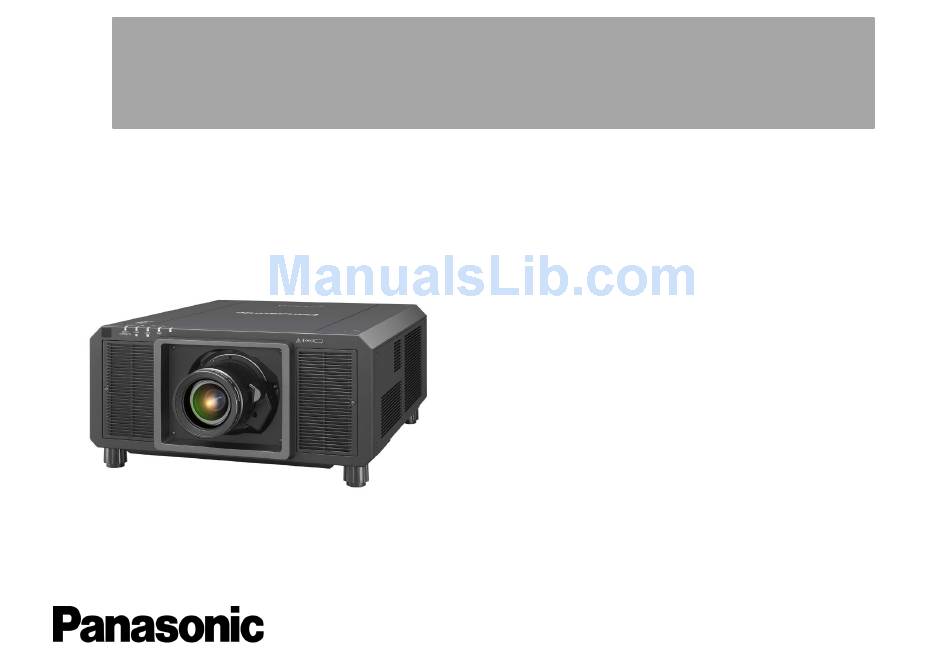

    Control Commands PT-RZ21K Series Model No. PT-RZ21K PT-RS20K ・ Please refer to the Operating Instructions for the serial command format, limitations, connectionand other details. ・ シリアルコマンドのフォーマット、制限事項、接続方法およびその他詳細につきましては、 各モデルの取扱説明書をご覧ください。 ・ 有关串行控制命令的格式、限制事项、连接方法以及其他详情、请参阅各机型的使用说明书。 (2017-12)
  • Page 2 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC POWER ✔ ✔ OFF (STANDBY) ✔ ✔ INPUT SELECT COMPUTER1 IIS:RG1 ✔ ✔ COMPUTER2 IIS:RG2 ✔ ✔ VIDEO IIS:VID ✔ ✔ IIS:SVD ✔...
  • Page 3 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC LENS SHIFT-HORIZONTAL VXX:LNSI2=+00000 SLOW+ ✔ ✔ SLOW- VXX:LNSI2=+00001 ✔ ✔ NORMAL+ ✔ ✔ VXX:LNSI2=+00100 NORMAL- VXX:LNSI2=+00101 ✔ ✔ FAST+ ✔ ✔ VXX:LNSI2=+00200 FAST- ✔...
  • Page 4 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC VBR:063 ✔ ✔ COLOR VCO:001 ✔ ✔ VCO:063 ✔ ✔ TINT VTN:001 ✔ ✔ VTN:063 ✔ ✔ SHARPNESS VSR:000 ✔ ✔ VSR:015 ✔...
  • Page 5 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC VXX:DLVI0=+00003 DLVI0=+00003 ON(3) ✔ ✔ VXX:DLVI0=+00004 DLVI0=+00004 ✔ ✔ ✔ ✔ VXX:DLVI0=+00005 DLVI0=+00005 VXX:DLVI0=+00006 DLVI0=+00006 ✔ ✔ NOISE REDUCTION VNS:0 ✔ ✔...
  • Page 6 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC HDMI/DIGITAL LINK/SLOT-HDMI ORF:1 YPbPr ✔ ✔ ORF:2 AUTO ✔ ✔ GEOMETRY VXX:GMMI0=+00000 QVX:GMMI0 GMMI0=+00000 ✔ ✔ KEYSTONE VXX:GMMI0=+00001 GMMI0=+00001 ✔ ✔ CURVED ✔...
  • Page 7 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC CORRECTION-LOWER RIGHT(H) VXX:GMFI9=+00000 GMFI9=+00000 max. GEOMETRY-CORNER VXX:GMFIA=-00127 QVX:GMFIA GMFIA=-00127 min. -127 -127 CORRECTION-LINEARITY(H) max. VXX:GMFIA=+00127 GMFIA=+00127 +127 +127 GEOMETRY- min. VXX:GMFIB=-00100 QVX:GMFIB GMFIB=-00100 ✔...
  • Page 8 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC TOTAL LINES VTL:2047 2047 2047 ✔ ✔ INPUT RESOLUTION- VDL:0150 0150 ✔ ✔ DISPLAY LINES 2037 VDL:2037 2037 ✔ ✔ CLAMP POSITION VLT:001 ✔...
  • Page 9 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC EDGE BLENDING-BLACK BORDER VJR:0000 0000 min. WIDTH-RIGHT VJR:3712 3712 max. 1919 1919 EDGE BLENDING-BLACK BORDER min. VXX:EBBI4=-02272 QVX:EBBI4 EBBI4=-02272 -1199 -1199 WIDTH-UPPER KEYSTONE AREA max.
  • Page 10 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC OLG:POR Portuguse ✔ ✔ 3D SYSTEM SETTING VXX:DSYI1=+00000 QVX:DSYI1 DSYI1=+00000 SINGLE ✔ ✔ DUAL(LEFT) ✔ ✔ VXX:DSYI1=+00001 DSYI1=+00001 DUAL(RIGHT) ✔ ✔ VXX:DSYI1=+00002 DSYI1=+00002 3D FILTER...
  • Page 11 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC 3D PICTURE BALANCE-WHITE VXX:DBAI8=-00008 QVX:DBAI8 DBDI8=-00008 ✔ ✔ BALANCE LOW BLUE VXX:DBAI8=+00008 DBAI8=+00008 ✔ ✔ 3D PICTURE BALANCE-COLOR VXX:DBAI9=+00080 QVX:DBAI9 DBDI9=+00080 ✔...
  • Page 12 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC COLOR MATCHING-MEASURED VXX:CMMS1=00000,0001,0001 QVX:CMMS1 CMMS1=00000,0001,0001 0,1,1 (Y,x,y) ✔ ✔ MODE-MEASURED DATA RED VXX:CMMS1=65535,0999,0999 CMMS1=65535,0999,0999 65535,999,999(Y,x,y) ✔ ✔ COLOR MATCHING-MEASURED 0,1,1 (Y,x,y) VXX:CMMS2=00000,0001,0001 QVX:CMMS2 CMMS2=00000,0001,0001...
  • Page 13 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC VXX:EDMI7=+00001 EDMI7=+00001 SCREEB FIT ✔ ✔ VXX:EDMI7=+00010 EDMI7=+00010 USER ✔ ✔ RGB IN-RGB2 SYNC SLICE LEVEL VXX:STRI1=+00000 QVX:STRI1 STRI1=+00000 ✔ ✔ HIGH VXX:STRI1=+00001 STRI1=+00001...
  • Page 14 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC VXX:EDVI2=+04800 EDVI2=+04800 48Hz ✔ ✔ 30Hz VXX:EDVI2=+03000 EDVI2=+03000 ✔ ✔ 25Hz ✔ ✔ VXX:EDVI2=+02500 EDVI2=+02500 24Hz VXX:EDVI2=+02400 EDVI2=+02400 ✔ ✔ HDMI IN-SIGNAL LEVEL 0-1023 VXX:HSLI0=+00000 QVX:HSLI0...
  • Page 15 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC VXX:EDRS4=1920:1200:p EDRS4=1920:1200:p 1920x1200p ✔ ✔ DIGITAL LINK-EDID VERTICAL VXX:EDVI4=+06000 QVX:EDVI4 EDVI4=+06000 60Hz ✔ ✔ SCAN FREQUENCY 50Hz ✔ ✔ VXX:EDVI4=+05000 EDVI4=+05000 48Hz ✔...
  • Page 16 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC SDI IN-SIGNAL LEVEL (SDI2) VXX:SSLI2=+00000 QVX:SSLI2 SSLI2=+00000 64-940 ✔ ✔ VXX:SSLI2=+00001 SSLI2=+00001 4-1019 ✔ ✔ SDI IN-SIGNAL LEVEL (DUAL LINK 64-940 VXX:SSLI3=+00000 QVX:SSLI3 SSLI3=+00000...
  • Page 17 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC OSD POSITION ODP:1 UPPER LEFT ✔ ✔ CETRE LEFT ODP:2 ✔ ✔ LOWER LEFT ✔ ✔ ODP:3 TOP CENTER ODP:4 ✔ ✔...
  • Page 18 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC VXX:SEFS1=1.0 SEFS1=1.0 1.0s ✔ ✔ 1.5s VXX:SEFS1=1.5 SEFS1=1.5 ✔ ✔ 2.0s ✔ ✔ VXX:SEFS1=2.0 SEFS1=2.0 2.5s VXX:SEFS1=2.5 SEFS1=2.5 ✔ ✔ 3.0s ✔...
  • Page 19 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC ID ALL RVS:0 ✔ ✔ RVS:1 ✔ ✔ PROJECTION METHOD FRONT/DESK OIL:0 ✔ ✔ REAR/DESK INSTALLATION OIL:1 ✔ ✔ FRONT/CEILING ✔ ✔...
  • Page 20 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC VXX:SPGI*=+00006 SPGI*=+00006 PROGRAM6 ✔ ✔ VXX:SPGI*=+00007 SPGI*=+00007 PROGRAM7 ✔ ✔ VXX:SPGI0=+0000* QVX:SPGI0 SPGI0=+0000* ✔ ✔ VXX:SPGI1=+0000* QVX:SPGI1 SPGI1=+0000* ✔ ✔ ✔ ✔...
  • Page 21 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC VXX:SISS1=LSU SISS1=LSU LAST USED ✔ ✔ NO SIGNAL SHUT-OFF OAF:00 DISABLE ✔ ✔ 10min ✔ ✔ OAF:10 20min ✔ ✔ OAF:20 30min ✔...
  • Page 22 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC LENS MEMORY3 NAME CHANGE LENSMEMORY3 QVX:NCGS7 LENSMEMORY3 LENSMEMORY3 VXX:NCGS7= NCGS7= ✔ ✔ LENSMEMORY4 LENSMEMORY4 LENS MEMORY4 NAME CHANGE LENSMEMORY4 VXX:NCGS9= QVX:NCGS9 NCGS9= ✔...
  • Page 23 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC OPY:2 LAST MEMORY ✔ ✔ MODEL NAME MODELNAME MODEL NAME ✔ ✔ SW0101234 SERIAL NUMBER SW0101234 ✔ ✔ PROJECTOR RUNTIME 7864320H QVX:RTMS1 RTMS1=7864320 ✔...
  • Page 24 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC ON.V010.H010.HV100 ✔ ✔ VERTICAL SIZE 10-100 **.V010.H***.HV*** ✔ ✔ HORIZONTAL SIZE 10-100 **.V***.H010.HV*** ✔ ✔ **.V***.H***.HV100 H/V SIZE 10-100 ✔ ✔ P IN P-MAIN WINDOW-POSITION V:-364 +364 V-364.H-651...
  • Page 25 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC OTS:74 Focus Magenta ✔ ✔ Focus Yellow OTS:75 ✔ ✔ Focus ✔ ✔ OTS:78 3D-1 OTS:80 ✔ ✔ 3D-2 ✔ ✔ OTS:81 3D-3 ✔...
  • Page 26 CONTROL COMMANDS 2017/12/21 CONTROL QUERY RZ21K SERIES RZ21K RS20K CATEGORY FUNCTION Parameter/Name Sub-Parameter COMMANDS COMMANDS CALL BACK SRZ21KC SRS20KC DIGITAL LINK STATUS-SIGNAL QVX:DKSI4 DKSI4=-00255 -255 ✔ ✔ QUALITY (MAX) DKSI4=+00000 ✔ ✔ DIGITAL LINK INPUT CH LIST QVX:DL1S1 DL1S1=HD1:HDMI1,****:*** ✔ ✔...
