N4
Tabletop Hub

INSTALLATION GUIDE

Model: N4-1-TT-BK - Ketra N4 Tabletop Hub

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ketra N4

  • Page 1: Installation Guide

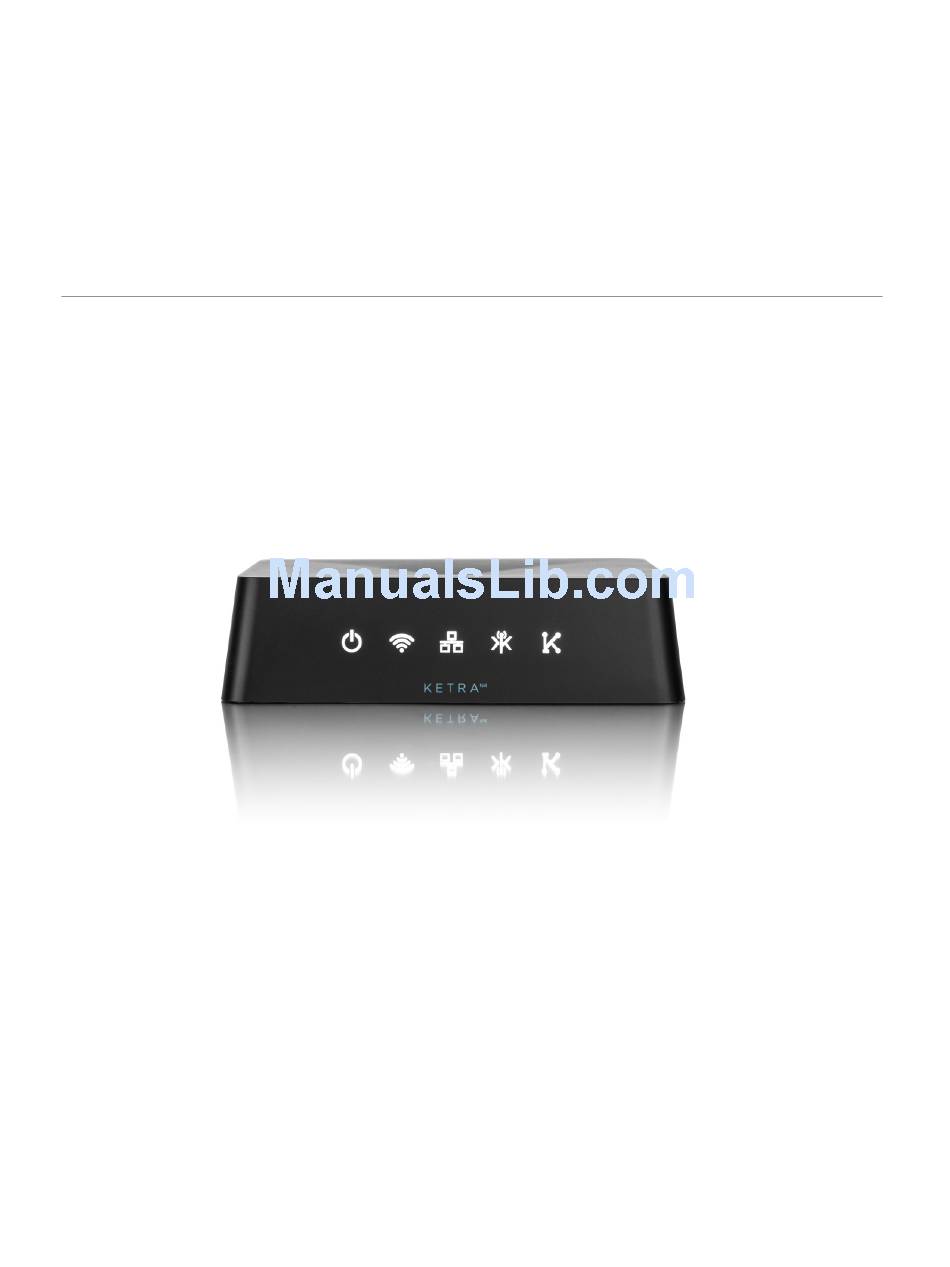

    Tabletop Hub INSTALLATION GUIDE Model: N4-1-TT-BK - Ketra N4 Tabletop Hub...
  • Page 2 Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. PAGE 2 770-000027-01 r15 N4 INSTALLATION GUIDE...
  • Page 3: Table Of Contents

    TA B LE O F CO NTE NT S Product Overview............................... page 4 Included Components & Specs........................page 6 Dimension Drawings............................page 7 Wiring Diagrams..............................page 8 Pre-Installation..............................page 9 Installation................................page 10 Additional Tasks..............................page 14 Warranty................................page 15 PAGE 3 770-000027-01 r15 N4 INSTALLATION GUIDE...
  • Page 4: Product Overview

    DESCRIPTION DATE With multiple N4s, a user can integrate KNets, allowing for seamless installations no matter how large. Using an Internet connection, the Hub can connect to Ketra’s cloud servers to enable backup and remote maintenance functions. Ethernet KetraNet Link Power 1.36”, 35mm...
  • Page 5 • White at all other times while N4 is on Wi-Fi • For future use • Red briefly at connection to LAN (while N4 waits for an IP address) Ethernet • White at all other times while network connection active •...
  • Page 6: Included Components & Specs

    INCLUDED COMPONENTS / SPECS ( 1) N4 TAB LE TO P H U B ( 1) I EC C 8 P OWER CO R D S PECI FI C ATI O N S ENVIRONMENTAL ENCLOSURE + CONNECTIONS Operating Temperature -20˚ to 40˚C...
  • Page 7: Dimension Drawings

    DIMENSION DRAWINGS 1.3”, 35.7mm 3.9”, 98mm Fig. 3 2.91”, 74mm 5”, 130.0mm KEYHOLES DESIGNED FOR NO.6 ENGLISH HARDWARE 3.9”, 2.6”, 66mm 98.0mm Fig. 4 PAGE 7 770-000027-01 r15 N4 INSTALLATION GUIDE PROPRIETARY AND CONFIDENTIAL RYAN CONROY...
  • Page 8: Wiring Diagrams

    WIRING DIAGRAMS (BY OTHERS) KETRA POWER CORD E5E CAT5E, 4 PAIR, UNSHIELDED KETRANET MESH WIRELESS NETWORK Example Installation Layout KNet: N4 + 49 Ketra Wireless Devices 3815 S. CA [ESE] [ESE] [ESE] [ESE] �-------------< ( I I ) !-----------� MODEM/ROUTER �-------------<...
  • Page 9: Pre-Installation

    The N4 can either be placed on a flat surface or else mounted (horizontally or vertically). The N4 is UL Damp Location-listed. The N4 has a suggested clearance of 4 inches to ensure visibility of indicator lights and access to all ports. (See fig. 5.) 4”...
  • Page 10: Installation

    Use the distance measurements in the image below to determine where to place the screws. 2.91”, 74mm KEYHOLES DESIGNED FOR NO.6 ENGLISH HARDWARE 2.6”, 66mm Fig. 6 PROPRIETARY AND CONFIDENTIAL 12/12/2014 RYAN CONROY DEVELOPMENT PAGE 10 770-000027-01 r15 N4 INSTALLATION GUIDE...
  • Page 11 STEP 2 APPLY POWER TO THE HUB Connect the N4 to power at the IEC C8 power connector. Use the provided IEC C8 power cord. (See fig. 7.) IEC C8 Power IEC C8 Power Cord Connection Fig. 7 Note: Once power is connected, the N4’s power indicator light will come on. It will be red while the N4 boots up;...
  • Page 12 CONNECT THE HUB TO THE LAN (LOCAL AREA NETWORK) There are two methods of doing this, shown below. Choose the one that best fits the needs of the installation. Once a connection is detected, the N4’s Ethernet indicator, , will come on white.
  • Page 13 • Use a CAT5 or equivalent Ethernet cable • Cable can be no more than 100 m (328 ft) Warning: If any N4 in the chain is powered off, all N4s further down will be unable to connect to the LAN. PAGE 13 770-000027-01 r15...
  • Page 14: Additional Tasks

    ADDITIONAL TASKS CONTROLLING WITH DESIGN STUDIO: For simple instructions on establishing an N4 installation in Design Studio, refer to the N4 edition of our Design Studio Quick Start Guide. For more advanced instructions on establishing an N4 installation in Design Studio, refer to the following portions of the Design Studio User Manual: •...
  • Page 15: Warranty

    WARRANTY & TECH SUPPORT Limited warranty terms can be found at: www.ketra.com/warranty For questions and technical support please contact: (512) 872-4349 support@ketra.com PAGE 15 770-000027-01 r15 N4 INSTALLATION GUIDE...
  • Page 16 6321 E. Stassney Ln. Suite 400 ketra.com Austin, TX 78744 (512) 347-1100...
