Ketra N4-1-TT-BK Installation Manual

Table top hub

Advertisement

N4
TA B L E TO P H U B

Installation Guide

Model
N4-1-TT-BK - Ketra N4 Table Top Hub

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N4-1-TT-BK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ketra N4-1-TT-BK

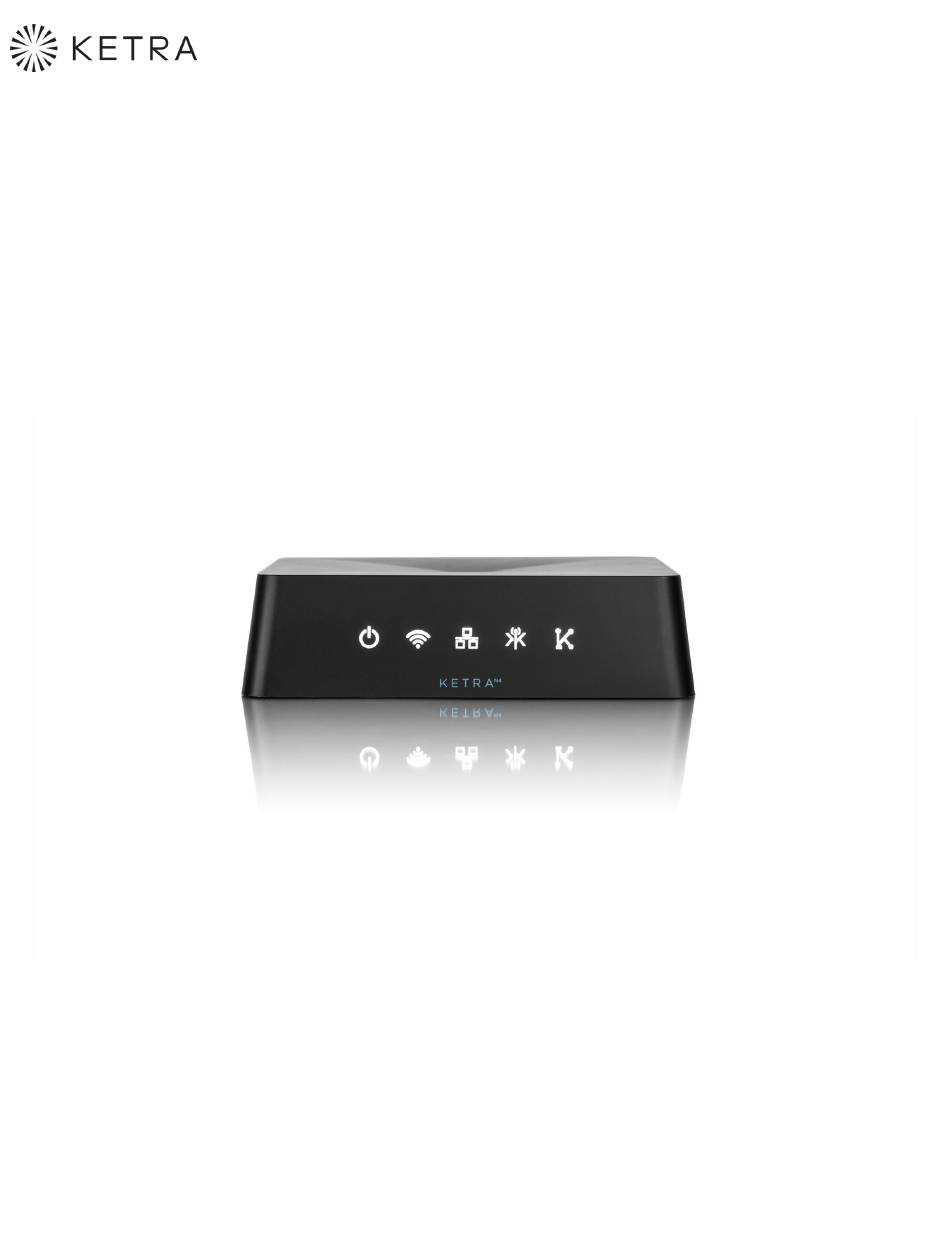

  • Page 1: Installation Guide

    TA B L E TO P H U B Installation Guide Model N4-1-TT-BK - Ketra N4 Table Top Hub...
  • Page 2 Operation is subject to the following two conditions: • This device may not cause interference. • This device must accept any interference, including interference that may cause undesired operation of the device. 770-000027-01 r18 2 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 3: Table Of Contents

    Apply Power to the Hub Connect the Hub to the LAN (Local Area Network) Additional Tasks Controlling with Design Studio Controlling with the Ketra Mobile App Warranty & Tech Support 770-000027-01 r18 3 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 4: Product Overview

    Design Studio, mobile app, and API commands. With multiple N4s, a user can integrate KNets, allowing for seamless installations no matter how large. Using an Internet connection, the Hub can connect to Ketra’s cloud servers to enable backup and remote maintenance functions.
  • Page 5: Explanation Of Indicator Lights

    Blinking white when a message is sent or received over KetraNet Link (wired communication with other Ketra devices) • Red when no Internet connection is detected • Dark at all other times 770-000027-01 r18 5 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 6: Included Components/Specs

    1 - Micro-B USB console port, USB Port Weight 15 oz (0.43 kg) for firmware updates Housing Material Polymer Power Voltage 120 V Power Consumption Current 0.041 A at 120 V 770-000027-01 r18 6 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 7: Dimension Drawings

    6.1 in, 154 mm fig. 3 2.91 in, 74 mm Keyholes designed 5 in, 127 mm for No. 6 English Hardware 2.6 in, 3.9 in, 66 mm 98.0 mm fig. 4 770-000027-01 r18 7 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 8: Wiring Diagrams

    KetraNet Mesh wireless network Receptacle (by others) CAT5E, 4 pair, unshielded KetraNet Mesh wireless network Ketra N4 Example Installation Layout KNet: N4 + 49 Ketra Wireless Devices (BY OTHERS) NETWORK TO NETWORK SWITCH SWITCH / MODEM, 6231 E. STASSNEY LANE...
  • Page 9: Pre-Installation

    IPv4 address. (For the vast majority of modems and routers, this is the default.) All N4s that will be part of an installation together must be on the same LAN (Local Area Network) subnet. 770-000027-01 r18 9 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 10: Installation

    Use the distance measurements in the image below to determine where to place the screws. 2.91 in, 74 mm Keyholes designed for No. 6 English Hardware 2.6 in, 66 mm fig. 6 770-000027-01 r18 10 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 11: Apply Power To The Hub

    7 Note: Once power is connected, the N4’s power indicator light will come on. It will be red while the N4 boots up; afterward, it will turn white. 770-000027-01 r18 11 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 12: Connect The Hub To The Lan (Local Area Network)

    Use either RJ45 port CAT5 or equivalent Ethernet cable Modem/Router • Use a CAT5 or equivalent Ethernet cable • Cable can be no more than 328 ft (100 m) 770-000027-01 r18 12 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 13: Additional Tasks

    Controlling with the Ketra Mobile App For instructions on using an N4 with the Ketra app, refer to our Mobile App Manual. If you are unable to discover your N4s in the Ketra app, confirm one of the following is true: Option 1:...
  • Page 14: Warranty & Tech Support

    For questions and technical support please contact: (844) 588-6445 ketrasupport@lutron.com Ketra and KetraNET are trademarks or registered trademarks of Lutron Ketra LLC, in the US and/ or other countries. 770-000027-01 r18 14 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 15 770-000027-01 r18 15 | N4 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
  • Page 16 6231 E. Stassney Ln. ketra.com Bldg. 13, Suite 400 512.872.4349 Austin, TX 78744 770-000027-02 r16...

This manual is also suitable for:

N4 series
