Ketra N4 Series Installation Manual
Conduit-mounted hub
Hide thumbs
Also See for N4 Series:
- Installation manual (16 pages) ,
- Installation manual (14 pages) ,
- Installation manual (15 pages)
Related Manuals for Ketra N4 Series
Summary of Contents for Ketra N4 Series

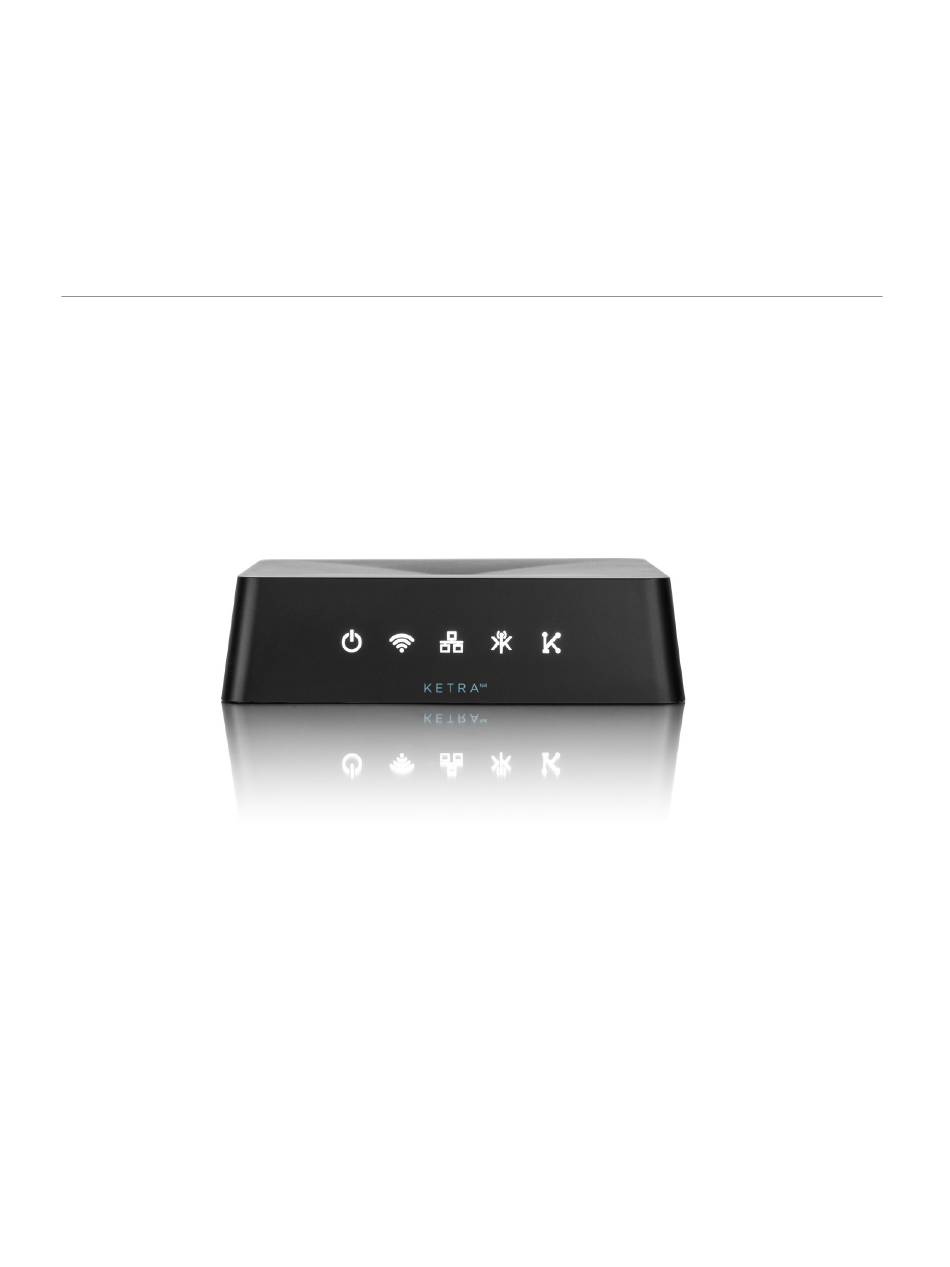

- Page 1 Conduit-Mounted Hub INSTALLATION GUIDE Model: N4-1-CND-BK - Ketra N4 Conduit-Mounted Hub...
- Page 2 WARNING Risk of electric shock. Use in dry locations only. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Overview Included Components/Specs Dimension Drawings Wiring Diagrams Pre-Installation Installation Additional Tasks Warranty & Tech Support PAGE 3 770-000027-02 r15 N4 INSTALLATION GUIDE... -
Page 4: Product Overview
PRODUCT OVERVIEW Ketra’s N4 Hub forms a bridge between Ketra products and Ketra digital interfaces such as Design Studio, mobile app, and API commands. With multiple N4s, a user can integrate KNets, allowing for seamless installations no matter how large. Using an Internet connection, the Hub can connect to Ketra’s cloud servers to enable backup and remote maintenance functions. - Page 5 Solid red when the hub is configured for remote access, but the hub cannot connect to the remote access server • Blinking white when a message is sent or received over KetraNet Link (wired communication with other Ketra devices) KetraNet Link •...
-
Page 6: Included Components/Specs
INCLUDED COMPONENTS/SPECS (1) N4 CONDUIT-MOUNTED HUB (1) THREADED RING (3) WIRE NUTS S PEC IFI C AT I O N S Environmental Enclosure + Connections Operating Temperature -20˚ to 40˚C Connections (Class 1) Storage Temperature -20˚ to 80˚C AC Power In 6 in. -
Page 7: Dimension Drawings
DIMENSION DRAWINGS Fig. 3 Fig. 4 PAGE 7 770-000027-02 r15 N4 INSTALLATION GUIDE... -
Page 8: Wiring Diagrams
HOT/LINE KETRA 120-277V NEUTRAL 60 Hz GROUND KETRANET MESH WIRELESS NETWORK Example Installation Layout KNet: N4 + 49 Ketra Wireless Devices (BY OTHERS) NETWORK TO NETWORK SWITCH SWITCH / MODEM, 6231 E. STASSNE INTERNET BUILDING 13, SU AUSTIN, TX 7 P: 512.872.4... -
Page 9: Pre-Installation
PRE-INSTALLATION N4 Placement For ideal KetraNet Mesh wireless performance, position the N4 according to these guidelines: • Keep within range: Place the N4 within 50 feet of at least one of the devices it will control. Ideally, place as close as possible to all devices it will control. •... -
Page 10: Installation
INSTALLATION STEP 1 Apply Power to the Hub Remove a half-inch knockout from the junction box. Mount the N4 to the junction box. Fit the N4’s connector into the opening created in step 1. Secure the N4 by threading the provided threaded ring onto the mount. Notes: –... - Page 11 INSTALLATION STEP 2 Connect the Hub to the LAN (Local Area Network) Once a connection is detected, the N4’s Ethernet indicator, , will come on white. Direct connection to modem or router Use either RJ45 port CAT5 or equivalent Ethernet cable Modem / Router Fig.
-
Page 12: Additional Tasks
Controlling with the Ketra Mobile App For instructions on using an N4 with the Ketra app, refer to our Mobile App Manual. If you are unable to discover your N4s in the Ketra app, confirm one of the following is true: OPTION 1: –... -
Page 13: Warranty & Tech Support
WARRANTY & TECH SUPPORT Limited warranty terms can be found at: www.ketra.com/warranty For questions and technical support please contact: (844) 588-6445 ketrasupport@lutron.com PAGE 13 770-000027-02 r15 N4 INSTALLATION GUIDE... - Page 14 6321 E. Stassney Ln. Suite 400 ketra.com Austin, TX 78744 (512) 347-1100...
