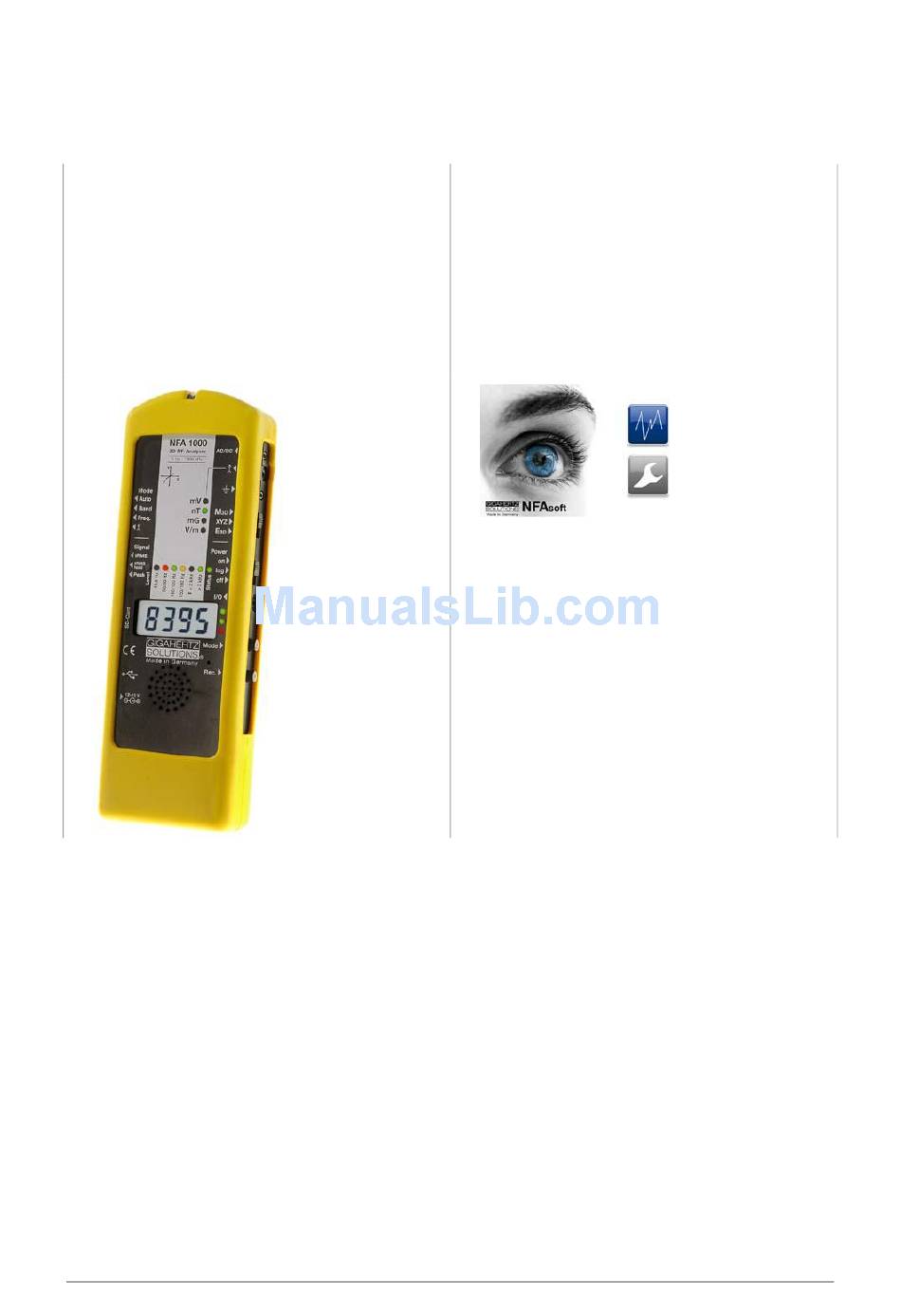

Page 1: Operating Manual
NFA 1000 NFAsoft 3D Low Frequency Analysis and Configu- ration Software Analyzer with Data Logger Operating Manual (Version 6.0) - 1 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011... - Page 2 In addition to this manual you can watch the tutorial videos on our website con- cerning the use of this meter. - 2 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH...
-
Page 3: Table Of Contents
Contents Quick Start Guide .................... 4 NFA 1000 Front Cover ..................5 LEDs / Display / Audio Signals ................ 6 Switches / Push-Buttons / Connectors ............9 How to Measure and Data-Log ..............15 Power Supply ....................18 „NFAsoft“......................20 Firmware-Update....................27 What if… (FAQ) ....................28 This manual is based on the firmware version 47 and NFAsoft version 100. -
Page 4: Quick Start Guide
Should the meter not do what you expect, please turn to the chapter on frequently asked questions at the end of this manual (Chapter 9)! Note: For potential-free e-field-measurements the highest accuracy will be reached when used without the yellow silicone holster. - 4 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH... -

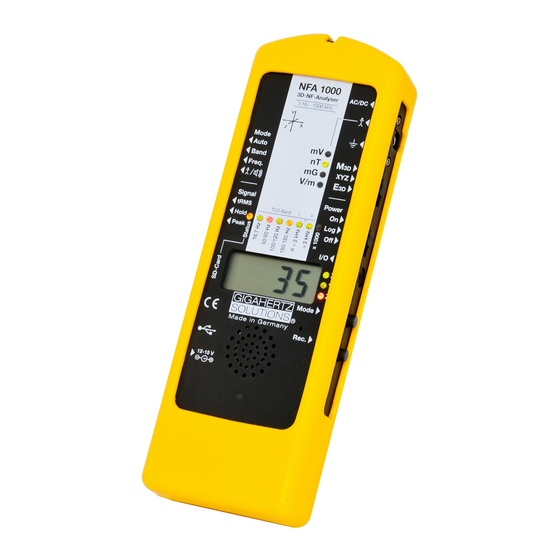

Page 5: Nfa 1000
2 NFA 1000 Front Cover NFA 1000 AC/DC 3D-NF-Analyser 5 Hz - 1000 kHz Mode Auto Band Freq. Signal Power tRMS TCO-Band Hold Peak GIGAHERTZ Mode Mad e in G ermany Rec. 12-15 V - 5 - © Gigahertz Solutions GmbH... -
Page 6: Leds / Display / Audio Signals
It will be shown upon switching on the NFA and when logging (see chapter 5.4). Due to the increased power consumption (LEDs, sound signal, etc), the remaining battery life in the operating mode “ON” is reduced by up to 30%. - 6 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH... - Page 7 The LED’s for 16.7 Hz, mains frequency and its harmon- ics up to 2 kHz have a suitable lock-in range to cover mains fluctuations. - 7 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
- Page 8 For reasons of user ergonomics frequencies below the nominal display resolution (that is < 0.1 V/m or < 1 nT) are not indicated by an LED-signal but will still be recorded down to the noise level. Hysteresis: 9/12% resp. 45/50%. - 8 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH...
-
Page 9: Switches / Push-Buttons / Connectors
“Err.” until the configuration is corrected or the setting is changed to magnetic field measurement. While measuring please maintain a minimum distance of 1 meter. If closer, your presence can influence the measurements. - 9 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011... - Page 10 For other measuring ranges just compare the position of the comma and convert accordingly. Readings below 0.1µW/m² cannot be displayed or recorded because of noise-issues. - 10 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH...
- Page 11 16.7 Hz LED will remain unlit. However, the filter only applies to the display in the “Auto”-mode and to loggings in the “All3D”- channel. The aim is to tranquilize the display. Nevertheless, possible frequency components up to 16.7 Hz can be displayed by using “Band” and “Freq.”. - 11 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
-
Page 12: Sd Memory Card
Tolerances are much higher than using the tRMS analysis. It cannot be used with the floating potential E-field measurement for the time being. - 12 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH... - Page 13 In order to make use of this speed advantage, your SD card reader needs to be specified „SDHC“ which is standard for units built 2008 or later. For older units inexpensive adaptors are available. - 13 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
- Page 14 NFAsoft to the corresponding recording times in the graph- 4.10 I/O - Microphone / Headset Allows the connection of a mono headset for dictating or listening to the audio analysis. - 14 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH...
-
Page 15: How To Measure And Data-Log
Press the “Mode”-button until 9Pt is indicated on the LCD and then let go. A beep will indicate the activation of the 9 point measurement. - 15 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011... - Page 16 PM4s then try not to move the instrument after you have “hit“ the measurement point, if you use a holder then withdraw quickly to a minimum distance of 1.5 m and keep still there in order to avoid movement-induced "pseudo-fields”. - 16 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH...
- Page 17 SD-card to „lock“ or „write protect“ and reinsert it. Note: The data will still be recorded! IMPORTANT: Don't forget to unlock the SD memory card afterwards! - 17 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
-
Page 18: Power Supply
This procedure will also be logged, and should be marked with an audio note. This will be accessible when evaluating the logged data on the PC. Now potential disturbances can be noted on each axis and corrections be made, if necessary. - 18 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH... - Page 19 DO NOT TRY TO CHARGE A 9 VOLT BATTERY, whether rechargeable or alkaline, INSIDE THE METER! - 19 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
-
Page 20: Nfasoft
The following file types are available (the consecutive numbering is independent from the file type) LOG00001.TXT log file (long time recording) LOG00002.9PM 9-Point-Measurement (sleeping area) LOG00003.6PM 6-Point-Measurement (workplace) REC00004.WAV audio file (recorded note). - 20 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH... - Page 21 One can also use the “right” and “left” arrows of the keyboard. Zooming of the time on the x-axis can also be achieved via the View Menu. - 21 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
- Page 22 “All3D”. The 95th percentile is calculated heuristically. If the possible deviation exceeds 10%, it will be not- ed in parenthesis after the figure in absolute terms. - 22 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH...
- Page 23 „All“ – zooms out the x-axis and displays the complete data set on the data plot. The keyboard ”A” keys can alternatively be used. Use the arrow-keys to take over the functions of the mouse. - 23 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
- Page 24 HF-Analyser settings during the recording period. nT <> mG This function allows to subsequently convert a chosen channel’s data from milli- Gauss to nanoTesla and vice versa. - 24 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH...
- Page 25 “Edit” in the menu offers you the possibility to copy the illustrations into your report, also individually. The evaluation of the 6-Point- Measurement is done analogous to the 9-Point-Measurement. - 25 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
- Page 26 “All3D”. (For more information on this matter see chapter 9) - 26 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH...
-
Page 27: Firmware-Update
Please differentiate: With „NFAsoft“ one can configure the firmware, with these user settings being stored in the file „CONFIG.NFA“. This has nothing to do with the firmware-update described above. - 27 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011... -
Page 28: What If
The meter turns off after quarter of an hour NFAsoft allows you to change the interval for the auto-power- off feature. (Auto-power-off is deactivated while recording!) - 28 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH... - Page 29 Therefore you cannot use NFAsoft to check the con- figuration of the NFA, but only to instal new configurations. You can save frequently used configurations as presets to a dropdown menu in NFAsoft. - 29 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
- Page 30 These pseudo-readings can, if need be, be deleted from the graph by opening the 9PM-file with a text editor and replacing the odd value by “0.0”. - 30 - 350-027_NFA1000-6-0_EN as of August 2011 © Gigahertz Solutions GmbH...
- Page 31 NFAsoft. The audio files (.wav) will only be displayed in the diagram when they are stored in the same folder as the LOG-file and they are not renamed. - 31 - © Gigahertz Solutions GmbH 350-027_NFA1000-6-0_EN as of August 2011...
