Page 1: User Manual

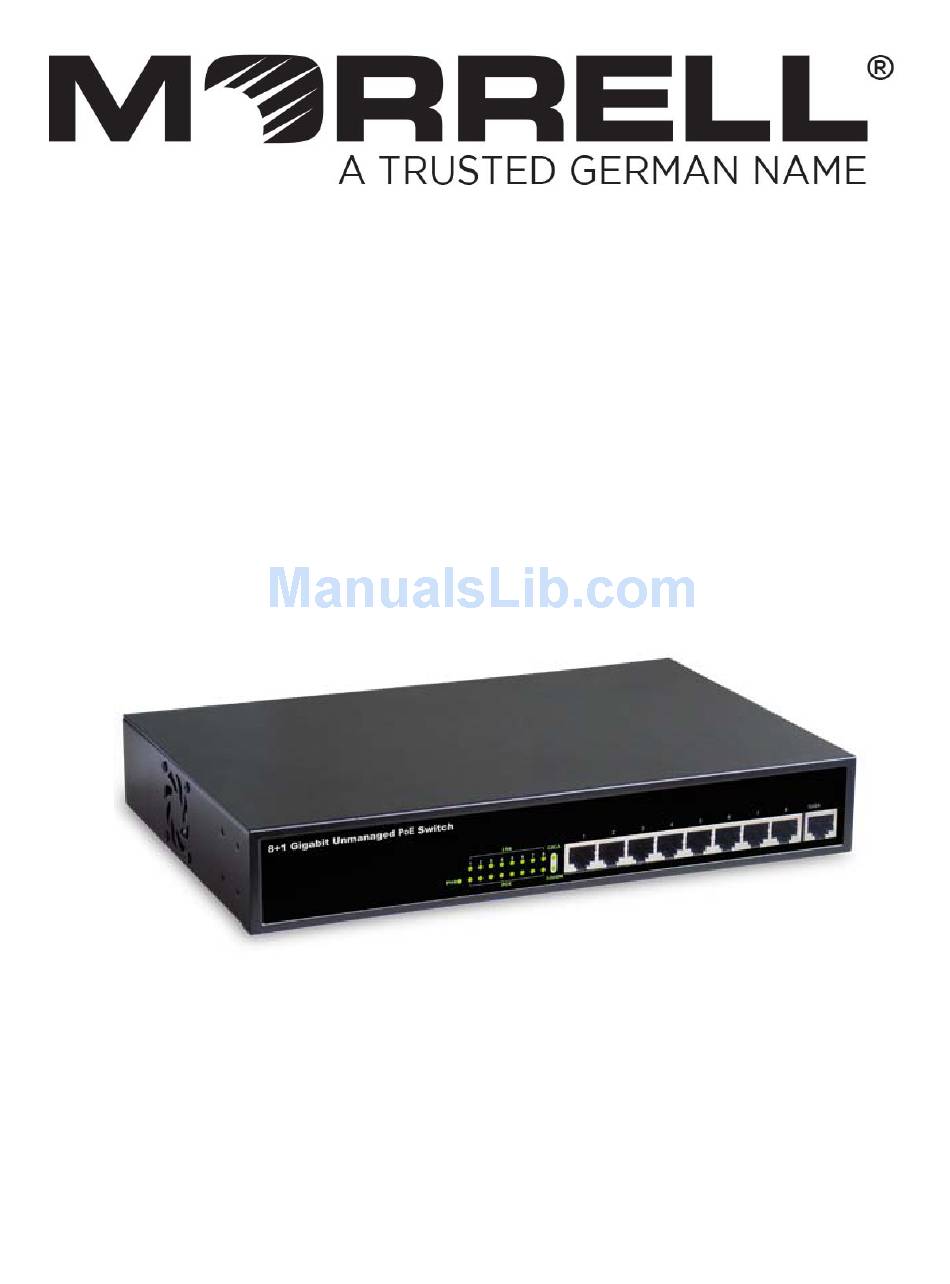

SW-UNM-8FE1GE-8POE 8-Port 10/100Mbps + 1-Port Gigabit Combo POE Unmanaged Ethernet Switch User Manual Ver.1.0.0... - Page 2 Table of Contents 1 Package Contents ........................2 2. Product Features ........................2 3. Switch Front Panel ........................3 4. Switch Rear Panel ........................4 5. Installing the Switch ........................4...
-
Page 3: Package Contents
Congratulations on your purchase of the PoE Ethernet switch, 8-port 10/100Mbps+1-port 1000Mbps PoE Switch provides the seamless network connection. The product is desktop design, all-metal chassis and elegant appearance. This product is easy to install, can rack, plug and play, no management; Dynamic LED indicator to monitor switch status and troubleshooting work. -
Page 4: Switch Front Panel
3. Switch Front Panel The front panel of switch includes 8 x 10/100Mbps ports and 1 x 10/100/1000 Mbps port and LED light. Ports 8 10/100Mbps RJ-45 Ports: designed to connect to the device with the bandwidth of 10M or 100M. 1 10/100/1000Mbps RJ-45 port: designed to connect to the device with the bandwidth of 10M, 100M or 1000M. -
Page 5: Switch Rear Panel
Blinking The connection speed is 100Mbps A device is connected to the port 100M Blinking Sending or receiving data 4. Switch Rear Panel Power The power port is where you will connect the included power adapter. 5. Installing the Switch This part describes how to install your PoE Ethernet Switch and make connections to it. - Page 6 equipment rack to mount the switch on the 11 inch rack. Step 1 Step 2 Desktop Installation To install the Switch on desktop, simply follow the next steps: Step 1: Attach the rubber feet to the recessed areas on the bottom of the Switch. Step 2: Place the Switch on desktop near an AC power source.
- Page 7 www.morrelltelecom.com sales@morrelltelecom.com morrelltelecom...
