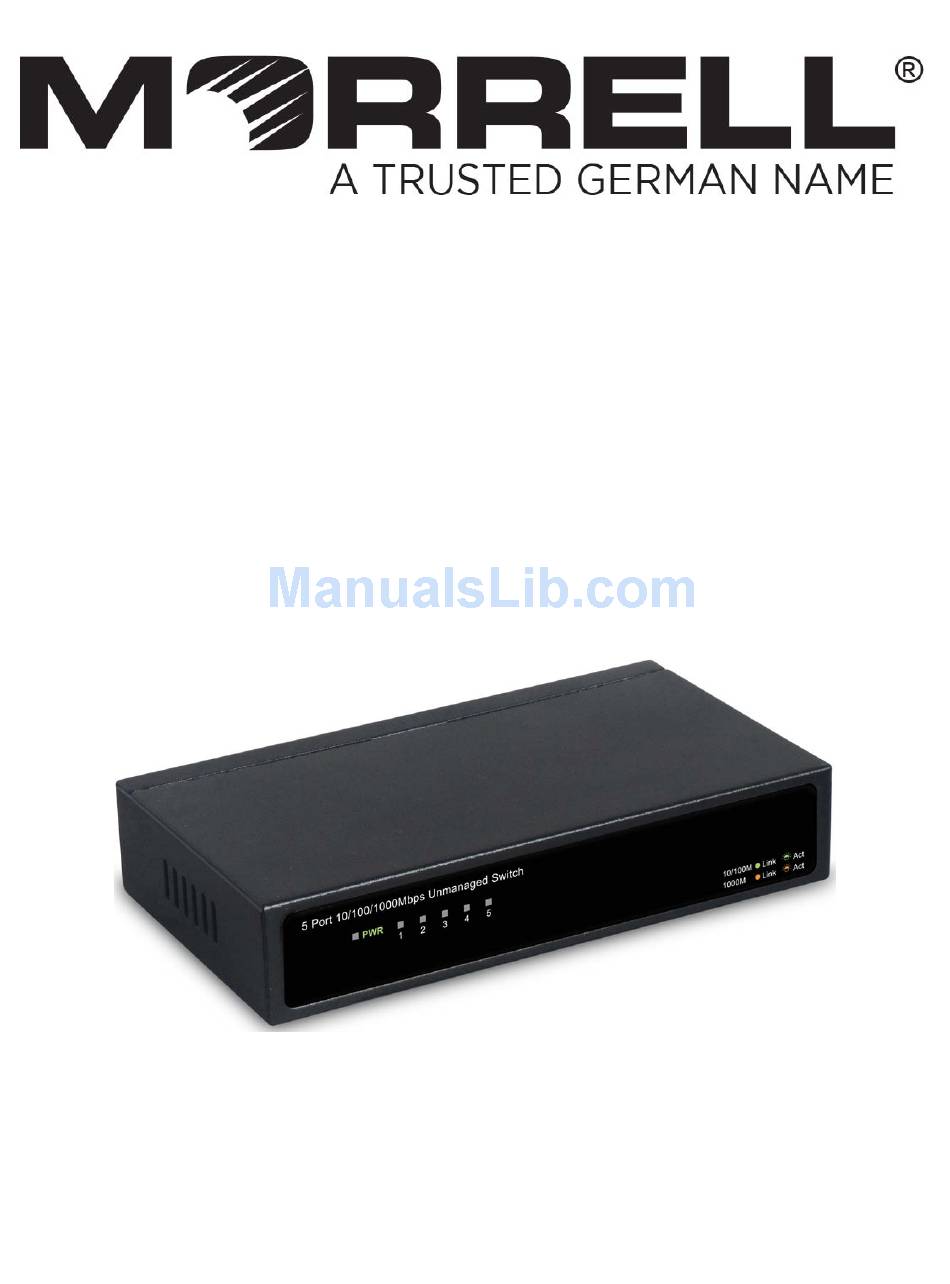

- Page 1 SW-UNM-5GE 5-Port Gigabit Unmanaged Ethernet Switch User Manual Version 1.0 | 3/29/2014...
-
Page 2: Chapter 1 Product Introduction
Chapter 1 Product Introduction Congratulations on your purchase of this 10/100/1000Mbps Ethernet Switch. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1 Product Overview The Switch is a 5-port 10/100/1000Mbps Ethernet Switch. It provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports, all ports support Auto MDI/MDIX function, it with a low-cost, easy-to-use, high performance, seamless and standard upgrade to improve your old network to a 1000Mbps network, be the same with small office and home, It will boost your... -
Page 3: Chapter 2 External Component Description
Chapter 2 External Component Description 2.1 Front Panel The front panel of the Switch consists of a series of LED indicators shown as below. Figure 1 - Front Panel The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem with the Switch, connection or attached devices. - Page 4 10/100/1000Mbps RJ-45 ports (1~5): Designed to connect to the device with a bandwidth of 10Mbps,100Mbps or 1000Mbps. Each has a corresponding 10/100/1000Mbps LED. Power Connector: Power is supplied through an external DC power adapter. Check the technical specification section for information about the DC power input voltage. - 3 -...
-
Page 5: Chapter 3 Installing And Connecting The Switch
Chapter 3 Installing and Connecting the Switch This part describes how to install your Gigabit Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 3.1 Desktop Installation To locate the Switch on a desktop, please follow these steps: Place the Switch on a flat desk. -
Page 6: Chapter 4 Technical Specifications
Chapter 4 Technical Specifications IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, Standards IEEE802.3az, IEEE802.3ab 10BASE-T: UTP category 3,4,5 cable (maximum 100m) Network Media (Cable) 100BASE-Tx: UTP category 5, 5e cable (maximum 100m) 1000BASE-T: UTP category 5e, 6 cable (maximum 100m) Number of Ports 5 x 10/100/1000Mbps Auto-Negotiation ports 10M/100M: Green Link/Act... - Page 7 www.morrelltelecom.com sales@morrelltelecom.com morrelltelecom - 6 -...
