REVISED INSTRUCTIONS-
ASSEMBLY, DISCARD THE INSTRUCTIONS PRINTED ON WHITE PAPER.

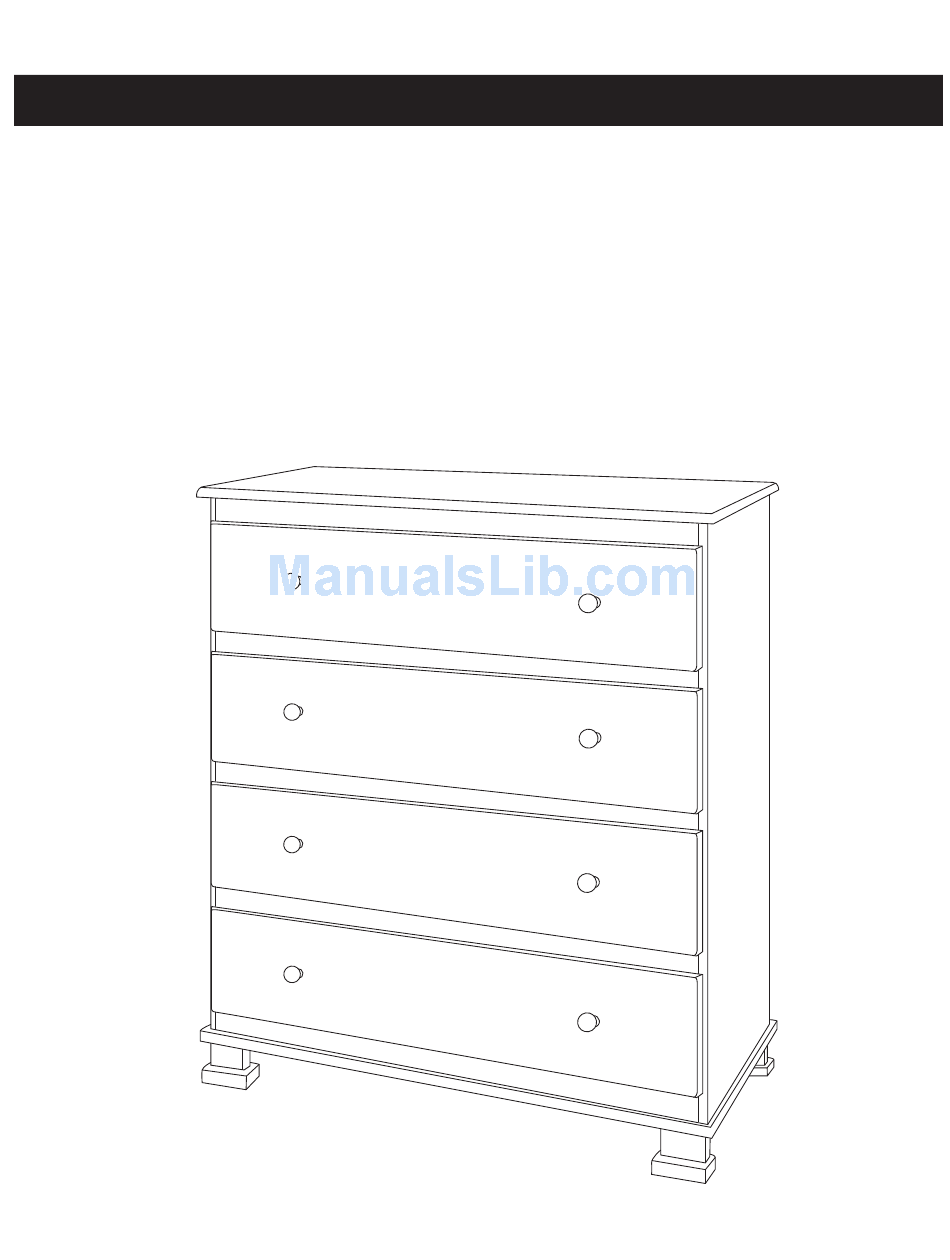

Dresser (5155) - Assembly and Operation Manual
Congratulations on purchasing an MDB Family product. This dresser will provide many years of service if you adhere
to the following guidelines for assembly, maintenance, and operation. This dresser is for residential use only.
Any institutional use is strictly prohibited.
Please be sure to follow the instructions for proper assembly. Use a Phillips head screwdriver for assembling the
dresser. Do not use power screwdrivers. All of our dressers are made from natural woods. Please understand that
natural woods have color variations which are the result of nature and are not defects in workmanship.
DO NOT SUBSTITUTE PARTS. ALL MODELS HAVE THE SAME QUANTITY OF PARTS AND HARDWARE.
YOUR MODEL MAY LOOK DIFFERENT FROM THE ONE ILLUSTRATED DUE TO STYLISTIC VARIATIONS.
revised 17APR2015
USE THESE INSTRUCTIONS FOR
page 1
Advertisement
Related Manuals for MDB Family 5155
Summary of Contents for MDB Family 5155
- Page 1 Dresser (5155) - Assembly and Operation Manual Congratulations on purchasing an MDB Family product. This dresser will provide many years of service if you adhere to the following guidelines for assembly, maintenance, and operation. This dresser is for residential use only.
- Page 2 PARTS C. Top & Bottom Cross Bar Front Painted (2) Back Unpainted (2) A. Dresser Top B. Base D. Front Cross Bar (3) H. Drawer Front (4) J. RT & LT Drawer Sides (8) K. Drawer Back (4) E. Right Panel F.
- Page 3 STEP 1. Use three Phillips head screws (H7) to fasten each of the four right panel glides (M) to the right panel (E). Then use three Phillips head screws (H7) to fasten each of the four left panel glides (N) to the left panel (F). M or N M.
- Page 4 STEP 4. Place the cabinet assembly onto the base (B) and secure it with four Phillips head screws (H4). PASO 4. B. Base A. Dresser Top STEP 5. Place the top (A) on the case assembly and secure it with four Phillips head screws (H4). page 4...
- Page 5 STEP 6. Attach the back panel (G) using the Phillips head screws (H5). G. Back Panel STEP 7. Assemble drawers All drawers are assembled in the same way. J. LT Drawer 7a.) Attach the RT & LT drawer sides (J) Side to the drawer fronts (H) using the Phillips head screws (H6).
- Page 6 Slide the drawer bottoms (L) into the Place the drawer backs on and fasten them 7b.) 7c.) grooves in the front (H) and sides (J). with four Phillips head screws (H6). L. Drawer Bottom 7d.) 7e.) Attach the left (P) and right (O) drawer Attach the knobs (H2) to the drawer fronts (H) glides using Phillips head screws (H7).
- Page 7 STEP 9. FURNITURE ANTI-TIPPING KIT INSTALLATION Serious or fatal crushing can occur when furniture tips over on children. To help prevent tip-over, follow the steps below to install this anti-tipping strap. WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: Install tipover restraint provided.
- Page 8 Long screw READ ALL INSTRUCTIONS BEFORE USING THE PRODUCT. KEEP THE INSTRUCTIONS FOR FUTURE USE. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. Finish page 8...
