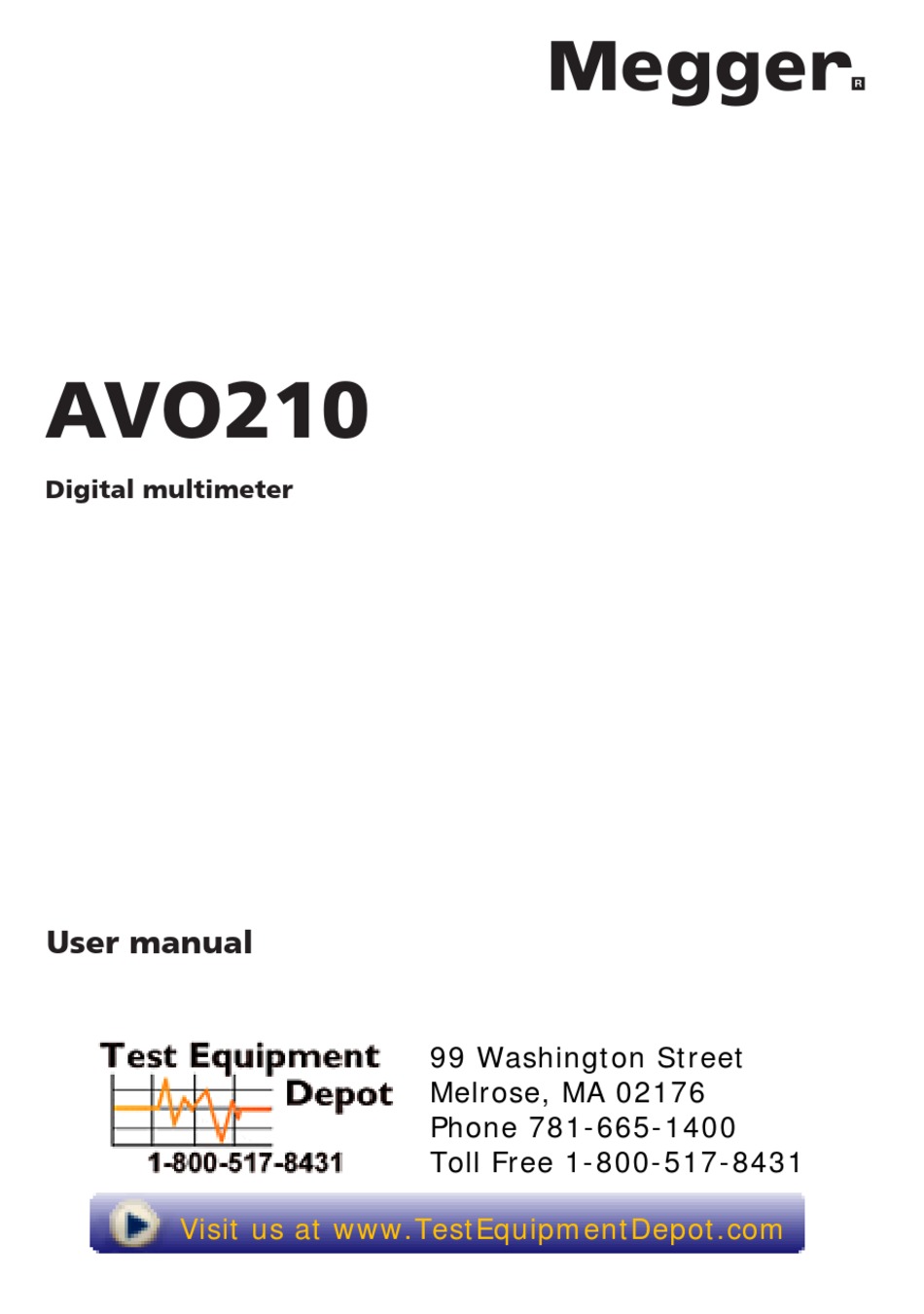

- Page 1 AVO210 Digital multimeter User manual 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
-
Page 2: Safety Information
SAFETY INFORMATION Understand and follow operating instructions carefully. WARNING Do not use test leads or the multimeter if they are damaged ■ Do not use the multimeter if the tester is not operating properly ■ To reduce risk of fire and shock do not expose this product to rain or ■... -
Page 3: Maintenance
CAUTION Disconnect the test leads from the test points before changing the position ■ of the function rotary switch. Never connect a source of voltage with the function rotary switch ■ , A, position. Do not expose Meter to extremes in temperature or high humidity. ■... - Page 4 AC / DC Voltage and Frequency Continuity and Diode...
- Page 5 Resistance and Capacitance Note – To improve the measurement accuracy of small value capacitor, record the reading with the test leads open, then subtract the residual capacitance of the meter and leads from measurement. UNKNOWN MEASUREMENT RESIDUAL MIN MAX Record...
-
Page 6: Display Hold
DC / AC Current Display Hold... - Page 7 Manual Ranging and Auto Ranging Auto Power Off (Battery Saver)
- Page 8 Disable Auto Power Off Test Equipment Depot - 800.517.8431 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
- Page 9 Non-Contact Voltage Alert (V ENSE Volt sense switch will be activated on any function or at OFF status. Test leads are not used for the Volt sense test. Press the Volt sense button. The display will blank out, a tone sounds and the red LED lights up to verify the instrument is operational.
-
Page 10: Fuse Replacement
Fuse Replacement Refer to the following diagram to replace fuse. Use only a fuse with the amperage, interrupt, voltage, and speed rating specified. ˙ Fuse rating: 10A, 500V... -
Page 11: Battery Replacement
Battery Replacement Refer to the following diagram to replace the batteries: Replace the batteries as soon as the low batteries indicator appears, to avoid false reading. Batteries 1.5V x 2... -
Page 12: General Specifications
Specifications General Specifications Display : 2000 counts. Polarity Indication : Automatic, positive implied, negative indicated. Overrange Indication : “OL” or “-OL”. Batteries Life : Alkaline 250 hours Low Batteries Indication : is displayed when the batteries voltage drops below operating voltage. Auto Power Off : Approx 10 minutes. -
Page 13: Electrical Specifications
Electrical Specifications Accuracy is ± (% reading + number of digits) at 23 °C ± 5 °C < 80% RH. DC / AC Volts Range AC Accuracy 200.0 mV * Unspecified 2.000 V * ±(1.5%+5 dgt) 50 Hz ~ 300 Hz 20.00 V ~ 200.0 V * ±(1.5%+5 dgt) 50 Hz ~ 500 Hz * 750 V AC / 1000 V DC... - Page 14 DC / AC Current Range DC Accuracy AC Accuracy Voltage Burden 2.000 A ±(1.5% + 5 dgt) ±(1.0% + 3 dgt) 2 V max 10.00 A ** 50 Hz ~ 500 Hz * Overload Protection : A input : 10 A (500 V) fast blow fuse * AC Conversion Type : Conversion type and additional specification are same as DC/ AC Voltage.
- Page 15 Diode Check and Continuity Range Resolution Accuracy 10 mV ±(1.5% + 5 dgt)* * For 0.4 V ~ 0.8 V Max.Test Current : 1.5 mA Max. Open Circuit Voltage : 2 V Overload Protection : 600 V rms. Frequency Range Sensitivity Accuracy 2000 Hz ~200.0 KHz...
-
Page 16: Weee Directive
Megger is registered in the UK as a Producer of Electrical and Electronic equipment. The registration no is; WEE/DJ2235XR. Users of Megger products in the UK may dispose of them at the end of their useful life by contacting B2B Compliance. -
Page 17: Limited Warranty
Limited Warranty This meter is warranted to the original purchaser against defects in material and workmanship for 1 year from the date of purchase. During this warranty period, manufacturer will, at its option, replace or repair the defective unit, subject to verification of the defect or malfunction.
