- Page 1 Alcatel-Lucent 4080 IP-DECT Installation Manual - July 2011 8AL90850USAAed01...
- Page 2 Alcatel-Lucent 4080 IP-DECT Installation Manual Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel- Lucent. All other trademarks are the property of their respective owners. The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.
- Page 3 Alcatel-Lucent 4080 IP-DECT Installation Manual Regulatory information European Union Declaration of Conformity This equipment is in compliance with the essential requirements of R&TTE Directive 1999/5/EC.The Declaration of Conformity may be obtained from your installer. PRODUCT DISPOSAL INFORMATION (EN) For countries in the European Union...
- Page 4 Alcatel-Lucent 4080 IP-DECT Installation Manual Regulatory information United States This device contains functions which are not operational in US territories This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 5 Alcatel-Lucent 4080 IP-DECT Installation Manual Exposure to Radio Frequency (RF) Signals: This base station is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the OET Bulletin 65 Supplement C.
- Page 6 Alcatel-Lucent 4080 IP-DECT Installation Manual 8AL90850USAAed01...
-
Page 7: Table Of Contents
INSTALLATION PROCEDURES ............... 14 UNPACKING ......................15 ADJUSTING THE ANTENNA POSITION ..............16 MOUNTING THE G.729 DAUGHTERBOARD ............20 MOUNTING THE 4080 IP-DECT AGAINST A WALL ..........23 LEDs .......................... 26 LED Status ......................26 LED Colours ...................... 27 SPECIFICATIONS ...................... 28... - Page 8 Alcatel-Lucent 4080 IP-DECT Installation Manual PREFACE This manual is applicable for the 4080 IP-DECT, DECT Transceiver. Please note that some product models or features described in this manual may not be available in all world regions.” No legal rights can be obtained from information in this manual.
- Page 9 Alcatel-Lucent 4080 IP-DECT Installation Manual 8AL90850USAAed01...
-
Page 10: 4080 Ip-Dect General

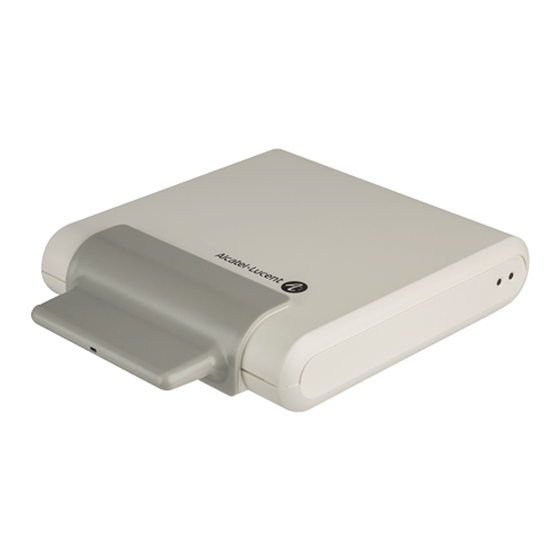

4080 IP-DECT GENERAL GENERAL This installation Manual is valid for installing a DECT transceiver (4080 IP-DECT) to a wall in horizontal or vertical position. The 4080 IP-DECT is designed for indoor use. When installing an 4080 IP-DECT outdoors, please use the dedicated Outdoor Cabinet: Note that there are two types of DECT Transceivers:: •... -
Page 11: Site Requirements
− Temperature range 4080 IP-DECT: -5° to 45° C. The AP400 should not be exposed to sunlight! The outside temperature range for the 4080 IP-DECT (all types) mounted in the Outdoor Cabinet is as follows: − Minimum outside temperature: -20° C −... -
Page 12: Daughter Board
PoE (IEEE 802.3af). There is no room for a Mains Power adaptor inside the Outdoor Cabinet. G.729 DAUGHTER BOARD The 4080 IP-DECT does support the G.729 codec, but only if the G.729 Daughter Board is installed. If the G.729 Daughter Board is not installed, the 4080 IP-DECT supports only G.711u law or G.711a law. -
Page 13: Horizontal Or Vertical Mounting
The 4080 IP-DECT can be mounted horizontally or vertically. When mounting vertically, you don’t need to change the antenna position. Figure 1. 4080 IP-DECT in vertical position. When the 4080 IP-DECT must be mounted horizontally, the antenna position must be changed. 8AL90850USAAed01... -
Page 14: Installation Procedures
− Mounting the 4080 IP-DECT against the wall. Note: When you install the 4080 IP-DECT in the outdoor cabinet, please consult the 4080 IP-Dect Outdoor Cabinetisolated Installation Manual. Note: The minimum distance between 4080 IP-DECTs (DECT Access Points) must be more than 1 meter. -
Page 15: Unpacking
Check the 4080 IP-DECT on any damages. Continue with one of the following Chapters: − When you mount the 4080 IP-DECT vertically, the antenna position will normally be OK, and when you do not need to install the G.729 Daughter Board, continue with Chapter 5 MOUNTING THE 4080 IP-DECT AGAINST A WALL. -
Page 16: Adjusting The Antenna Position
ADJUSTING THE ANTENNA POSITION Note: You only need to change the antenna position when you mount the 4080 IP- DECT horizontally! In all other cases you don’t need to change the antenna position. Figure 3. 4080 IP-DECT mounted horizontally 8AL90850USAAed01... - Page 17 Open the cabinet CAREFULLY! Make sure that you shift the cover of the antenna’s carefully from the antenna’s. Take the antenna cover from the 4080 IP-DECT cover. To put the antennas in vertical position, bend them carefully as shown in Figure 5.
- Page 18 After the antennas are put in the vertical position, close the 4080 IP-DECT cabinet again. In other words, put the 4080 IP-DECT cover back into position and secure the screws at the rear side of the cabinet. See Figure 6. Antennas locked into Cover.
- Page 19 Alcatel-Lucent 4080 IP-DECT Installation Manual Make sure that the antennas are properly locked into the locks in the 4080 IP-DECT cover. Figure 7. Detail of antenna in lock. Move the antenna cover carefully over the antennas in the vertical position and make sure that the antennas do not bend.
-
Page 20: Mounting The G.729 Daughterboard
Mind the light conductor for the LEDs. It can drop off! LED Light conductor Figure 9. Light conductor for LEDs Now you should have the 4080 IP-DECT PWB and the G.729 Daughter Board as separate items. Remove the protection foil from the sticky part on the G.729 Daughter Board. - Page 21 Alcatel-Lucent 4080 IP-DECT Installation Manual Sticky foam Figure 10. G.729 Daughter Board with sticky foam Mount the G.729 Daughter Board onto the main PWB. Push the Daughter Board carefully onto the main board. The white connector should fit well. Make sure that the sticky part sticks to the Main Board.
- Page 22 Installation Manual Figure 12. G.729 Daughter Board on the Main Board Put the 4080 IP-DECT together in the opposite way, mounting the PWB into the cabinet and assembling the cabinet. Do not forget to mount the two screws back into the rear side of the cabinet.
-
Page 23: Mounting The 4080 Ip-Dect Against A Wall
Note: Cat 7 cabling is not supported! PROCEDURE: “Mounting the 4080 IP-DECT to the wall”. Actions Remove the mounting plate from the 4080 IP-DECT cabinet. Push clip up to take mounting plate off. Figure 13. How to take the mounting plate off. - Page 24 If necessary, mount the RJ45 connector to the cable using the tool for mounting an RJ45 connector plug to a Category 5 or Category 6 cable.. Lead the cable to the 4080 IP-DECT cabinet and connect the RJ45 connector. Push the cable into the groove.
- Page 25 Installation Manual Push the cabinet onto the mounting plate. Note: When pushing the 4080 IP-DECT on to the mounting plate, make sure that you hear/feel a distinct click. This indicates that the 4080 IP-DECT is firmly mounted to the mounting plate.
-
Page 26: Leds
LED Status The 4080 IP-DECT is equipped with two LEDs. Top LED – Yellow This LED represents the status of the 4080 IP-DECT. The indications are equal to the status indication on the 4080 IP-DECT LED. LED Status (Top LED,... -
Page 27: Led Colours
Green ....: Europe/International Red ..... : North America / USA • Site Survey mode (only applicable for the 4080 IP-DECT in the Site Survey Kit.) Green ....: Europe/International Red ..... : North America / USA Blue ....: Latam Magenta .... -
Page 28: Specifications
− Relative Humidity ......: 5 . . . 95 % PoE Specifications: − Voltage at 4080 IP-DECT via PoE . : 36 ..57 V. DC − PoE Class ........: Class 2 − Power Consumption ....... : 6 Watt maximum IP Specifications: −...
